Coolant Pump - 4.6L, 5.4L and 6.8L: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fan and fan clutch. For additional information, refer to COOLING FAN - 4.6L, 5.4L AND 6.8L .
  2. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
  3. Remove the coolant pump pulley.
    1. Remove the bolts.
    2. Remove the coolant pump pulley.

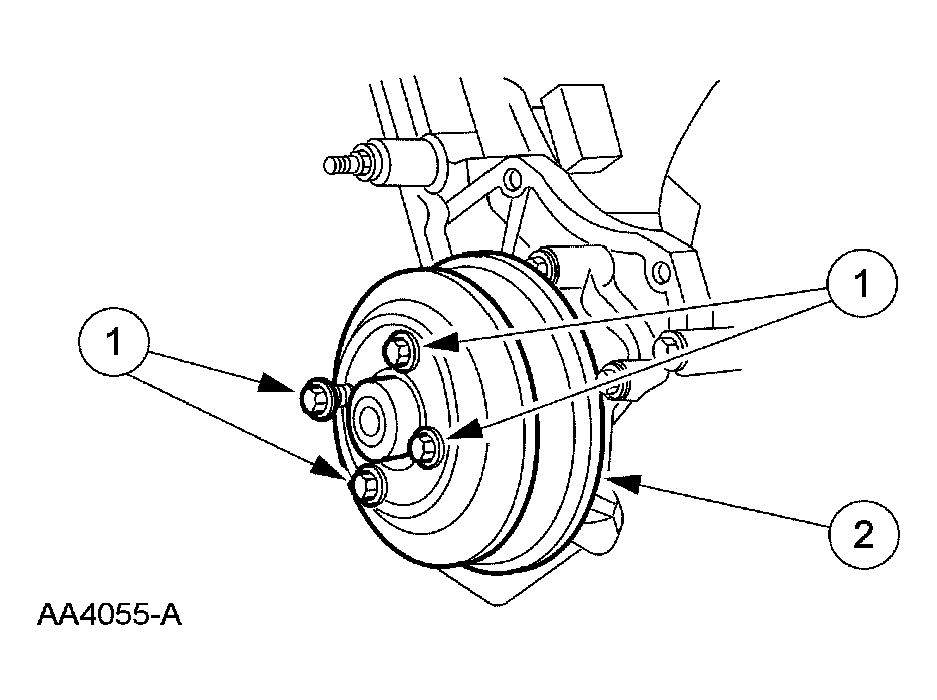

      Fig 1: Removing Coolant Pump Pulley
      G03887844Courtesy of FORD MOTOR CO.
  4. Remove the bolts.
    Fig 2: Identifying Coolant Pump Bolts
    G03885825Courtesy of FORD MOTOR CO.
  5. Remove the coolant pump from the cylinder block.
    Fig 3: Identifying Coolant Pump
    G03885759Courtesy of FORD MOTOR CO.
