Coolant Pump - 4.6L, 5.4L and 6.8L: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Always fill the cooling system with the same coolant that is present in the system. Do not mix coolant types.
  1. Install a new O-ring on the coolant pump. Coat the new O-ring with engine coolant.
    2. CAUTION: Do not rotate the coolant pump housing once the coolant pump has been positioned in the cylinder block. Damage to the O-ring seal will occur.
  2. Install the coolant pump.
    1. Lubricate the new O-ring seal using engine coolant and install the O-ring seal onto the coolant pump.
    2. Position the coolant pump into the engine block.
    3. Install the bolts.
      Fig 1: Installing Coolant Pump Retaining Bolts
      G03885979Courtesy of FORD MOTOR CO.
  3. Position the pulley onto the coolant pump and install the bolts.

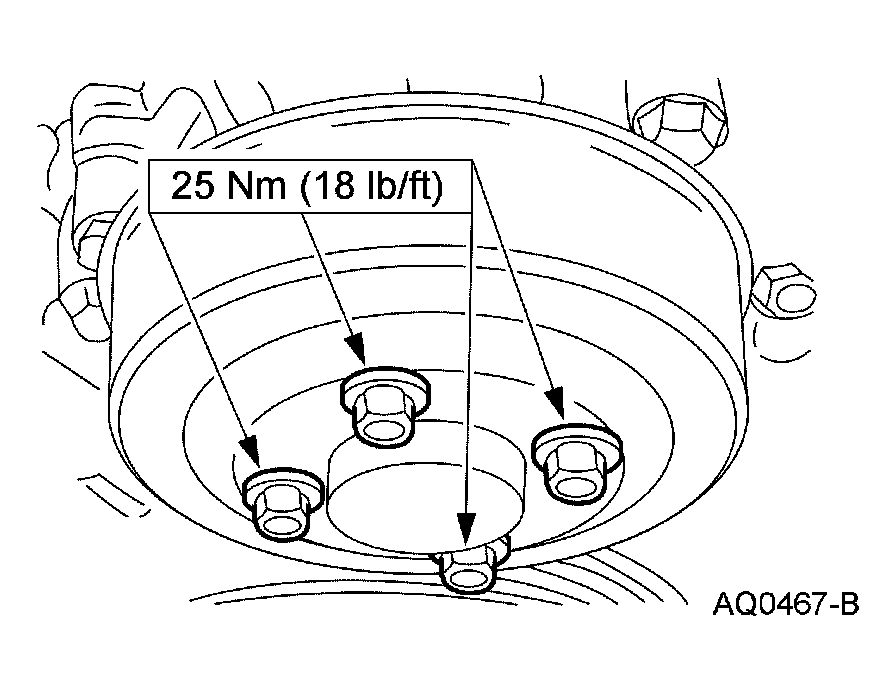

    Fig 2: Installing Pulley Onto Coolant Pump
    G03887848Courtesy of FORD MOTOR CO.
  4. Install the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
  5. Install the fan and fan clutch. For additional information, refer to RADIATOR - 4.6L, 5.4L AND 6.8L .
