Contact Assembly (CLOCKSPRING): Installation

WARNING: This page is about a different car, the 1999 Mercury Mystique, 1999 Mercury Cougar, 1999 Ford Contour, 1998 Mercury Mystique, and 1998 Ford Contour. However, it is still accessible from the selected car via links, so may be relevant.

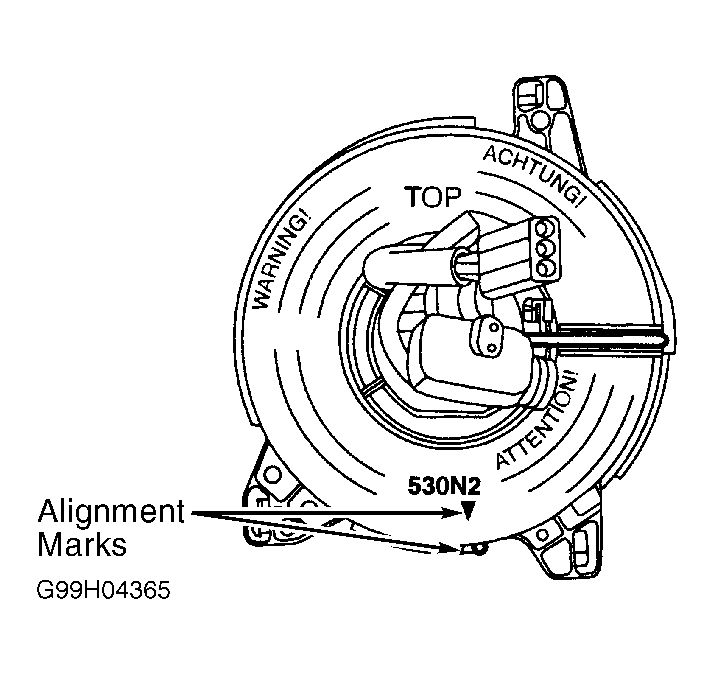

  1. Center new contact assembly before installation. See Figure and Figure . Hold contact in hand and rotate inner rotor against outer rotor counterclockwise until it stops. Rotate inner rotor clockwise about 2 3/4 turns until alignment marks are aligned and locking tab is in slot.
  2. Install new contact assembly. Ensure retaining tangs lock into position. Remove locking tab. If reinstalling original contact, remove tape after installing. Connect contact assembly wire connector to column harness. Install upper and lower shrouds.
  3. Install steering wheel. Connect contact assembly wire connector to terminal on air bag module. Install air bag module. Connect battery cables. Check AIR BAG light for system faults.
Fig 1: Exploded View Of Steering Column (Typical - Floor Shift)
G97G03959Courtesy of FORD MOTOR CO.
