Oil Pump: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Install the gears with marks pointing outward.
    Fig 1: Identifying Inner And Outer Oil Pump Drive Rotors With Alignment Marks
    G03887281Courtesy of FORD MOTOR CO.
  1. Lubricate the inner gear with lithium assembly grease and install onto the crankshaft. Lubricate the outer gear with lithium assembly grease and mesh with the inner gear rotor in the oil pump housing. Wipe off the excess assembly grease.
    2. NOTE: Install a new O-ring seal.

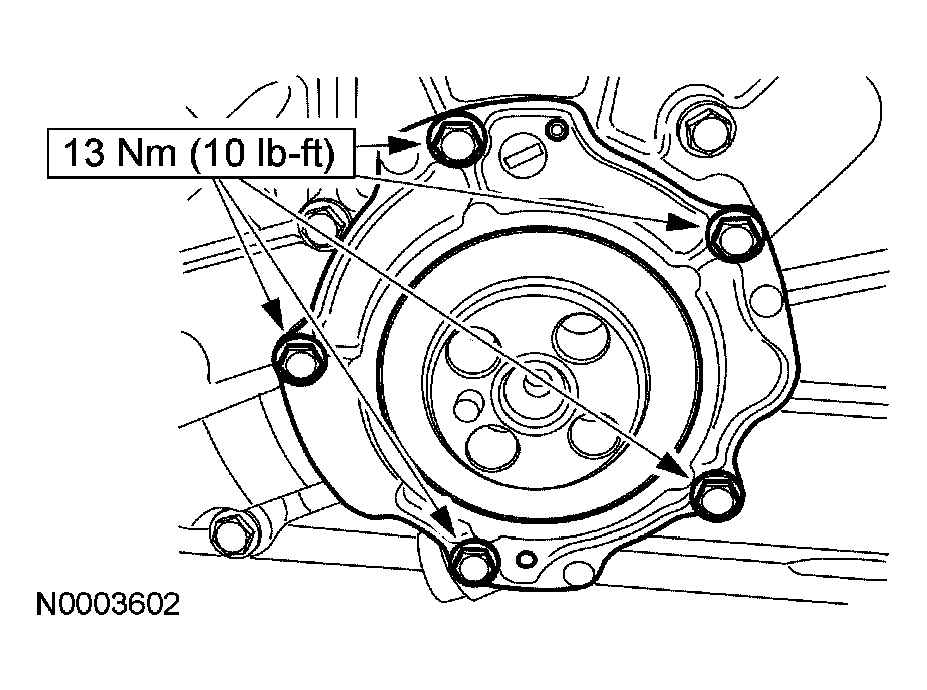

    Fig 2: Installing Gerotor Cover Bolts
    G03887283Courtesy of FORD MOTOR CO.
  2. Install the gerotor cover and bolts.
  3. Install the crankshaft front oil seal. For additional information, refer to CRANKSHAFT FRONT SEAL .
