Oil Pan - Upper: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Install a new press-in-place gasket.

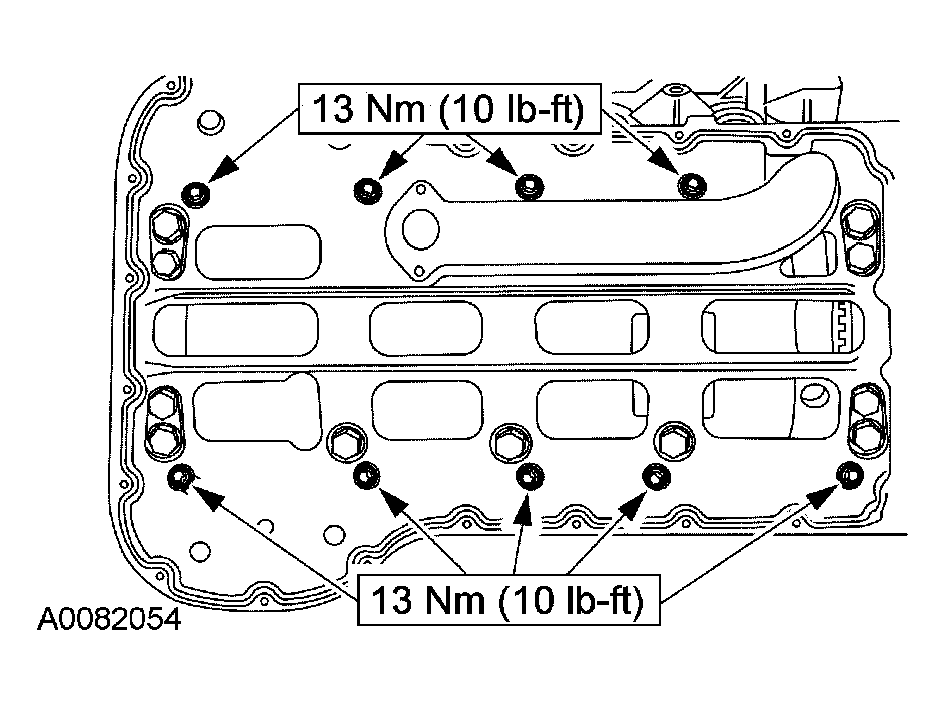

    Fig 1: Installing Upper Oil Pan And Bolts
    G03887279Courtesy of FORD MOTOR CO.
  1. Install the upper oil pan and bolts.
  2. Install the lower oil pan. For additional information, refer to OIL PAN - LOWER .
