Crankshaft Pulley: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

    CAUTION: To prevent engine damage, you must always install four new bolts when installing the vibration damper.
    NOTE: Do not use anti-seize compounds, grease or any lubricants. Lubricants have an adverse effect on the torque results.
  1. Install the crankshaft vibration damper and bolts and tighten in the following sequence, in three stages:
    • Stage 1: Tighten in the sequence shown.
    • Stage 2: Tighten to 68 Nm (50 lb-ft).
    • Stage 3: Tighten an additional 90 degrees.

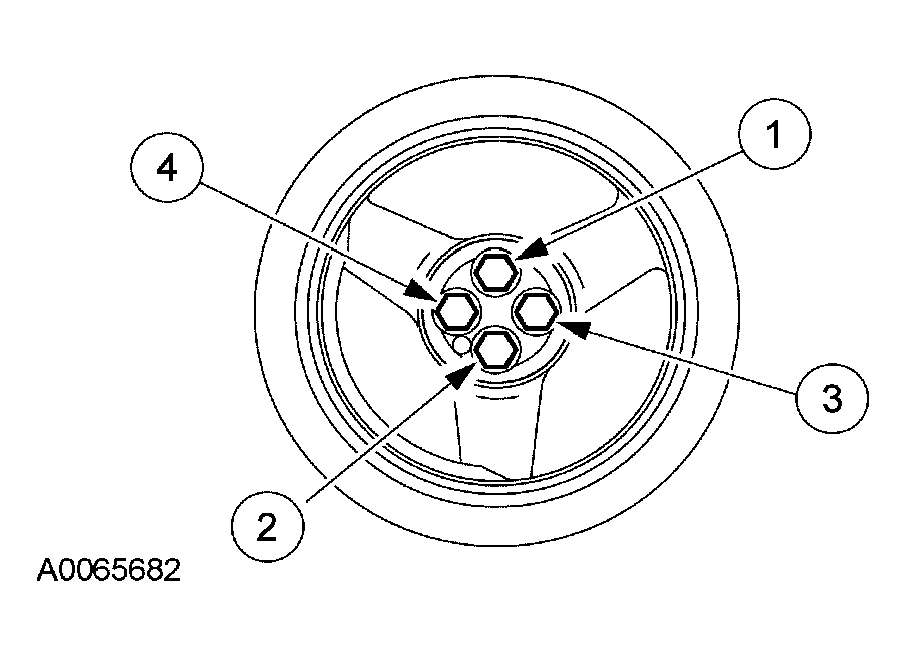

      Fig 1: Installing Crankshaft Vibration Damper Bolts
      G03887214Courtesy of FORD MOTOR CO.
  2. Install the accessory drive belt.
    Fig 2: Rotating Accessory Drive Belt Tensioner Clockwise
    G03887093Courtesy of FORD MOTOR CO.

    3. Vehicles with dual generator

  3. Install the dual generator pulley and bolts.
    Fig 3: Installing Dual Generator Pulley Bolts
    G03887216Courtesy of FORD MOTOR CO.
  4. Install the dual generator accessory drive belt.
    Fig 4: Rotating Drive Belt Tensioner Clockwise
    G03887086Courtesy of FORD MOTOR CO.

    5. All vehicles

  5. Install the cooling fan stator. For additional information, refer to ENGINE COOLING .
  6. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
