Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft vibration damper. For additional information, refer to CRANKSHAFT PULLEY .
  2. Punch two holes in the seal.
    Fig 1: Punching Holes In Seal
    G03887244Courtesy of FORD MOTOR CO.
  3. Using the special tool, remove the crankshaft seal.

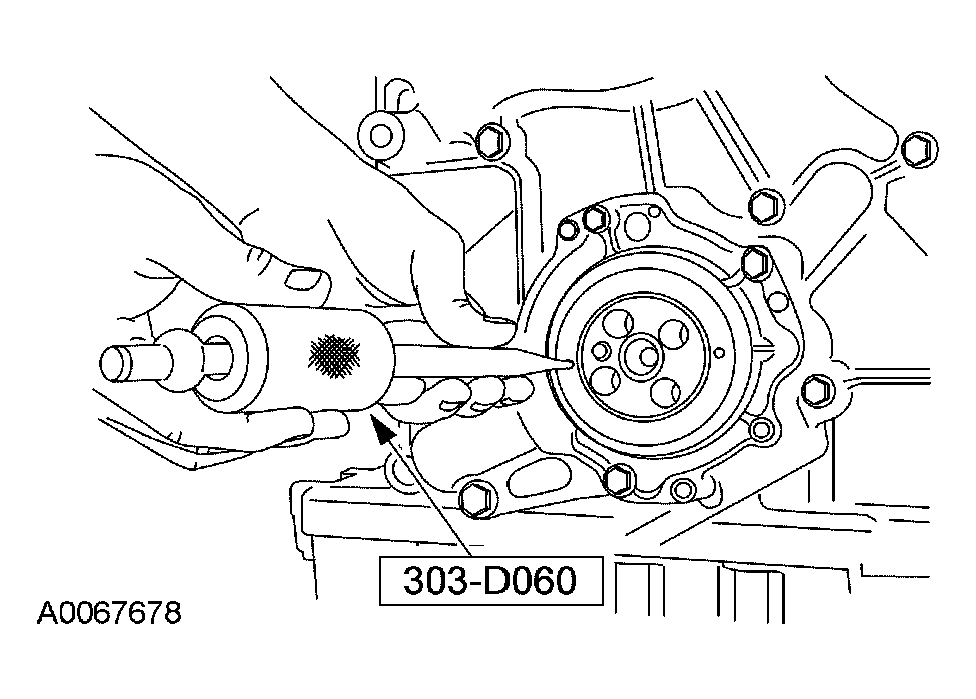

    Fig 2: Removing Crankshaft Seal
    G03887245Courtesy of FORD MOTOR CO.
    4. NOTE: Production engine will not have a wear sleeve.

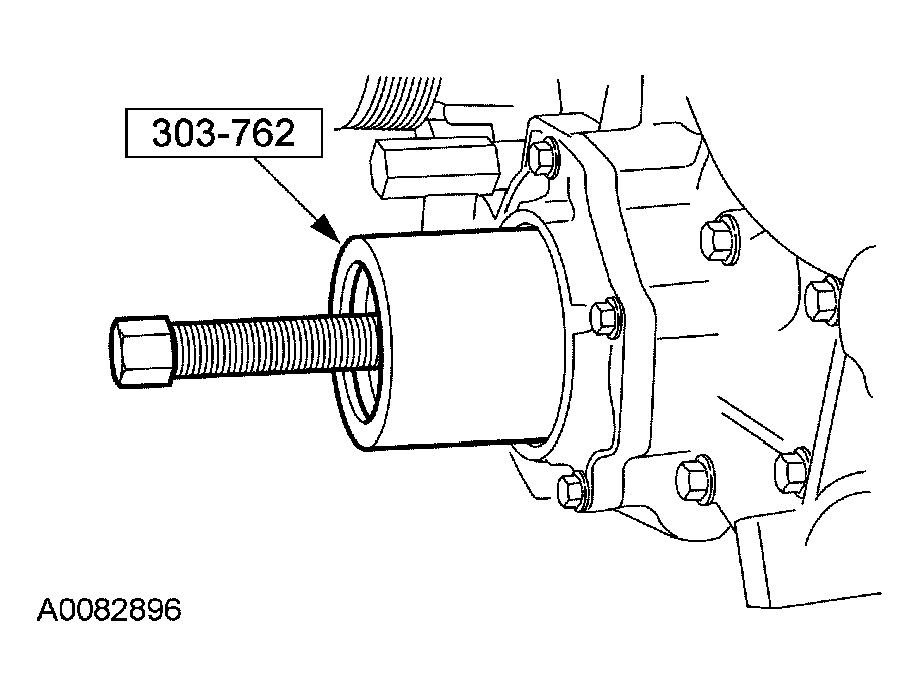

    Fig 3: Removing Crankshaft Damper Wear Sleeve
    G03887246Courtesy of FORD MOTOR CO.
  4. If equipped, using the special tool, remove the crankshaft damper wear sleeve.
