Valve Cover - RH: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Apply instant gel adhesive completely around the gasket groove in the valve cover. Install the new valve cover gasket.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to clean the sealing surfaces.

NOTE: If the valve cover is not secured within four minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Follow the directions on the packaging. Failure to follow this procedure can cause future oil leakage.

Fig 1: Identifying Silicone Gasket And Sealant Application Points

Courtesy of FORD MOTOR CO.

Apply a bead of silicone gasket and sealant in two places where the engine front cover meets the cylinder head.
Position the valve cover and the valve cover gasket on the cylinder head and loosely install the bolts.

Fig 2: Identifying RH Valve Cover Bolts
Courtesy of FORD MOTOR CO.

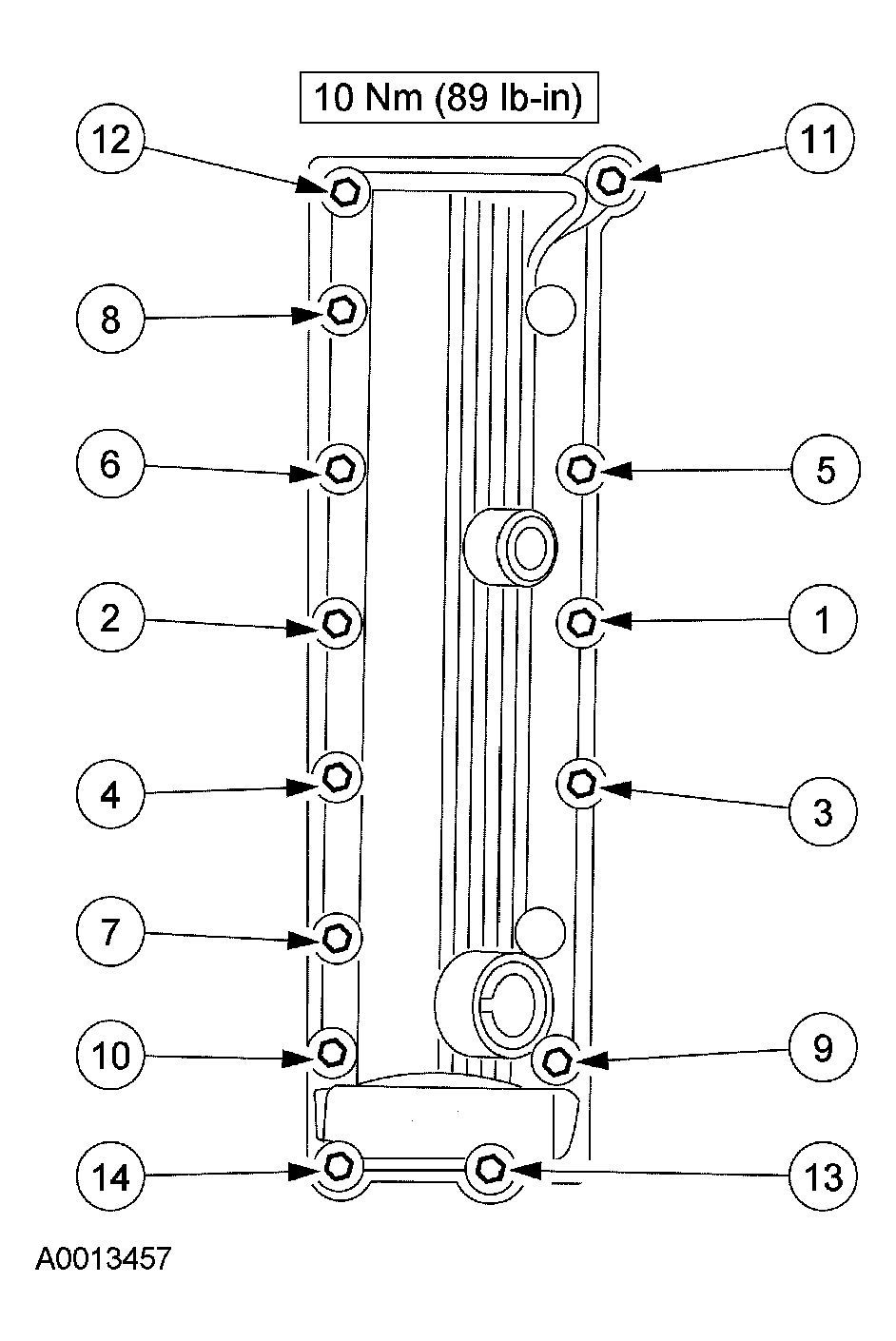

Tighten the bolts in the sequence shown in Fig 3.

Fig 3: Tightening Bolts In Sequence
Courtesy of FORD MOTOR CO.
Install the five RH ignition coils and the bolts.

Fig 4: Installing Five RH Ignition Coils And Bolts
Courtesy of FORD MOTOR CO.
Position the fuel charging wiring harness on to the engine.

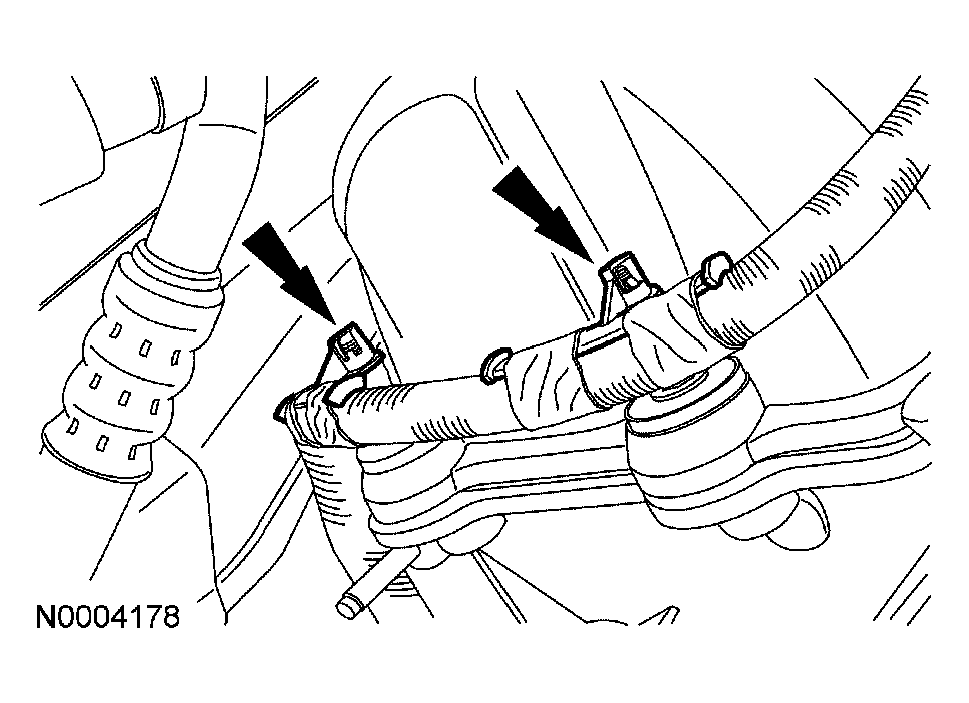

NOTE: The red clip must be pushed in after connecting the electrical connector.

Fig 5: Electronic Throttle Body (TB) Electrical Connector

Courtesy of FORD MOTOR CO.

Connect the electronic TB electrical connector.
Position the RH fuel charge wiring harness and install the stud bolts.

Fig 6: Installing Stud Bolts
Courtesy of FORD MOTOR CO.
Position back the transmission fluid indicator and tube. Install the retaining nut.

Fig 7: Installing Nut
Courtesy of FORD MOTOR CO.
Connect the five fuel injector electrical connectors.

Fig 8: Identifying Fuel Injector Electrical Connector
Courtesy of FORD MOTOR CO.

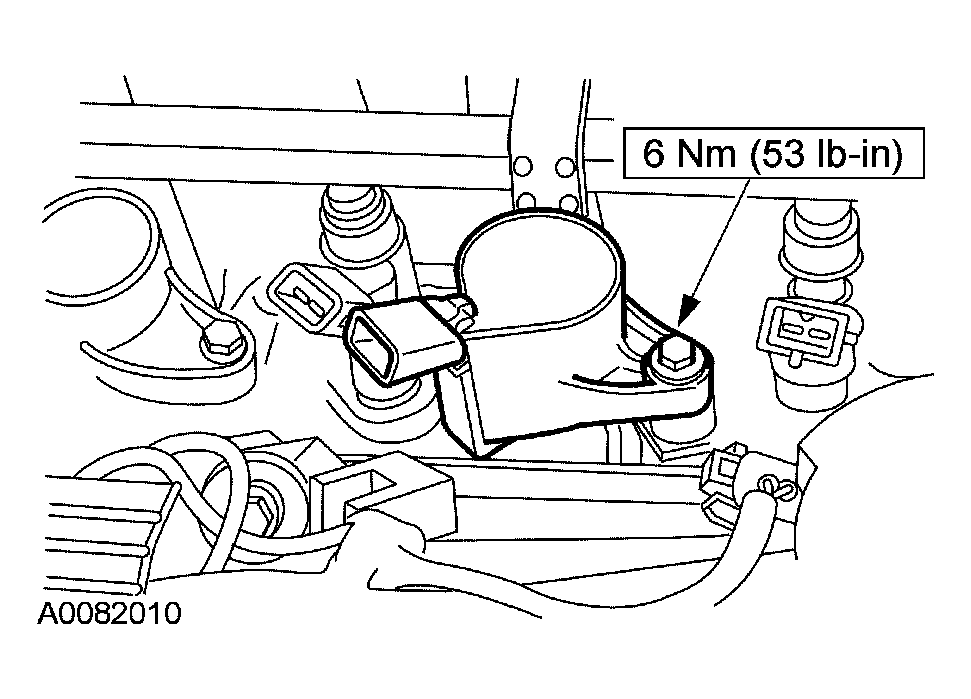

Connect the five ignition coil electrical connectors.

Fig 9: Identifying Ignition Coil Electrical Connector
Courtesy of FORD MOTOR CO.
Install the transmission fluid filler tube nut.

Fig 10: Installing Transmission Fluid Filler Tube Nut
Courtesy of FORD MOTOR CO.
Connect the A/C compressor and the CKP sensor connectors and install a tie-strap.

Fig 11: Connecting A/C Compressor And CKP Sensor Connectors
Courtesy of FORD MOTOR CO.
Position the splash shield and install the pushpin retainers.

Fig 12: Identifying Pushpin Retainers And Splash Shield
Courtesy of FORD MOTOR CO.
Connect the wiring harness retainers to the RH valve cover studs.

Fig 13: Connecting Wiring Harness Retainers
Courtesy of FORD MOTOR CO.
Install the PCV valve by rotating clockwise and connect the PCV tube and electrical connector.

Fig 14: Installing PCV Valve
Courtesy of FORD MOTOR CO.
Connect the oil fill tube to the RH valve cover.

Fig 15: Connecting Oil Fill Tube To RH Valve Cover
Courtesy of FORD MOTOR CO.
Install the oil fill tube support bracket bolt.

Fig 16: Installing Oil Fill Tube Support Bracket Bolt
Courtesy of FORD MOTOR CO.
Position the mounting bracket, ground strap and install the nut. Connect the electrical connector retainers to the support bracket.

Fig 17: Positioning Mounting Bracket
Courtesy of FORD MOTOR CO.
Connect the electrical connectors.

Fig 18: Identifying Engine Wiring Harness Electrical Connectors
Courtesy of FORD MOTOR CO.
Install the engine air cleaner and the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Install the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
