Intake Manifold Assembly: Disassembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

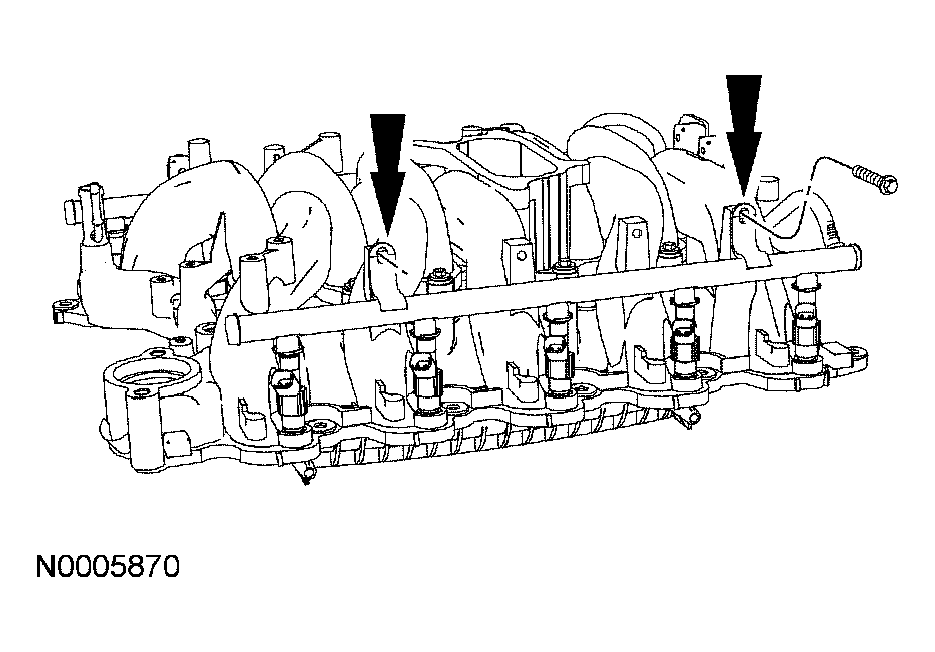

Fig 1: Removing Fuel Rail Bolts

Courtesy of FORD MOTOR CO.

Remove the four fuel rail bolts.
Remove the bolts from the fuel pressure regulator (FPR).
- Remove the fuel rail and injectors as an assembly.

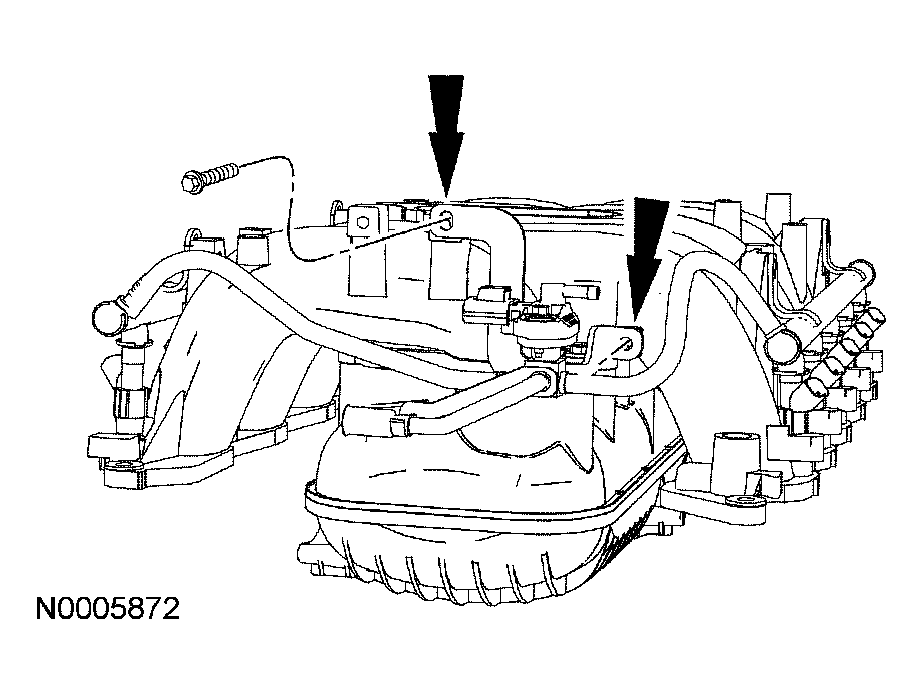

  Fig 2: Removing Fuel Rail And Injectors
  Courtesy of FORD MOTOR CO.
Remove the fuel injectors from the fuel rail.

Fig 3: Removing Fuel Injectors
Courtesy of FORD MOTOR CO.
Remove and discard the O-ring seals from each fuel injector.

Fig 4: Removing O-Ring Seals
Courtesy of FORD MOTOR CO.
Separate the upper and lower intake manifolds.
- Remove the bolts.
- Discard the intake manifold gasket.

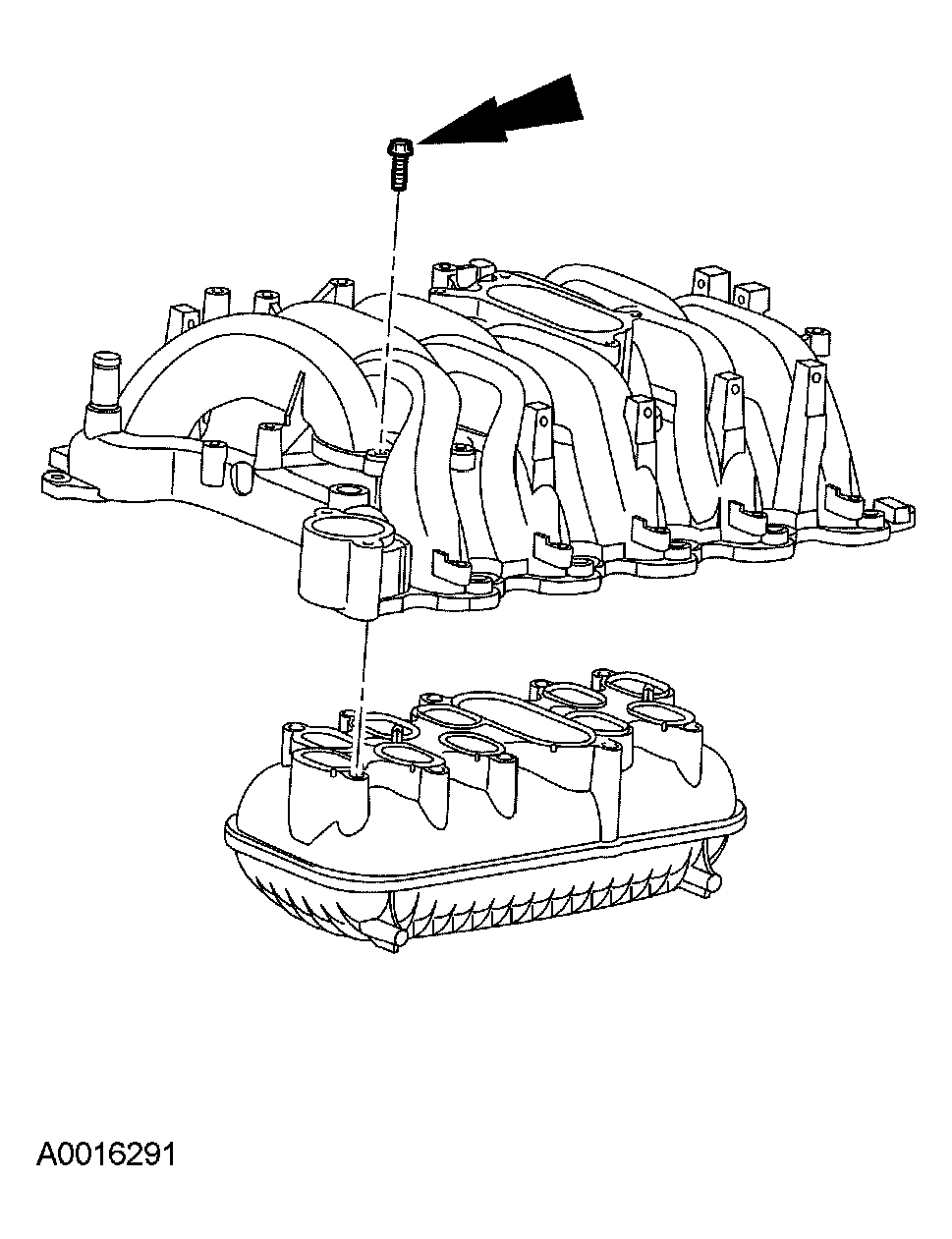

  Fig 5: Separating Upper And Lower Intake Manifolds
  Courtesy of FORD MOTOR CO.
Using a metal surface prep, clean and inspect the upper and lower manifold internal passengers and mating surfaces.
Allow the upper and lower intake manifolds to dry completely.
