Intake Manifold Assembly: Assembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Position a new lower intake manifold gasket and the upper intake manifold on the lower intake manifold and loosely install the bolts.

Fig 1: Installing Bolts
Courtesy of FORD MOTOR CO.

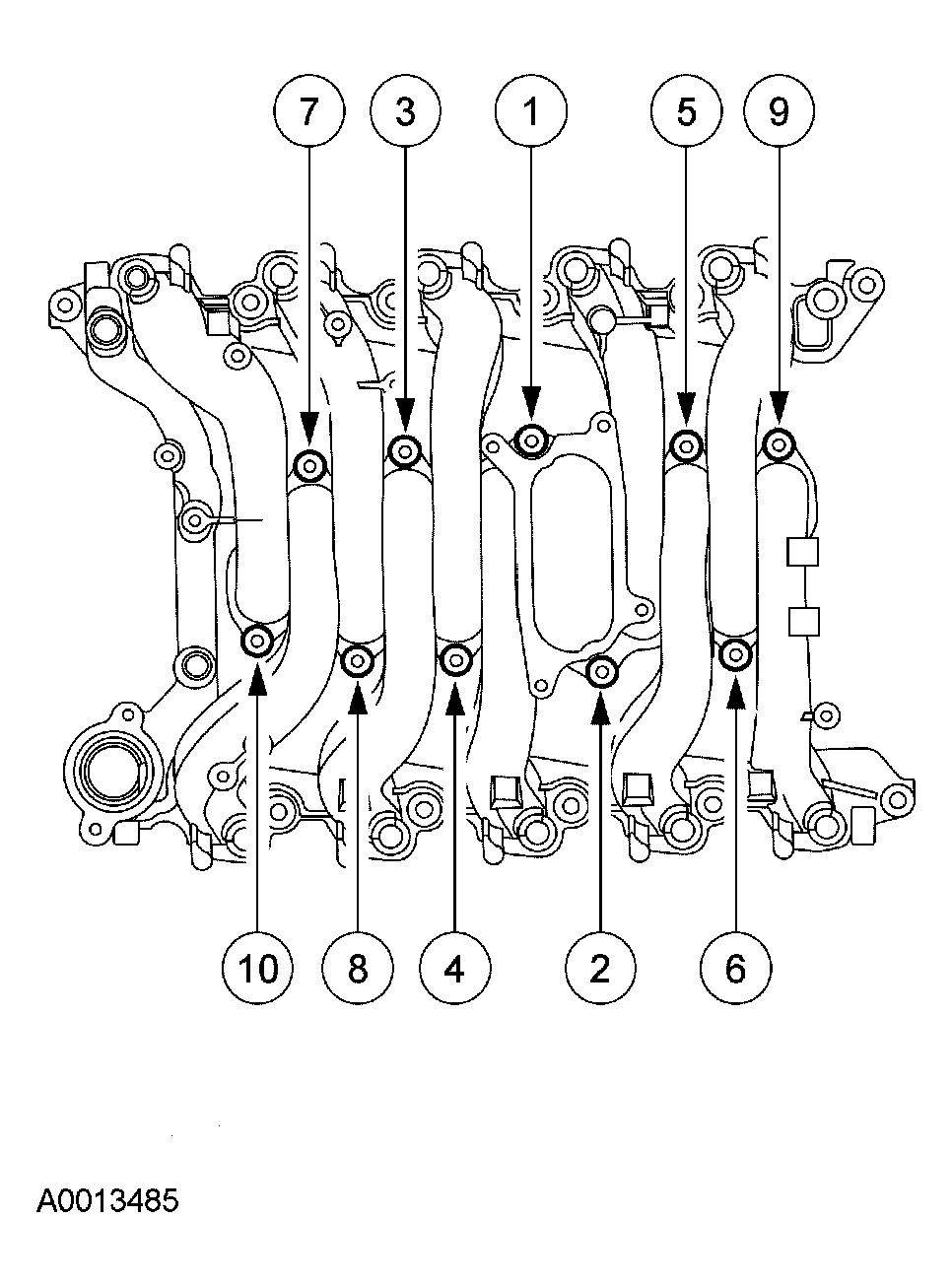

Tighten the bolts in two stages, using the sequence shown in Fig 2.
- Stage 1: Tighten to 2 Nm (18 lb-in).
- Stage 2: Tighten to 10 Nm (89 lb-in).

  Fig 2: Tightening Bolts
  Courtesy of FORD MOTOR CO.
Install new O-ring seals on each fuel injector.

Fig 3: Installing New O-Ring Seals
Courtesy of FORD MOTOR CO.

CAUTION: Check for fuel leakage after installation is complete.

NOTE: Lubricate the new O-ring seals with clean engine oil to aid installation.

Fig 4: Installing Fuel Injectors Into Fuel Rail

Courtesy of FORD MOTOR CO.

Install the fuel injectors into the fuel rail.
Position the fuel rail. Install the bolts for the FPR sensor.

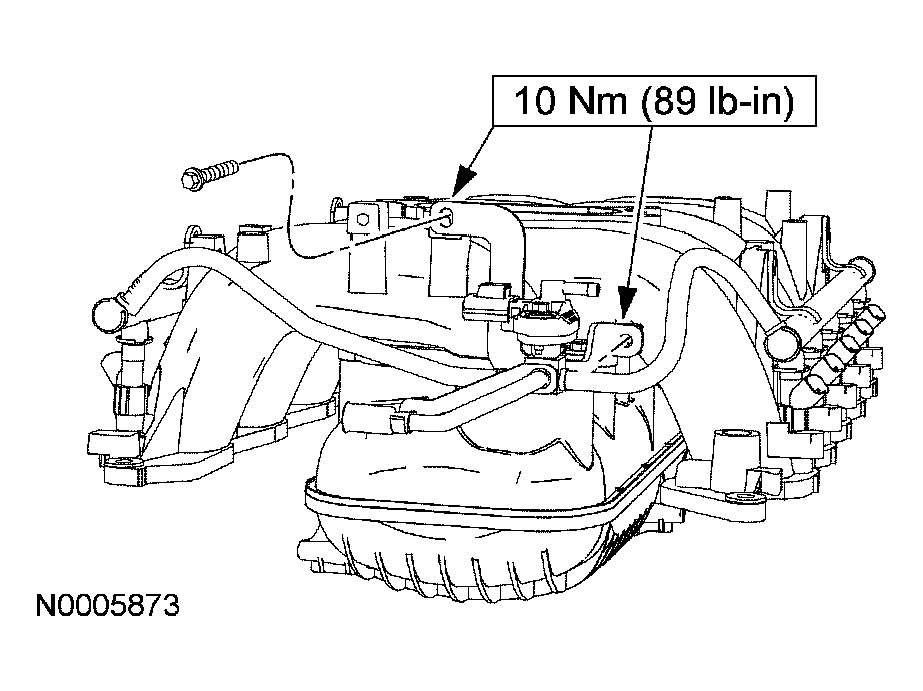

Fig 5: Installing Bolts
Courtesy of FORD MOTOR CO.

NOTE: LH side shown, RH similar.

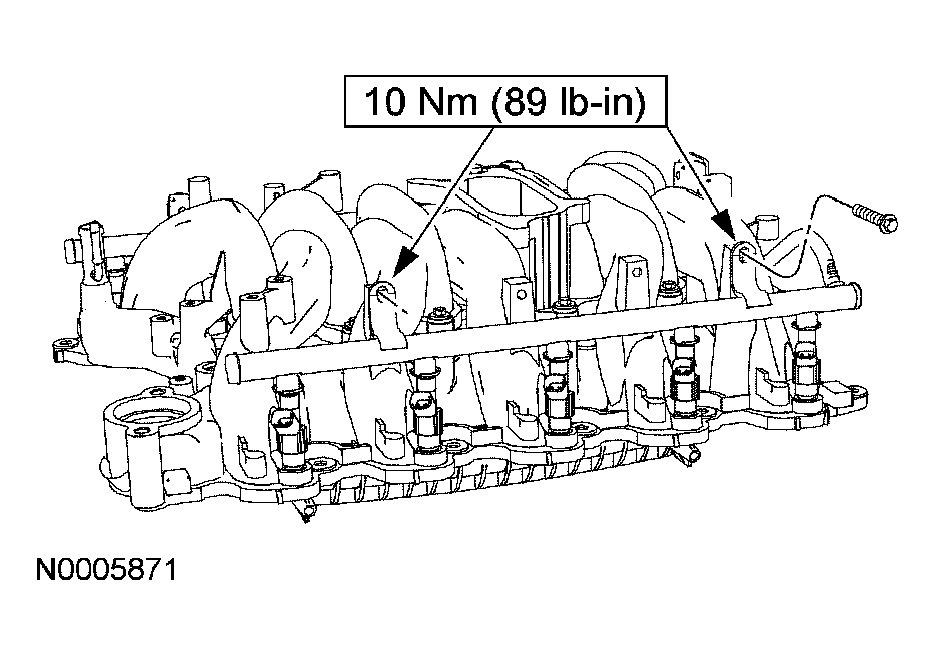

Fig 6: Installing Fuel Rail Bolts

Courtesy of FORD MOTOR CO.

Install the four fuel rail bolts.
