Engine Component View

The concept of modularity allows engine designs to share concepts and hardware. The following illustrations represent the modular V10 engine. The four modules are:

• intake module
• cylinder head module (RH)
• cylinder head module (LH)
• lower engine module

Due to the modular design, most out-of-vehicle repairs benefit in reduction of time and labor needed to repair the engine.

The basic engine components consist of:

• single overhead camshafts
• two valves per cylinder
• balance shaft
• sequential multiport fuel injection (SFI)
• aluminum cylinder heads
• cast-iron, 90-degree V-cylinder block
• individual ignition coils for each spark plug
• two-piece intake manifold system
• composite-material lower intake manifold
• large-bore throttle body

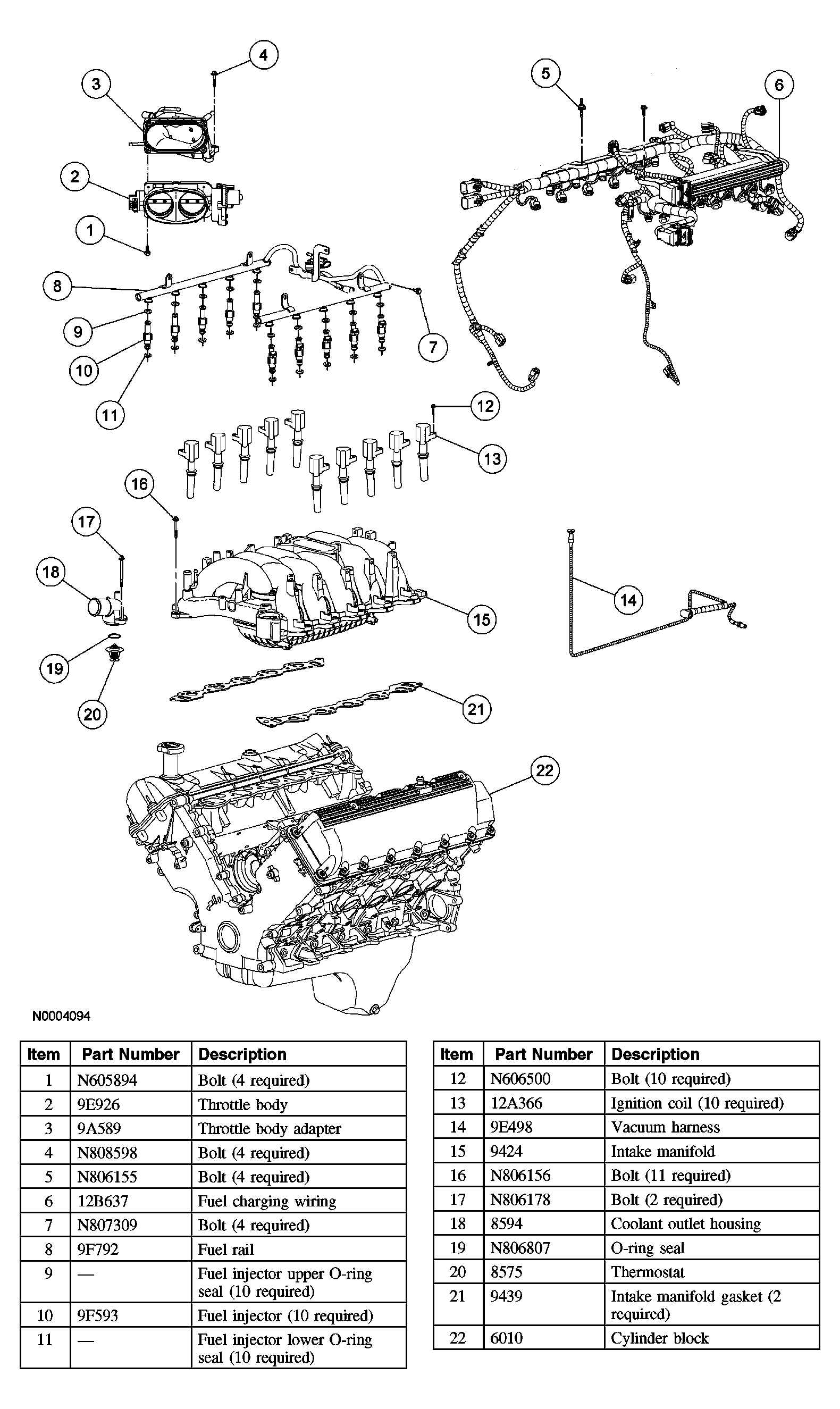

Fig 1: Identifying Engine Intake Components

Courtesy of FORD MOTOR CO.

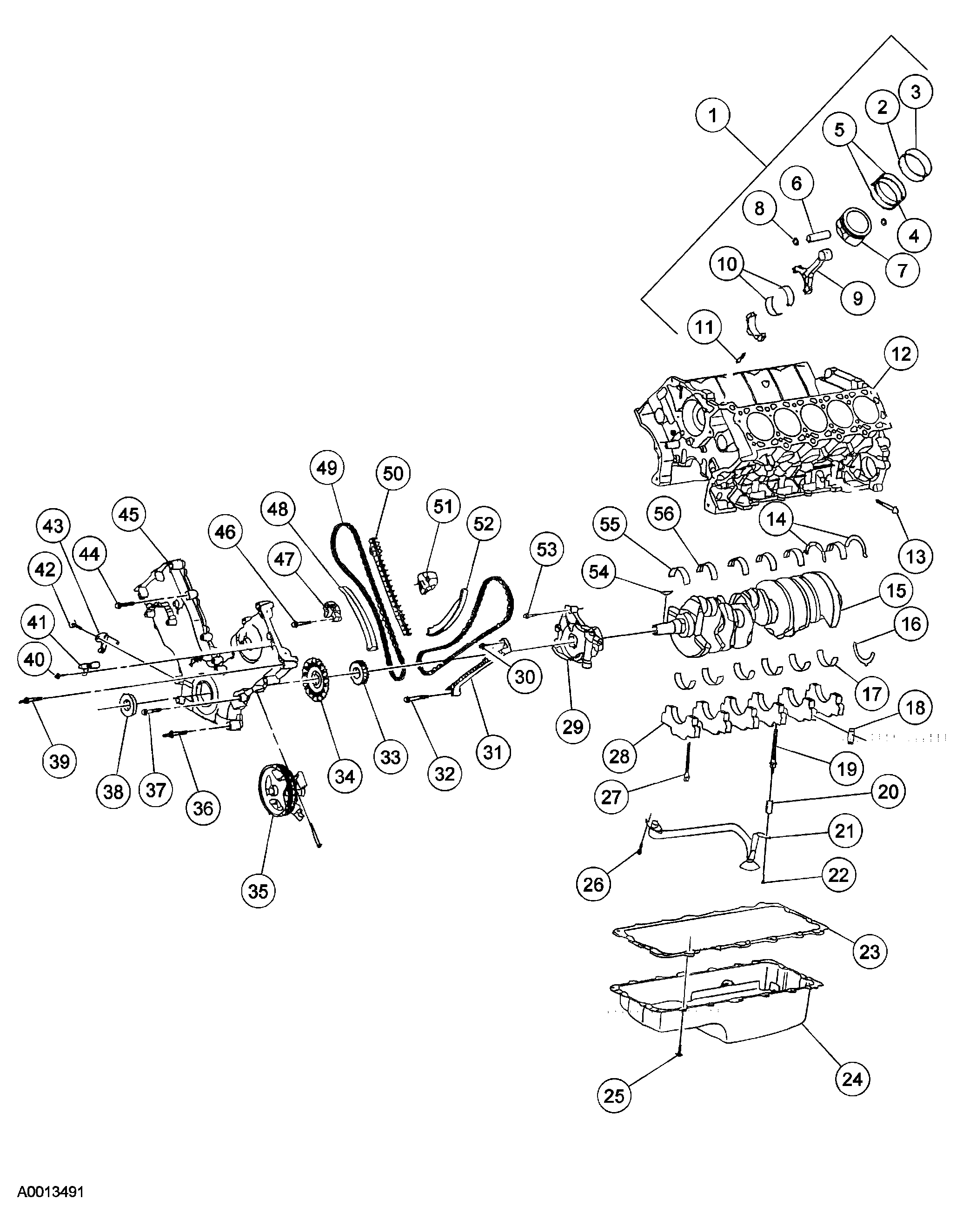

Fig 2: Identifying Low End Components (1 Of 2)

Courtesy of FORD MOTOR CO.

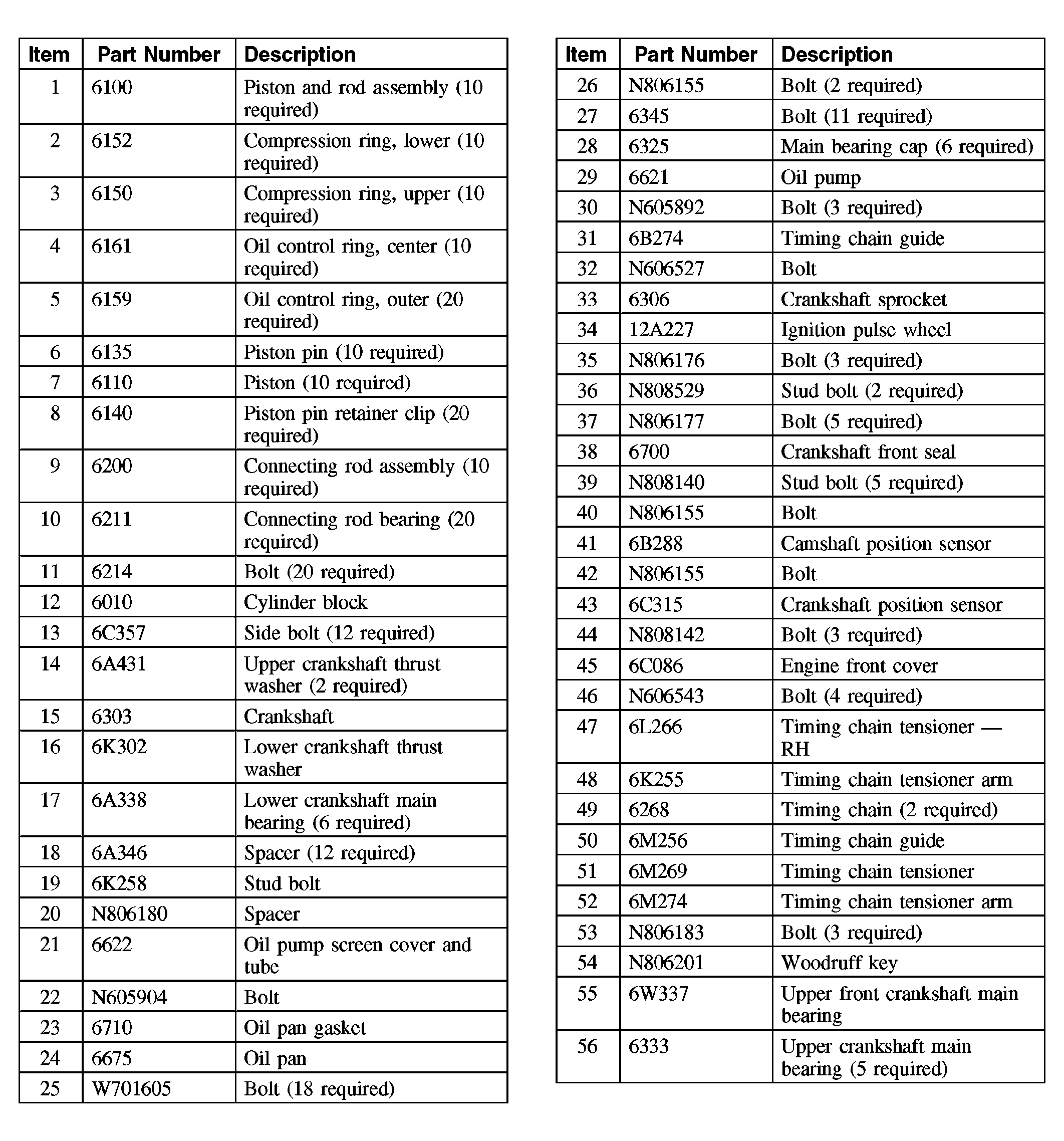

Fig 3: Identifying Low End Components (2 Of 2)

Courtesy of FORD MOTOR CO.

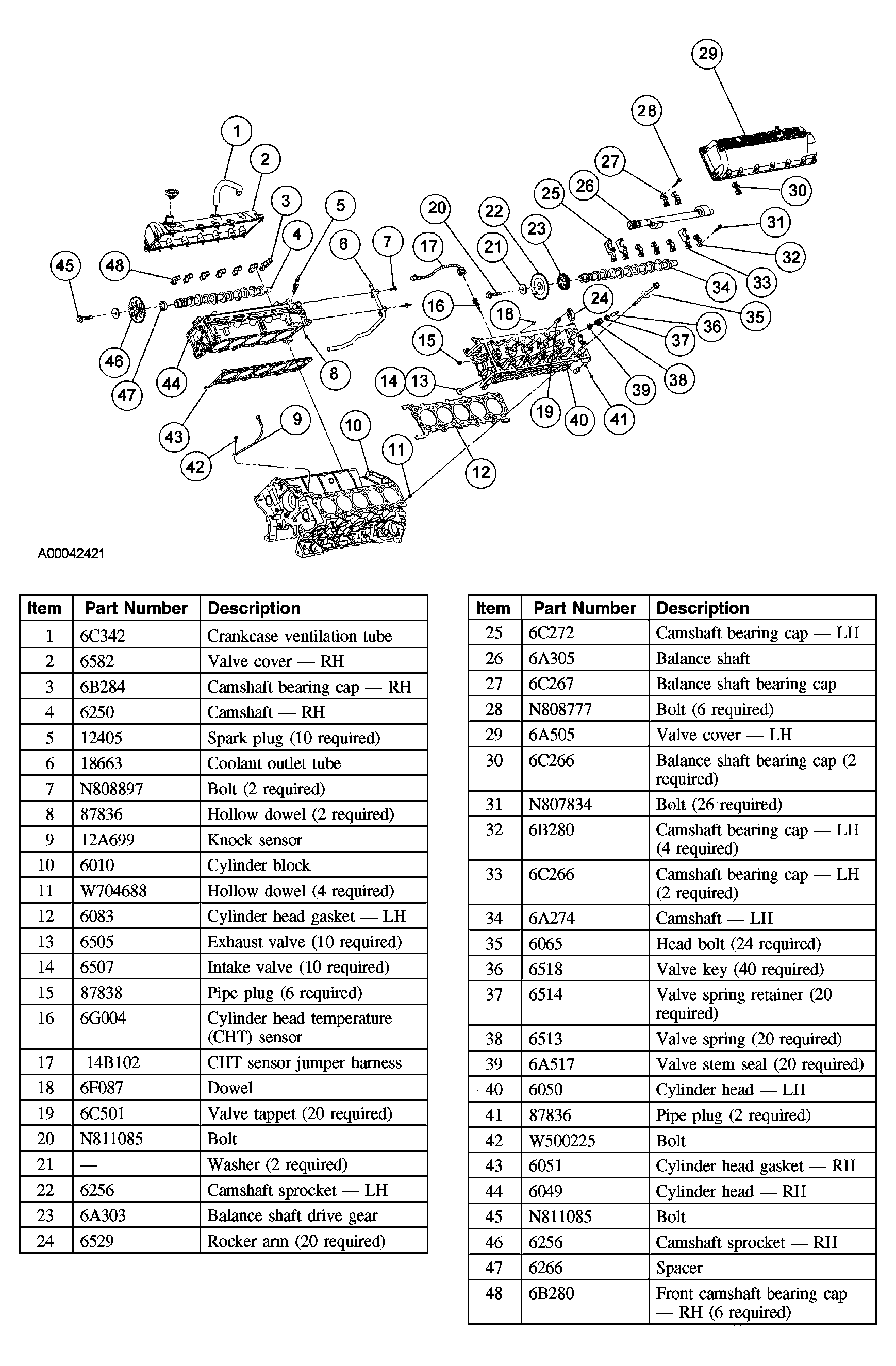

Fig 4: Identifying Upper End Components

Courtesy of FORD MOTOR CO.

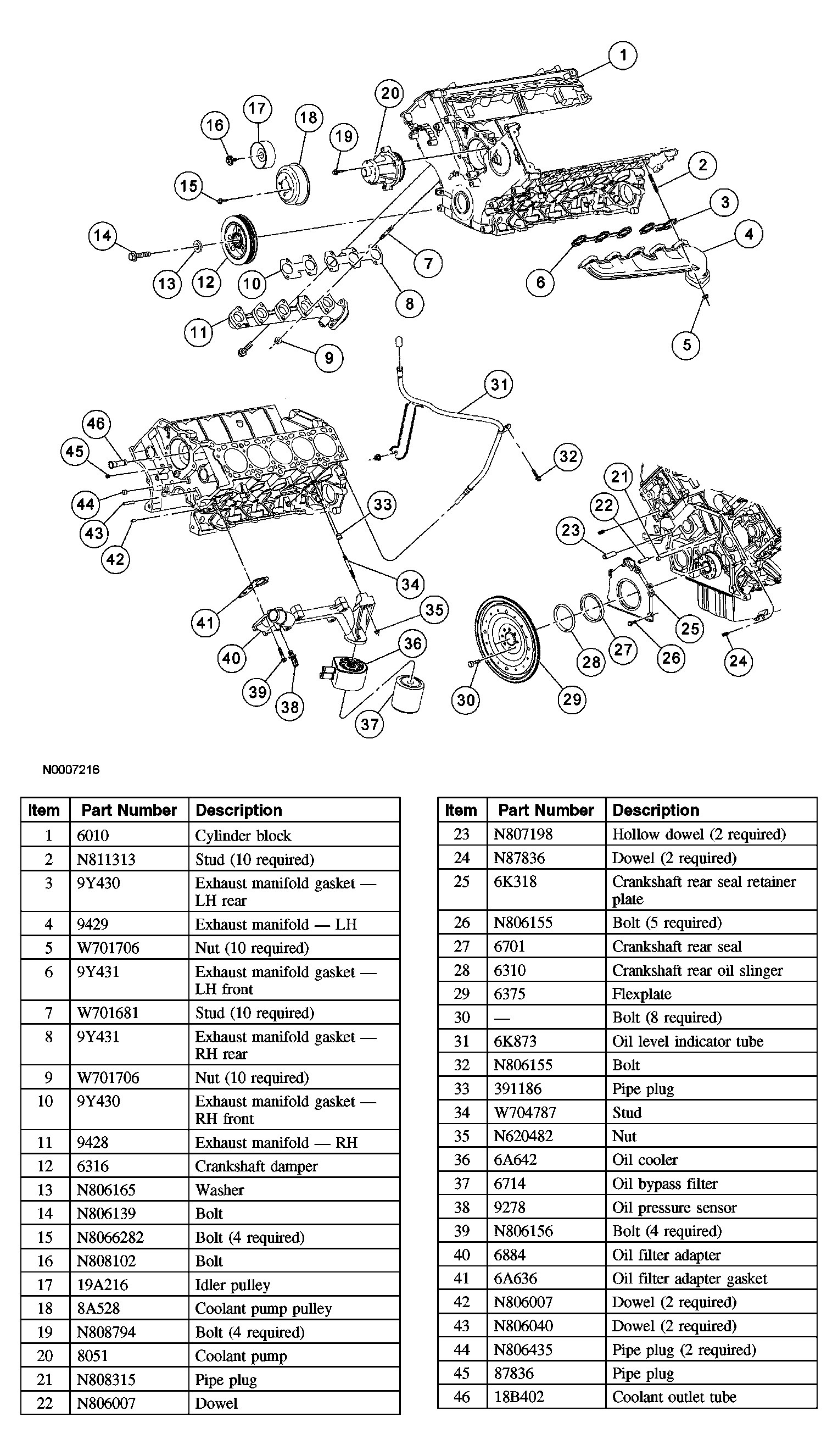

Fig 5: Identifying Major Exterior Components

Courtesy of FORD MOTOR CO.
