Valve Seals: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The valve stem seal must be bottomed on the valve seat.
    NOTE: Make sure that the garter spring is present in the valve stem seal.

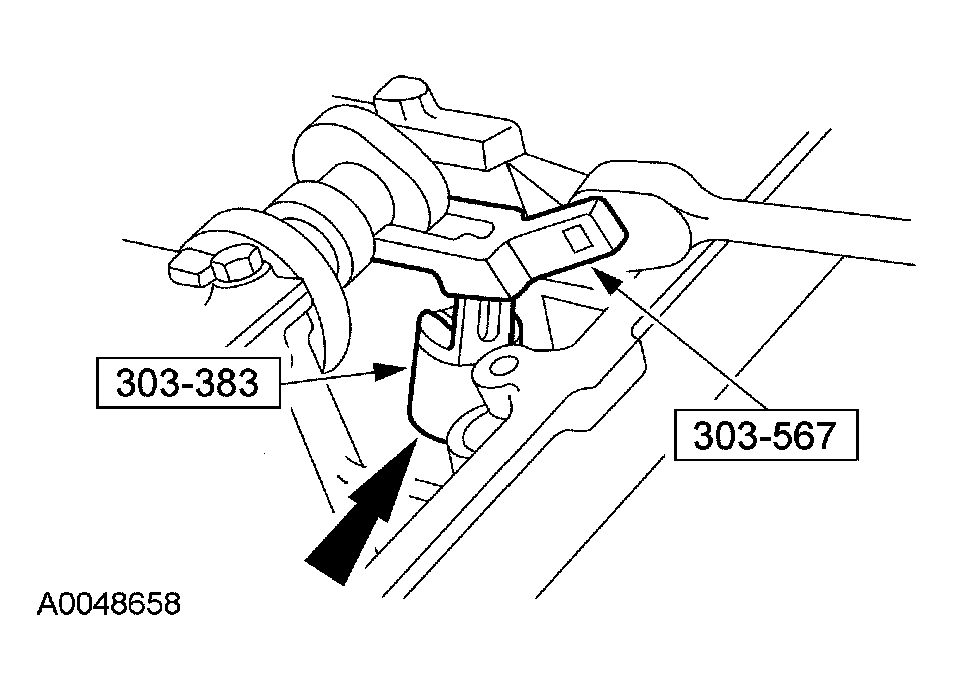

    Fig 1: Installing Valve Stem Seals
    G03886796Courtesy of FORD MOTOR CO.
  1. Use the special tools to install the valve stem seals.
  2. Install the valve springs. For additional information, refer to VALVE SPRINGS .
