Oil Level Indicator and Tube: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    All Vehicles

  1. Remove the engine air cleaner (ACL) and the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  2. Remove the LH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD - LH .

    3. Vehicles with 4.6L engine

  3. Remove the oil level indicator and the retaining nut.

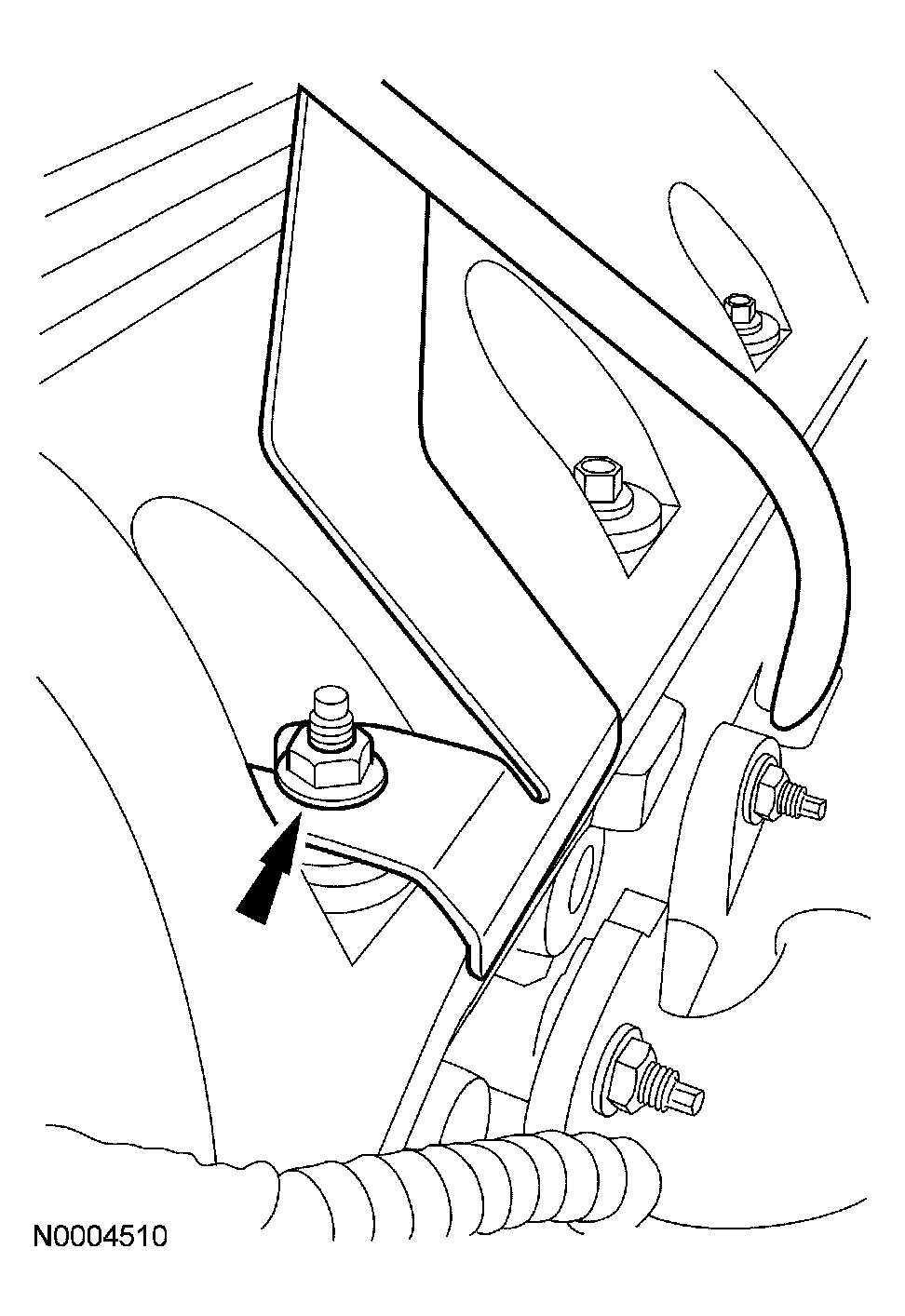

    Fig 1: Removing Oil Level Indicator Retaining Nut
    G03885200Courtesy of FORD MOTOR CO.

    4. Vehicles with 5.4L engine

  4. Remove the oil level indicator and the retaining nut.

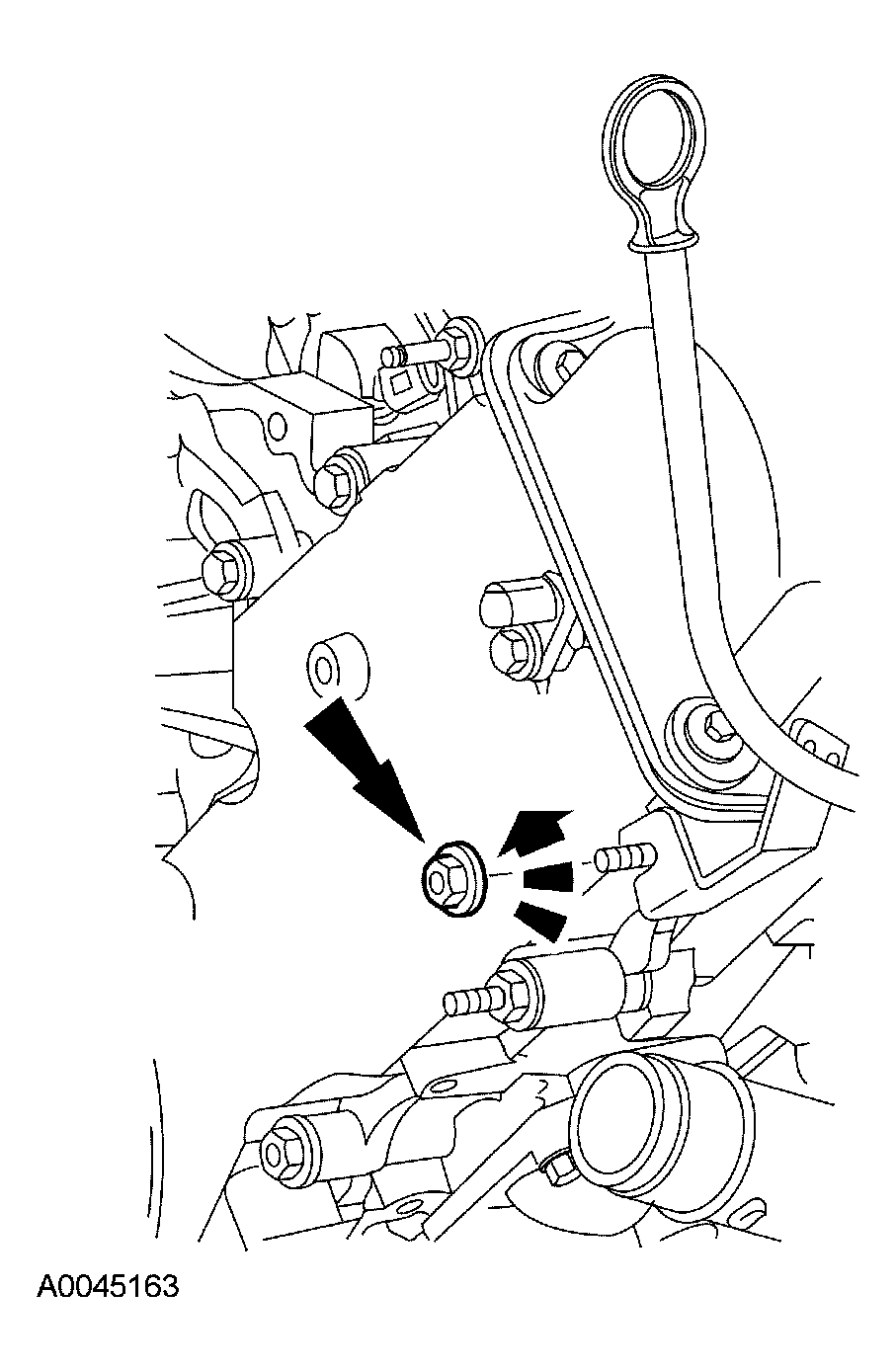

    Fig 2: Removing Oil Level Indicator Retaining Nut
    G03885438Courtesy of FORD MOTOR CO.

    5. All Vehicles

    NOTE: 5.4L shown; 4.6L similar.
  5. Remove the bolt and the oil level tube.
    • Remove and discard the O-ring seal.

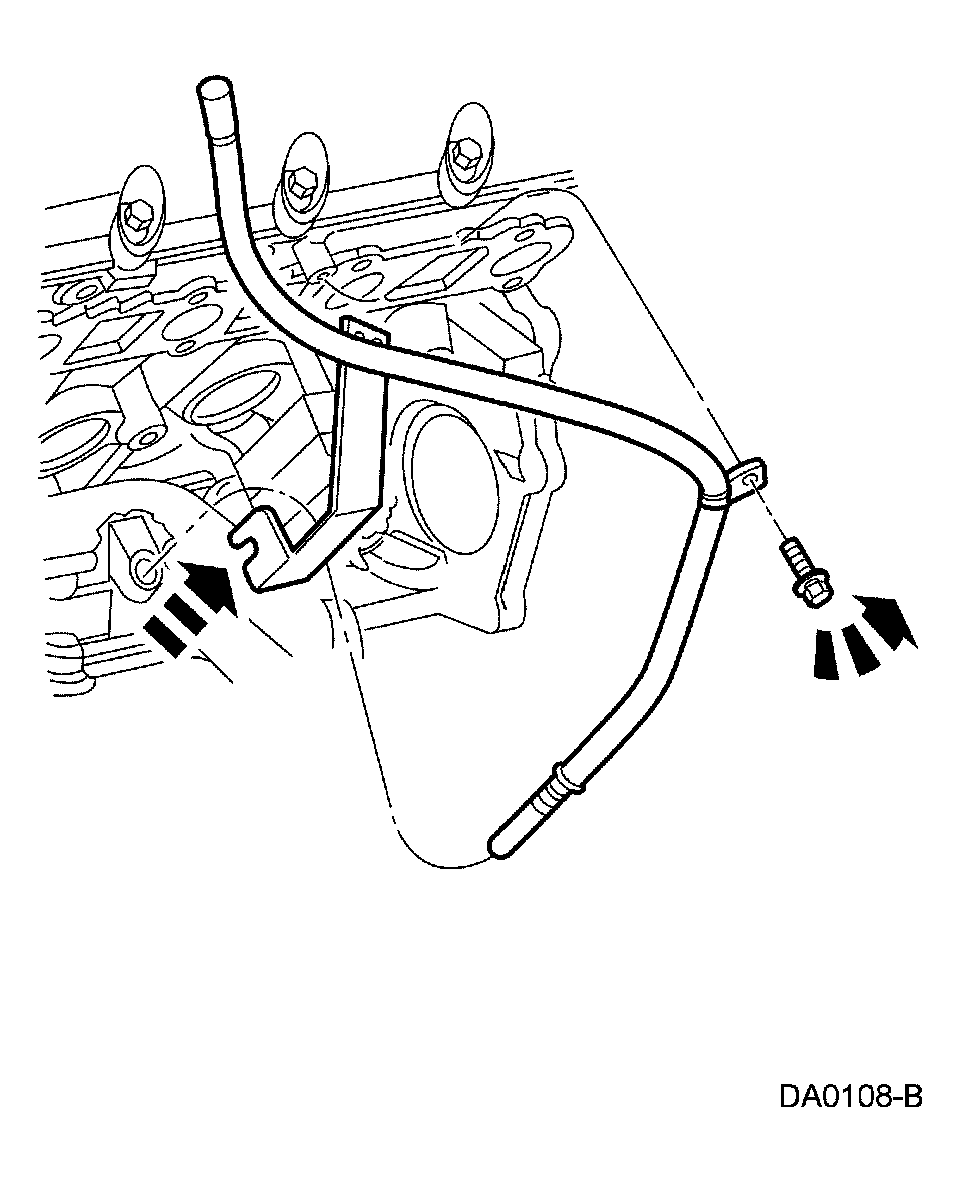

      Fig 3: Removing Oil Level Tube
      G03885439Courtesy of FORD MOTOR CO.
  6. Inspect the oil level indicator tube for damage.
