Oil Level Indicator and Tube: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    All Vehicles

    NOTE: Install a new O-ring seal.
  1. Lubricate the new O-ring seal with clean engine oil.
    2. NOTE: 5.4L shown; 4.6L similar.

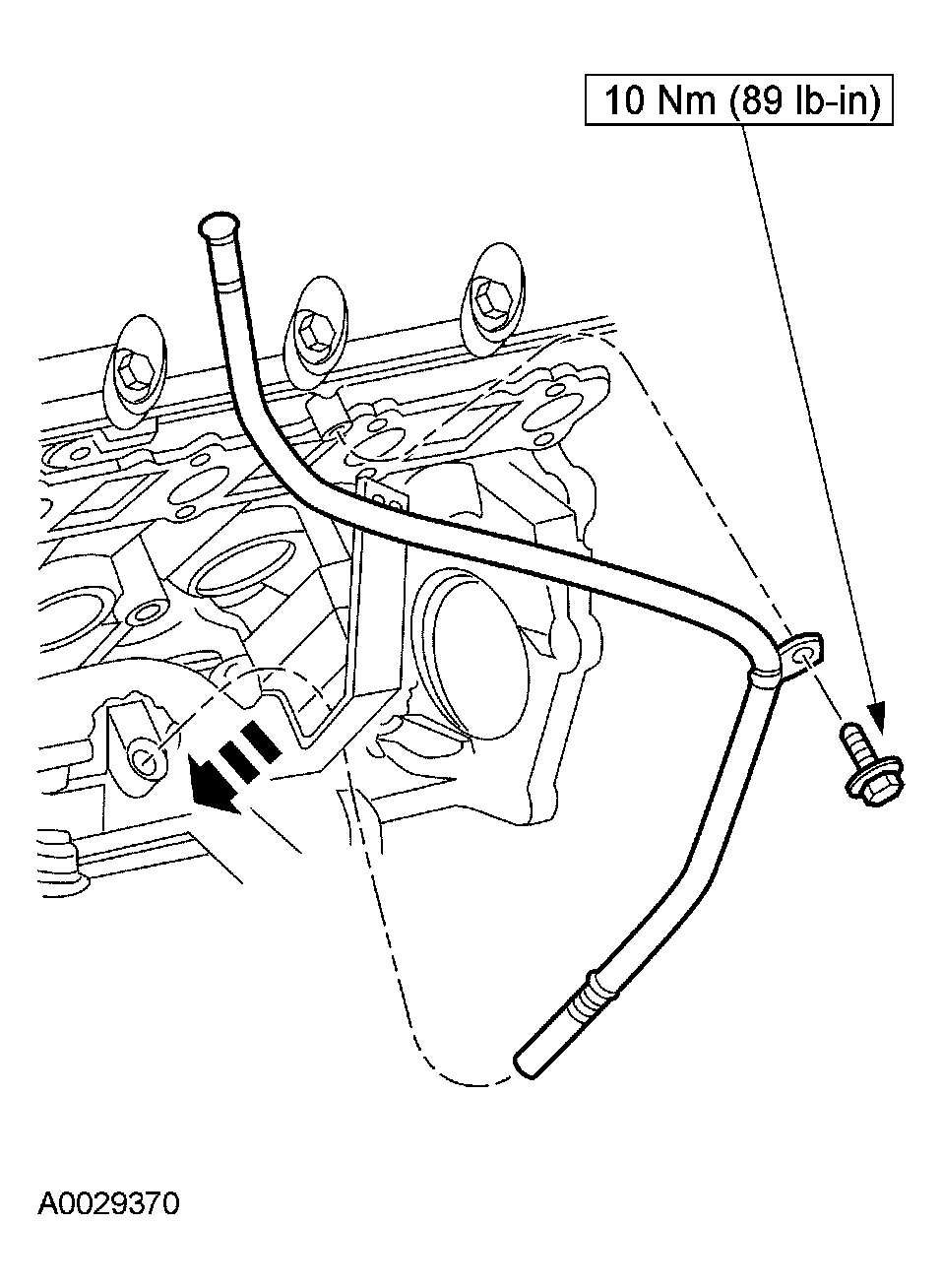

    Fig 1: Installing Oil Level Indicator Tube Bolt
    G03885440Courtesy of FORD MOTOR CO.
  2. Insert the oil level indicator tube and install the bolt.

    3. Vehicles with 4.6L engine.

  3. Install the retaining nut and insert the oil level indicator.
    Fig 2: Installing Retaining Nut
    G03885225Courtesy of FORD MOTOR CO.

    4. Vehicles with 5.4L engine

  4. Install the retaining nut and insert the oil level indicator.

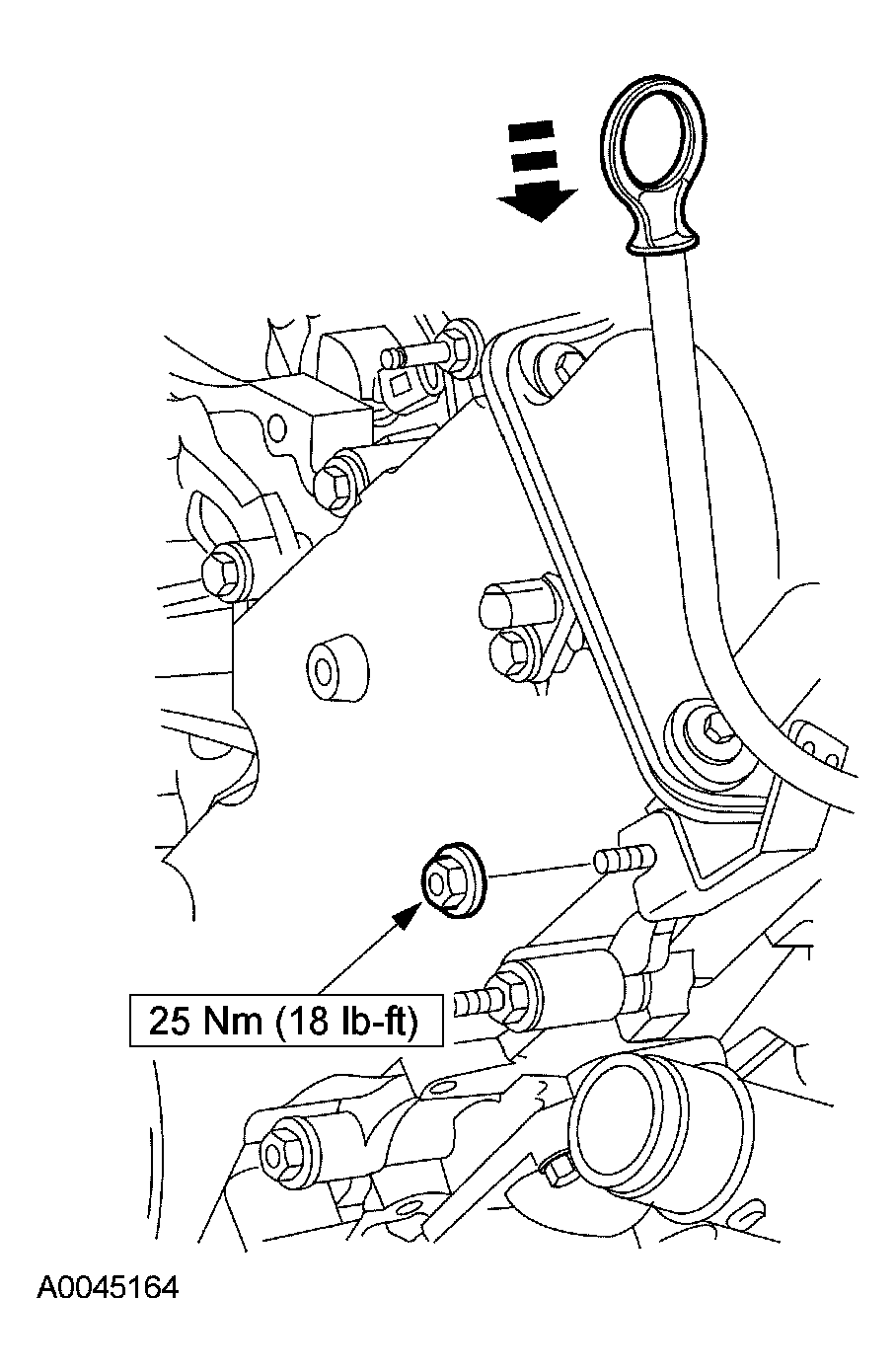

    Fig 3: Installing Retaining Nut
    G03885442Courtesy of FORD MOTOR CO.

    5. All Vehicles

  5. Install the LH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD - LH .
  6. Install the ACL outlet pipe and the ACL. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
