In-Vehicle Repair: Flexplate: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    Romeo engine (4.6L)

  1. Position the flexplate. Loosely install the bolts, then tighten the bolts in the sequence shown in Fig 1.

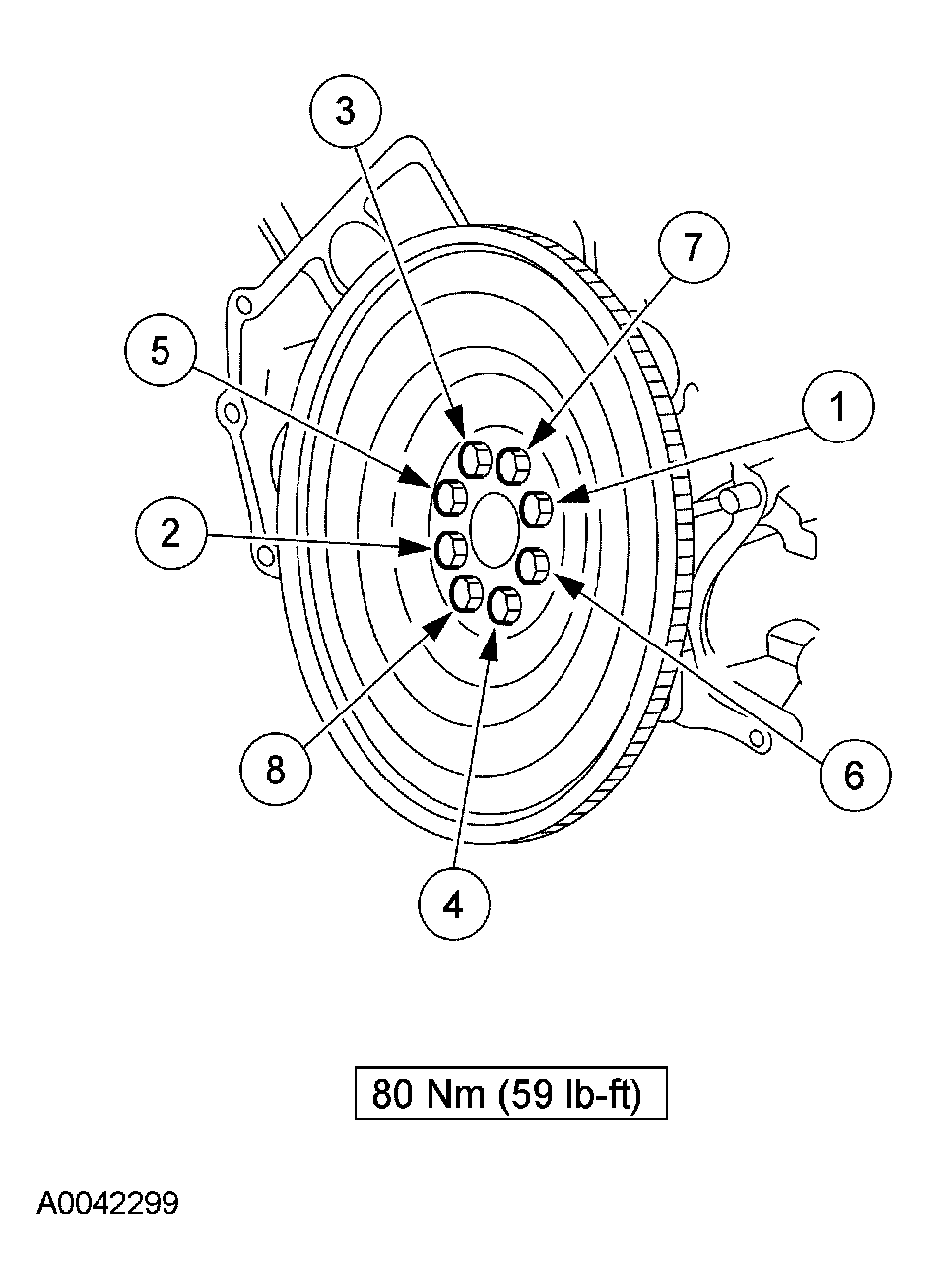

    Fig 1: Installing Flexplate Bolts - Romeo Engine (4.6L)
    G03886247Courtesy of FORD MOTOR CO.

    2. Windsor engine (5.4L)

  2. Position the flexplate. Loosely install the bolts, then tighten the bolts in the sequence shown in Fig 2.
    Fig 2: Identifying Flexplate Bolt Tightening Sequence
    G03885483Courtesy of FORD MOTOR CO.

    3. All engines

  3. Install the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 4R70W/4R75W . .
