Exhaust Manifold - LH: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    All engines

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

    3. Romeo engine (4.6L)

  3. Remove the EGR system module tube.
    • Disconnect the upper and lower fittings.
    • Remove the tube.
      Fig 1: Removing EGR System Module Tube
      G03885098Courtesy of FORD MOTOR CO.

    Windsor engine (5.4L)

  4. Disconnect the differential pressure feedback EGR sensor hoses from the EGR valve tube.
    Fig 2: Identifying Differential Pressure Feedback EGR Sensor Hoses
    G03885203Courtesy of FORD MOTOR CO.
  5. Disconnect the upper and lower fittings and remove the EGR valve tube.
    Fig 3: Disconnecting EGR Valve Tube
    G03885157Courtesy of FORD MOTOR CO.

    6. All engines

  6. Remove the nuts.
    Fig 4: Identifying Exhaust Manifold Flange Nuts
    G03885400Courtesy of FORD MOTOR CO.
  7. Remove the nuts and the exhaust manifold.
    Fig 5: Removing Exhaust Manifold Nuts
    G03885401Courtesy of FORD MOTOR CO.
  8. Remove and discard the exhaust manifold gasket.

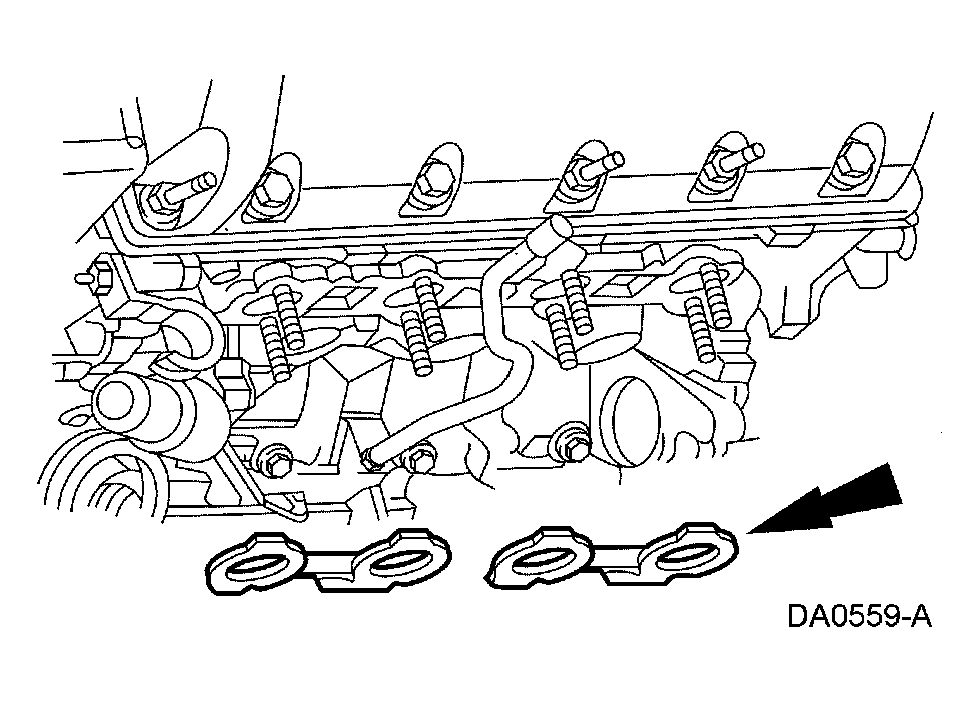

    Fig 6: Removing Exhaust Manifold Gasket
    G03885402Courtesy of FORD MOTOR CO.
  9. Clean and inspect the exhaust manifold. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
