Engine Front Cover: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove both of the valve covers. For additional information, refer to VALVE COVER - LH , VALVE COVER - RH, 4.6L  or VALVE COVER - RH, 5.4L .
  3. Remove the radiator. For additional information, refer to ENGINE COOLING .
  4. Remove the coolant pump. For additional information, refer to ENGINE COOLING .
  5. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

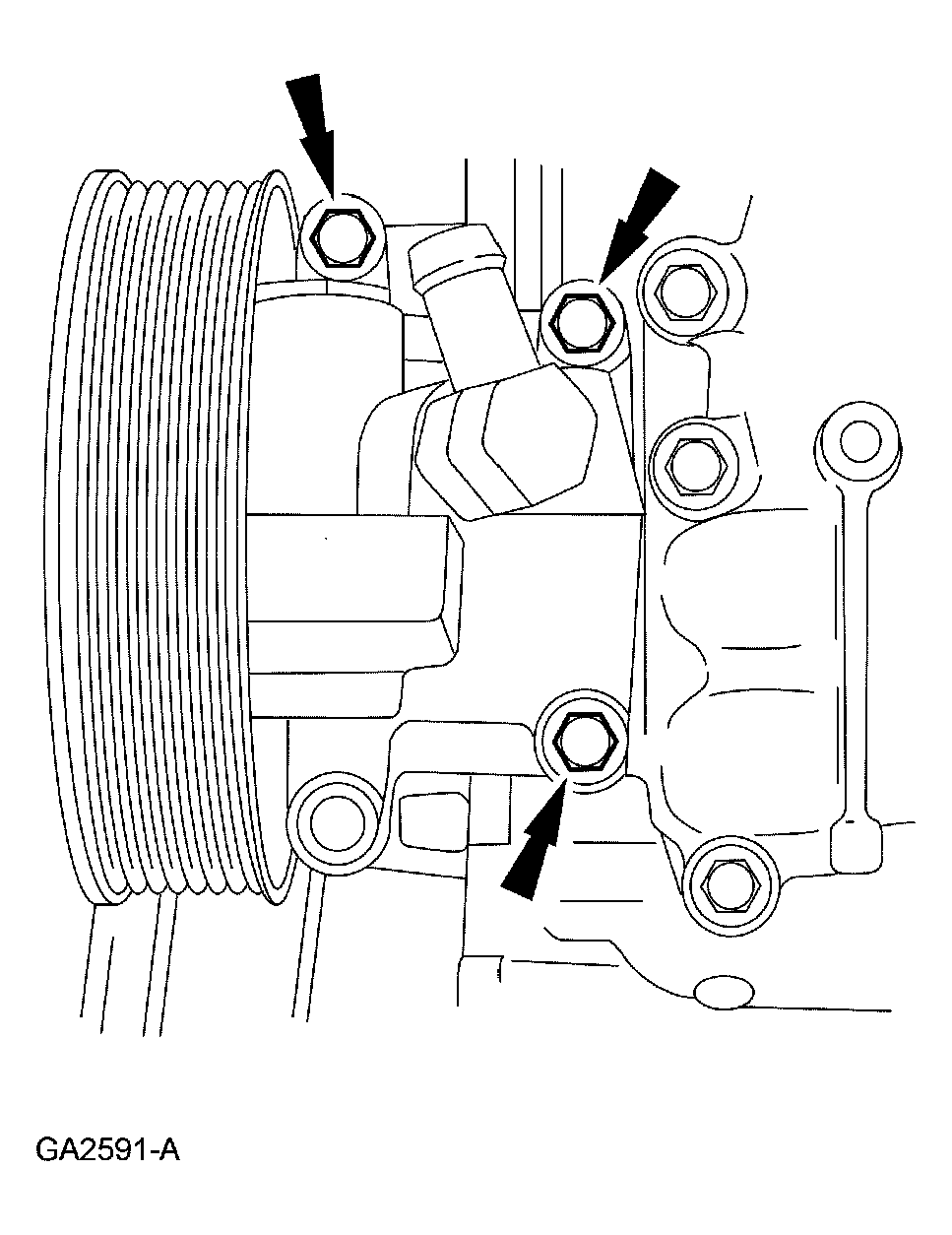

  6. Remove the top bolts and the lower bolt and position the power steering pump aside.
    Fig 1: Locating Power Steering Pump Bolts
    G03885288Courtesy of FORD MOTOR CO.
  7. Disconnect the crankshaft position (CKP) sensor electrical connector.
    Fig 2: Locating CKP Sensor Electrical Connector
    G04612789Courtesy of FORD MOTOR CO.
  8. Remove the drain plug and drain the engine oil.
    Fig 3: Locating Drain Plug
    G03885548Courtesy of FORD MOTOR CO.
  9. Remove the oil pan front bolts.
    Fig 4: Locating Front Oil Pan Bolts
    G03885291Courtesy of FORD MOTOR CO.
  10. Remove the crankshaft front seal. For additional information, refer to CRANKSHAFT FRONT SEAL .
  11. Disconnect the camshaft position (CMP) sensor electrical connector.
    Fig 5: Identifying Camshaft Position (CMP) Sensor Electrical Connector
    G03885221Courtesy of FORD MOTOR CO.
  12. Remove the bolt and the belt idler pulley.
    Fig 6: Identifying Bolt And Belt Idler Pulley
    G03885293Courtesy of FORD MOTOR CO.
  13. Remove the bolts.
    Fig 7: Identifying Front Cover Fasteners
    G03885685Courtesy of FORD MOTOR CO.
    14. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to clean sealing surfaces.
  14. Remove the engine front cover from the front cover to cylinder block dowel.
    • Discard the engine front cover gasket.
    • Clean the mating surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
    • Inspect the mating surfaces.
      Fig 8: Removing Engine Front Cover From Cylinder Block/Dowel
      G03885295Courtesy of FORD MOTOR CO.
