In-Vehicle Repair: Camshaft: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

    All engines

    CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to clean sealing surfaces.
  1. Clean the valve cover mating surface of the cylinder head with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
  2. Lubricate the camshaft journals with clean engine oil.
    Fig 1: Identifying Camshaft Journal Lube Passages
    G03881890Courtesy of FORD MOTOR CO.

    3. Romeo engine (4.6L)

  3. Install the camshaft and the camshaft bearing caps in their original locations.
    • Lubricate the camshaft bearing caps with clean engine oil.
    • Position the camshaft bearing caps.
    • Install the bolts loosely.
      Fig 2: Identifying Camshaft And Camshaft Bearing Caps
      G03885383Courtesy of FORD MOTOR CO.
  4. Tighten the bolts in the sequence shown in Fig 3.

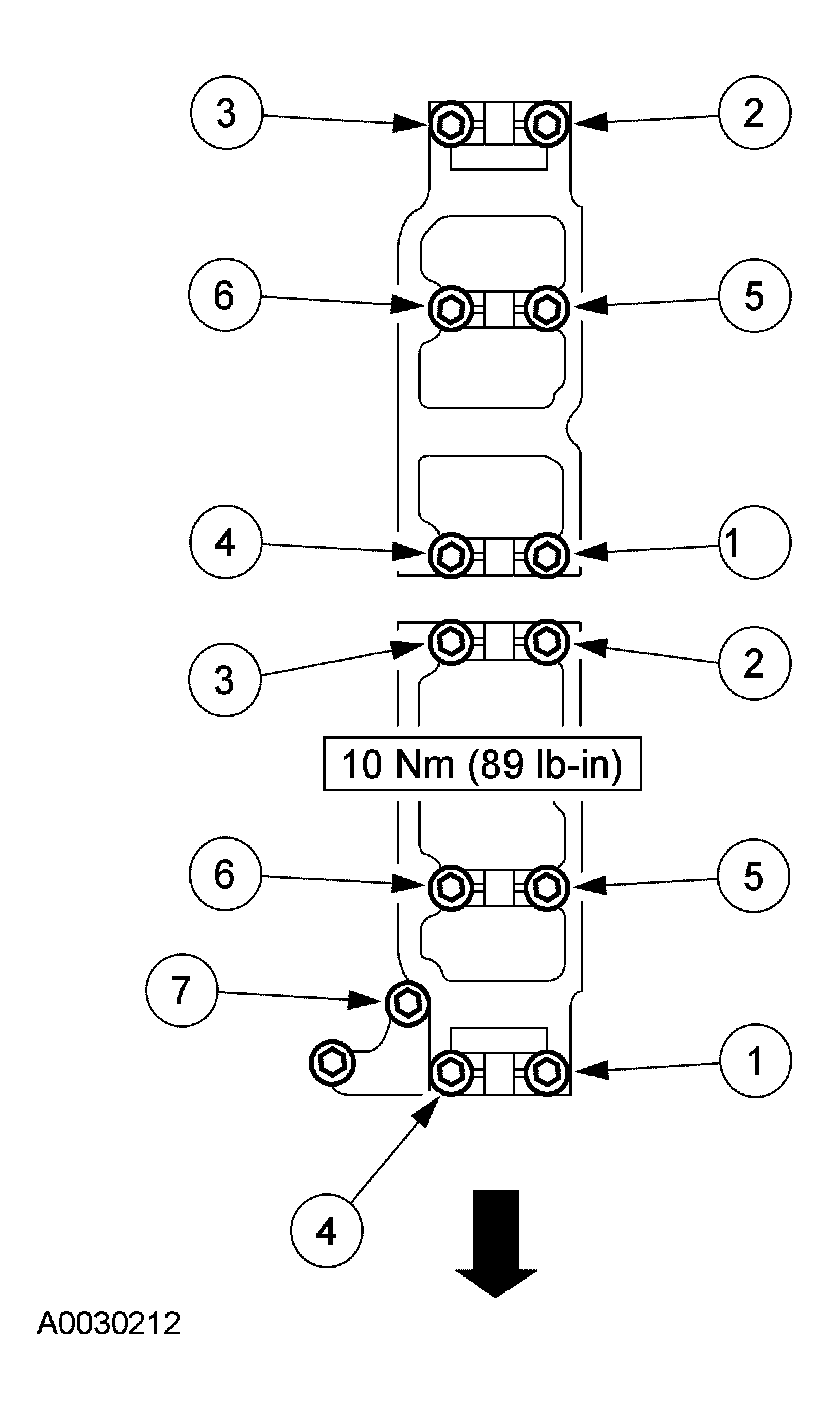

    Fig 3: Tightening Bolts In Sequence
    G03885389Courtesy of FORD MOTOR CO.
  5. Install the camshaft sprocket.
    1. Install the sprocket.
    2. Install and tighten the bolt in two stages.
      • Stage 1: Tighten to 40 Nm (30 lb-ft).
      • Stage 2: Tighten an additional 90 degrees.

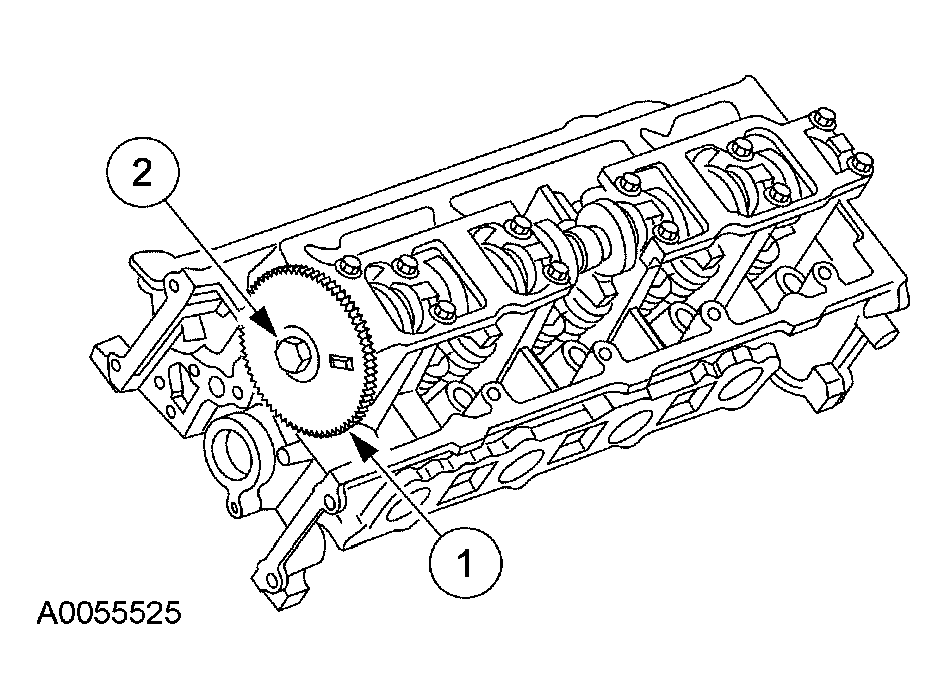

        Fig 4: Installing Camshaft Sprocket
        G03885390Courtesy of FORD MOTOR CO.

    6. Windsor engine (5.4L)

  6. Install the camshaft and the camshaft bearing caps in their original locations.
    • Lubricate the camshaft bearing caps with clean engine oil.
    • Position the camshaft bearing caps.
    • Install the bolts loosely.

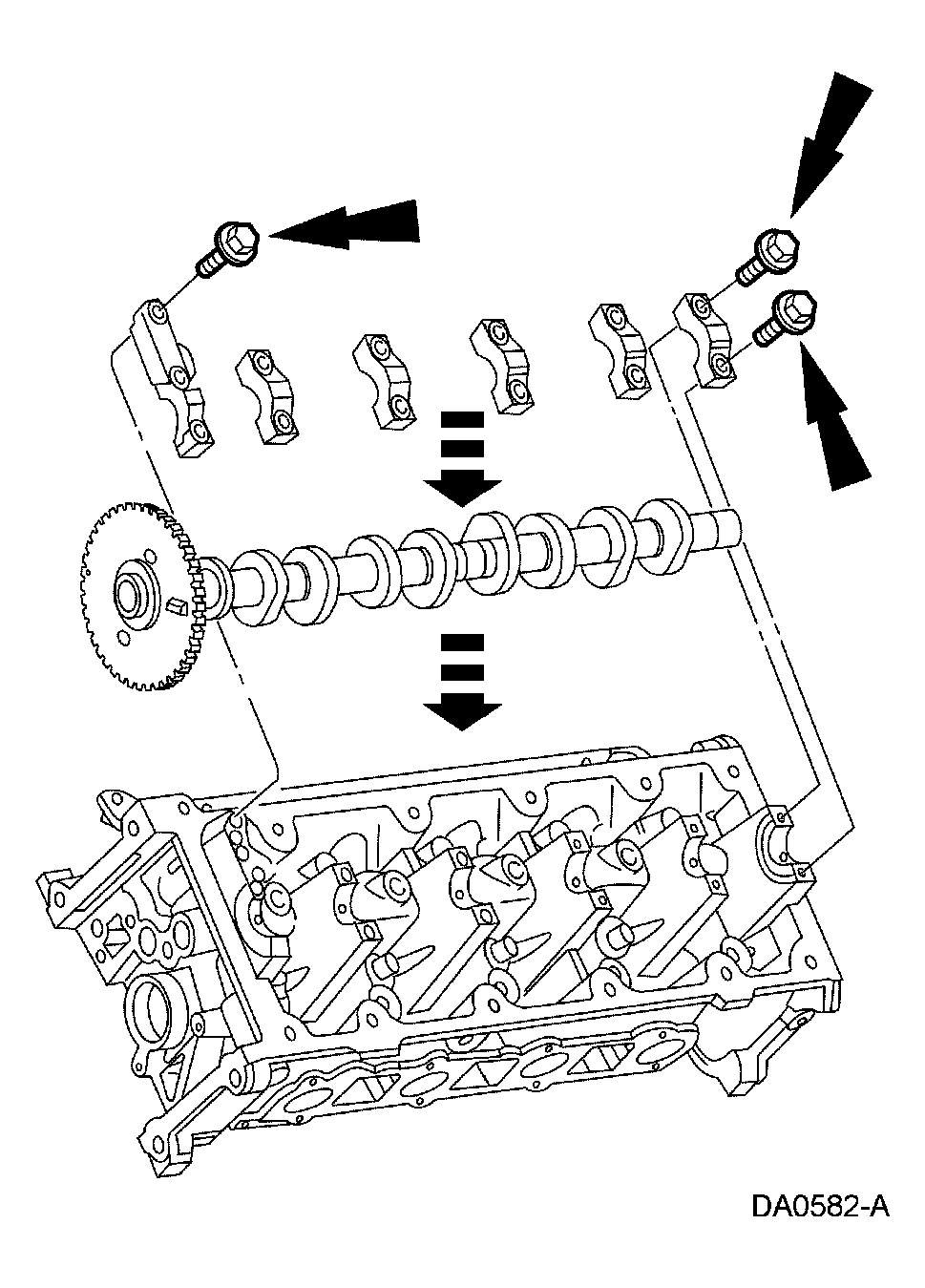

      Fig 5: Installing Camshaft Bearing Caps
      G03885391Courtesy of FORD MOTOR CO.
  7. Tighten the bolts in the sequence shown in Fig 6.

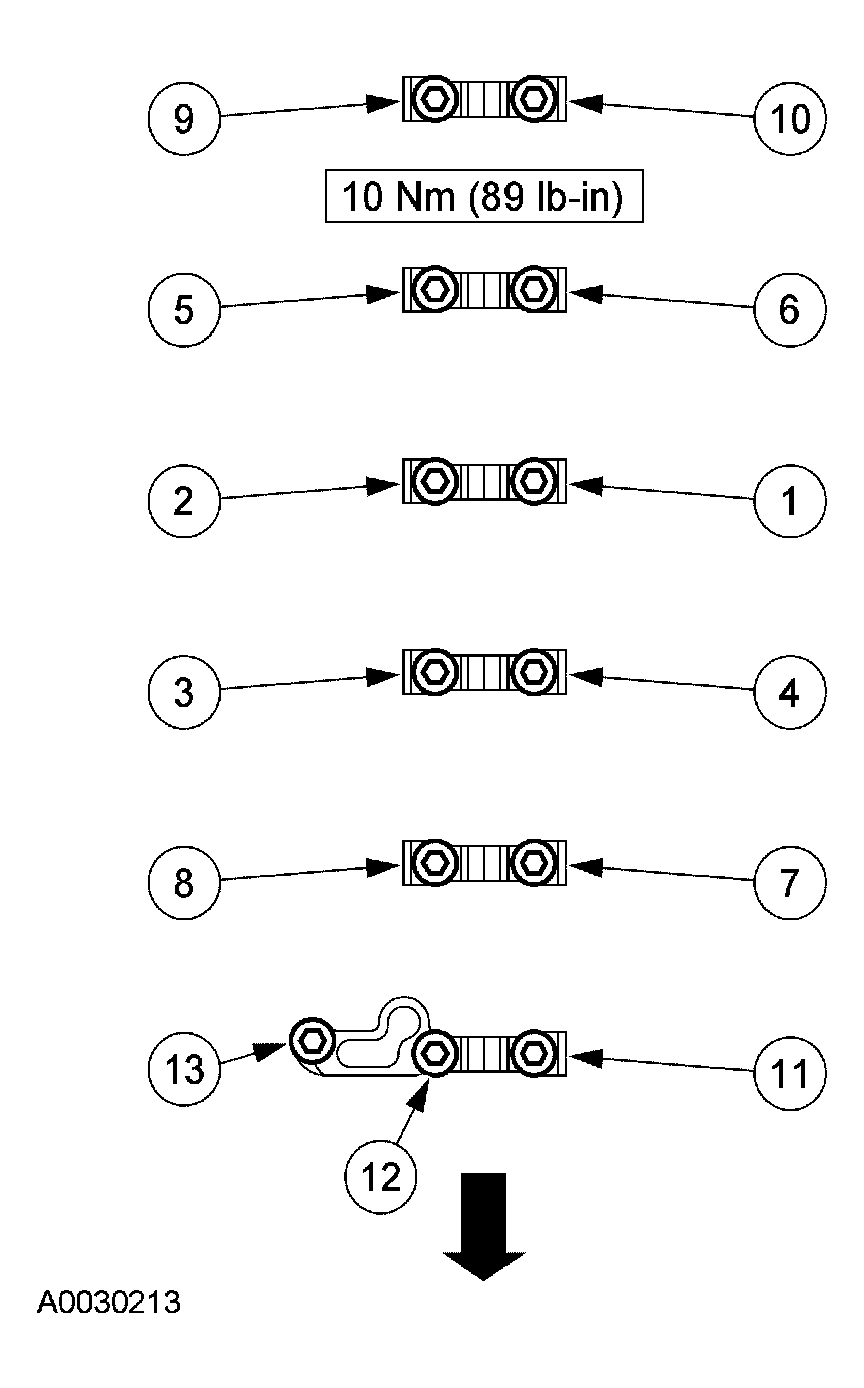

    Fig 6: Tightening Bolts In Sequence
    G03885392Courtesy of FORD MOTOR CO.

    8. All engines

  8. Install the timing chains. For additional information, refer to TIMING DRIVE COMPONENTS - ROMEO ENGINE (4.6L)  or TIMING DRIVE COMPONENTS - WINDSOR ENGINE (5.4L) .
  9. Install the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
