Intake Manifold Assembly - 5.4L: Assembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water crossover tube.

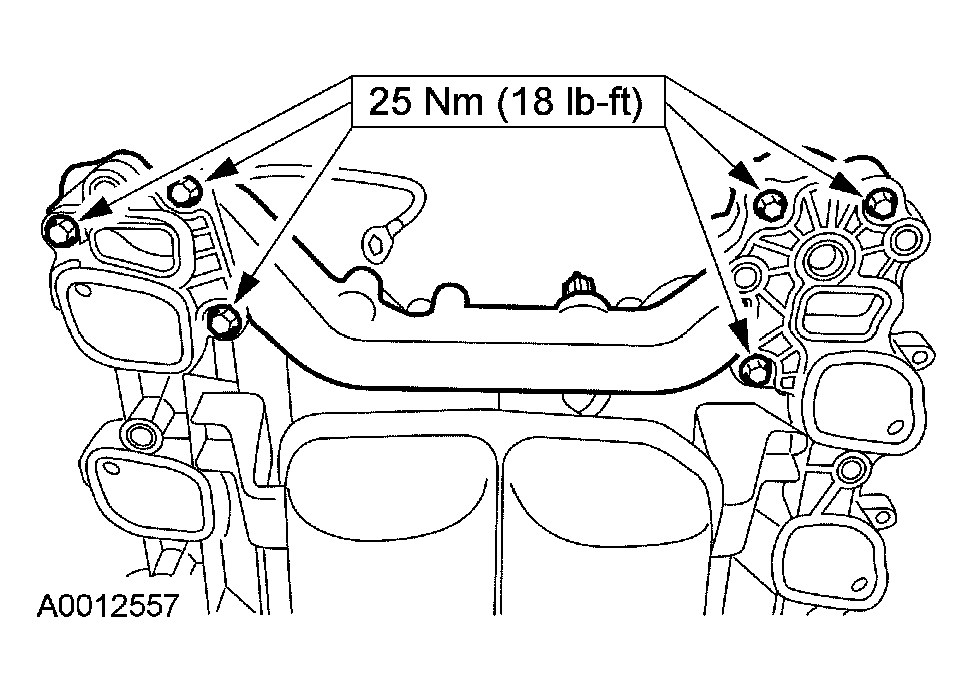

    Fig 1: Installing Water Crossover Tube
    G03885887Courtesy of FORD MOTOR CO.
  2. Install the engine noise shield.
    Fig 2: Installing Engine Noise Shield
    G03885888Courtesy of FORD MOTOR CO.
    3. NOTE: Lubricate the new O-ring seals with clean engine oil, to aid installation.
    Fig 3: Installing Fuel Injectors Into Fuel Injection Supply Manifold
    G03885889Courtesy of FORD MOTOR CO.
  3. Install the fuel injectors into the fuel injection supply manifold.
  4. Install the fuel injection supply manifold.

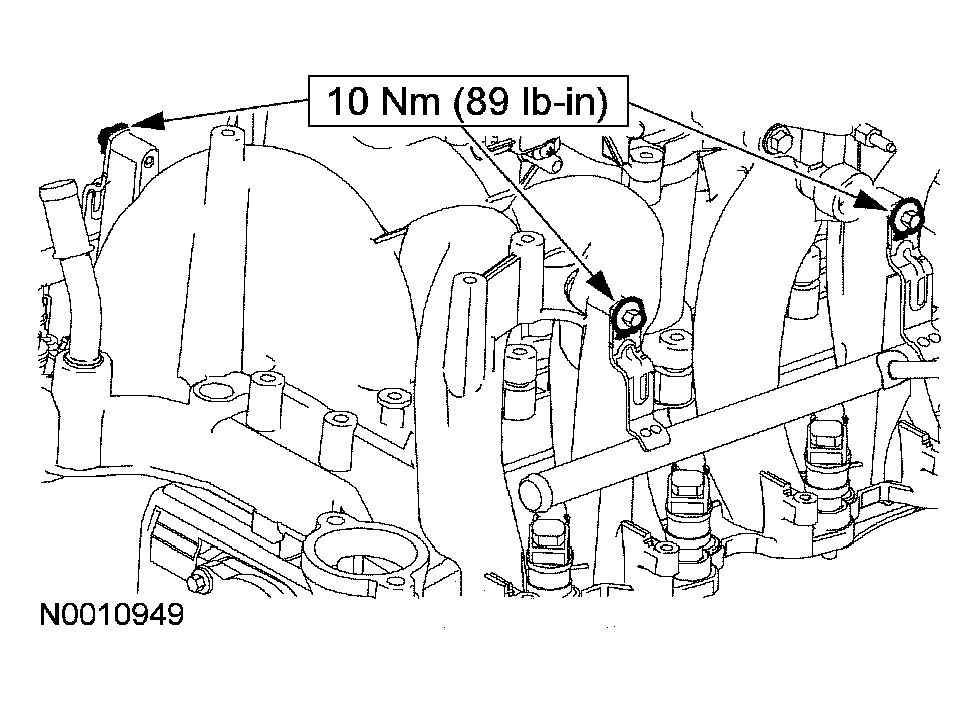

    Fig 4: Installing Fuel Injection Supply Manifold
    G03885890Courtesy of FORD MOTOR CO.
