Engine - 5.4L: Material

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATION

Item	Specification
Motorcraft Silicone Gasket Remover ZC-30	-
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket and Sealant TA-30 or equivalent	WSE-M4G323-A4
Instant Gel Adhesive TA-19 or equivalent	WSK-M2G402-A4
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP or equivalent	WSS-M2C930-A
Motorcraft Premium Gold Engine Coolant VC-7-A (in California and Oregon VC-7-B, in Canada VC-7-C) or equivalent (yellow in color)	WSS-M97B51-A1
Hydraulic Chain Tensioner Retaining Clip 1L3Z-6P250-AA	-

Record the main bearing code found on the front of the engine block.

Fig 1: Identifying Main Bearing Code Label Location (Engine Block)
Courtesy of FORD MOTOR CO.
Record the main bearing code found on the back of the crankshaft.

Fig 2: Identifying Main Bearing Code - Found On Back Of Crankshaft
Courtesy of FORD MOTOR CO.
Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for each main bearing.
- Read the first letter of the engine block main bearing code and the first letter of the crankshaft main bearing code.
- Read down the column below the engine block main bearing code letter, and across the row next to the crankshaft main bearing code letter, until the two intersect. This is the required bearing grade for the number one crankshaft main bearing.
- As an example, if the engine block code letter is "F" and the crankshaft code letter is "D", the correct bearing grade for this main bearing is a "2".
- Repeat this process for the remaining four main bearings.

  Fig 3: Bearing Select Fit Chart (Standard Bearings)
  Courtesy of FORD MOTOR CO.
If oversize bearings are being used, use the procedure in the previous step and the Bearing Select Fit Chart, Oversize Bearings to determine the required bearing grade for each main bearing.

Fig 4: Bearing Select Fit Chart
Courtesy of FORD MOTOR CO.

NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.

Install the crankshaft upper main bearings into the cylinder block and lubricate them with clean engine oil.

NOTE: The upper thrust washers are shown for location purposes only. See Fig 5. Do not install the upper thrust washers until the crankshaft is installed. Refer to 7 and 8.

Fig 5: Installing Crankshaft Onto Upper Crankshaft Main Bearings

Courtesy of FORD MOTOR CO.

Install the crankshaft onto the upper crankshaft main bearings.

NOTE: If equipped, the oil groove on the thrust washer must face toward the front of the engine (against the crankshaft thrust surface).

Fig 6: Installing Rear Crankshaft Upper Thrust Washer

Courtesy of FORD MOTOR CO.

Push the crankshaft rearward and install the rear crankshaft upper thrust washer at the back of the No. 5 main boss.

NOTE: If equipped, the oil groove on the thrust washer must face toward the front of the engine (against the crankshaft surface).

Fig 7: Installing Front Crankshaft Upper Thrust Washer At Front Of No 5 Main Boss

Courtesy of FORD MOTOR CO.

Push the crankshaft forward and install the front crankshaft upper thrust washer at the front of the No. 5 main boss.

NOTE: To aid in assembly, apply petroleum jelly to the back of the crankshaft thrust washer.

NOTE: If equipped, the oil groove on the thrust washer must face toward the rear of the engine (crankshaft surface).

Fig 8: Installing Lower Crankshaft Thrust Washer To Back Side Of No 5 Main Bearing Cap

Courtesy of FORD MOTOR CO.

Install the lower crankshaft thrust washer to the back side of the No. 5 main bearing cap, with oil grooves facing the crankshaft surface.
Install the crankshaft lower main bearings into the main bearing caps and lubricate them with clean engine oil. Locate the main bearing cap on the cylinder block and keeping the cap as square as possible, alternately draw the cap down evenly using the cap fasteners.

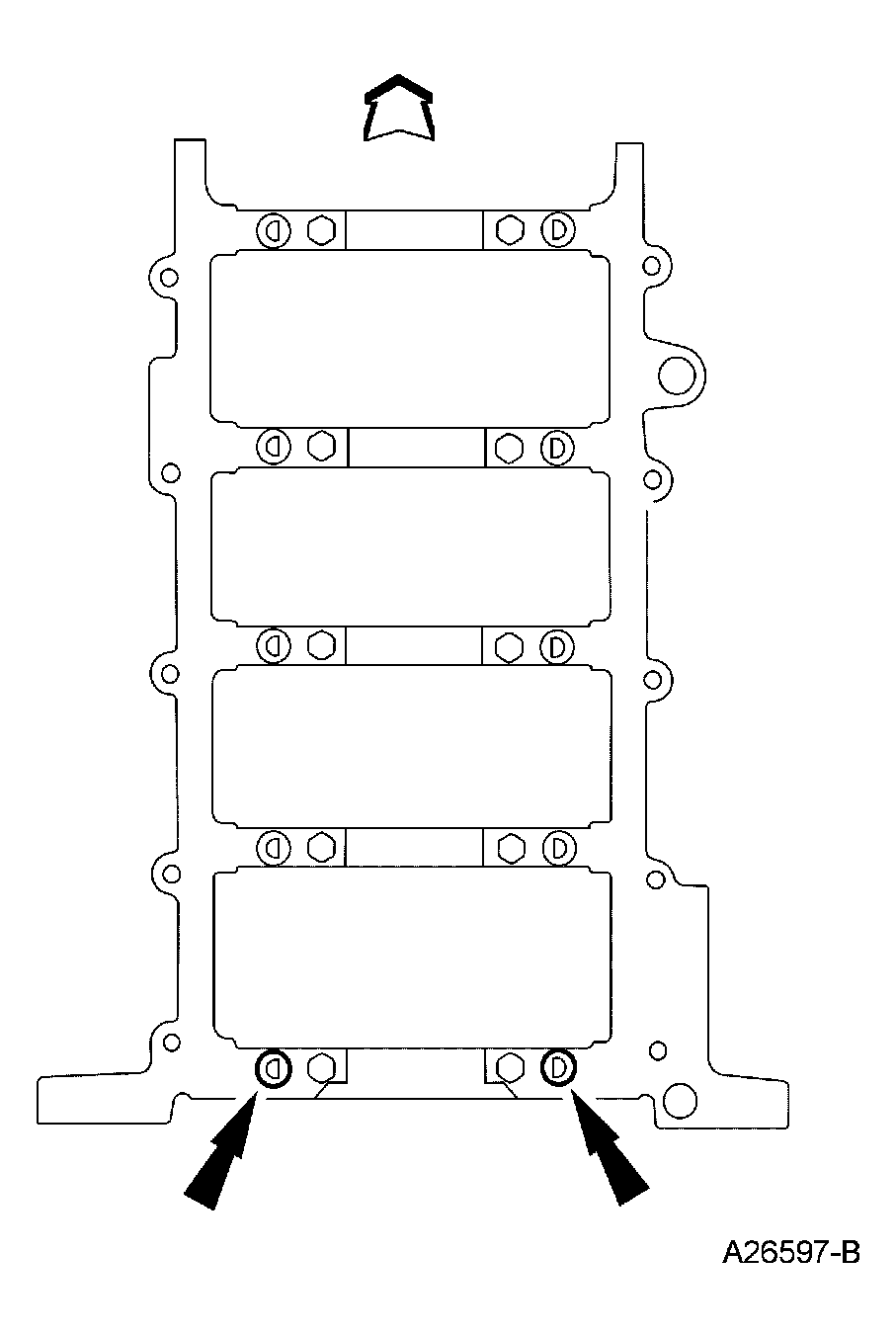

Install the dowel pins so the flat sides face the crankshaft.

Fig 9: Installing Dowel Pins
Courtesy of FORD MOTOR CO.
Install the vertical main bearing cap fasteners and tighten in two stages, in the sequence shown in Fig 10.
- Stage 1: Tighten to 40 Nm (30 lb-ft).
- Stage 2: Tighten an additional 90 degrees.

  Fig 10: Identifying Tightening Sequence Of Vertical Main Bearing Cap Fasteners
  Courtesy of FORD MOTOR CO.

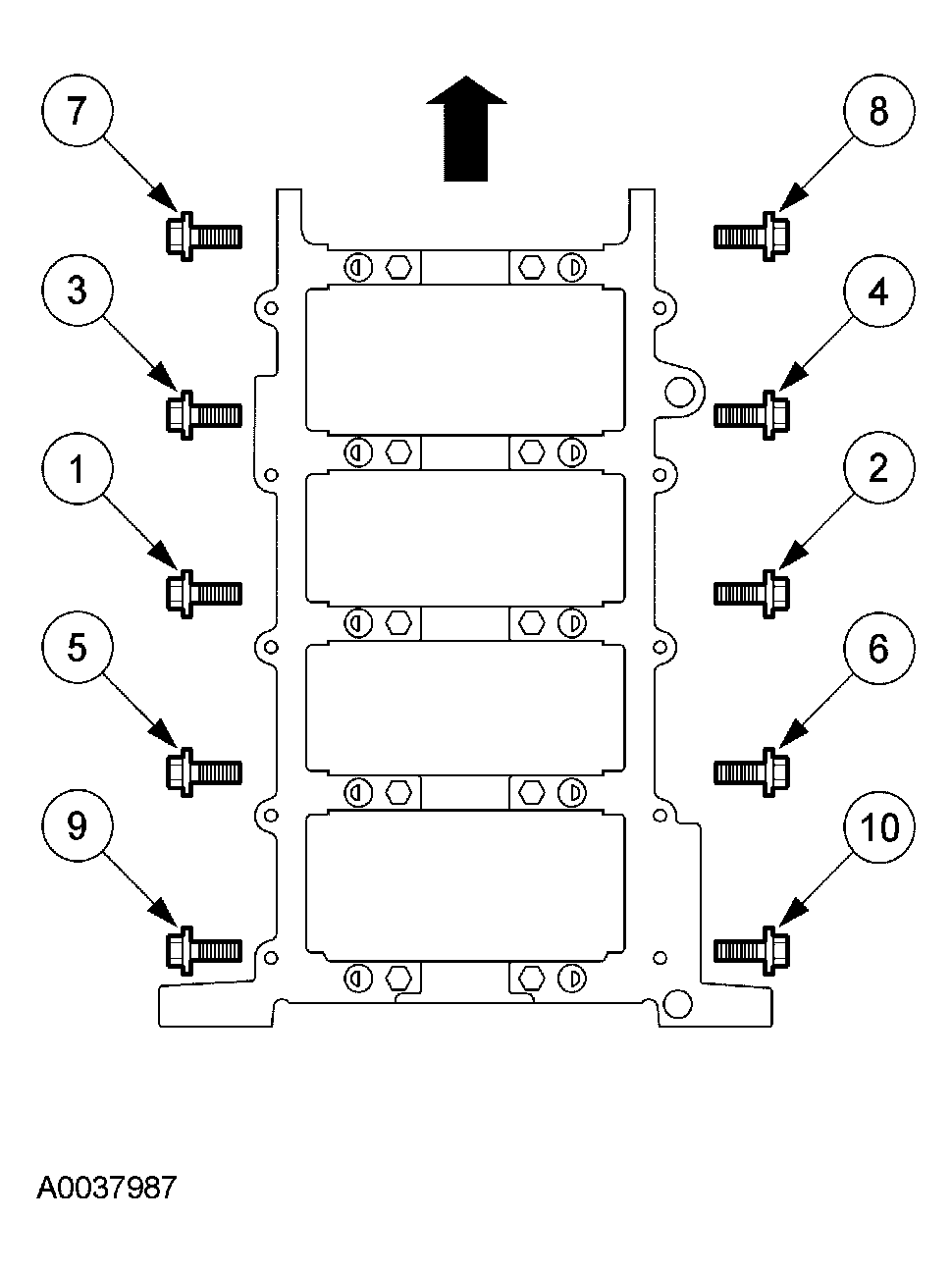

Install the side bolts and tighten them in two stages, in the sequence shown in Fig 11.
- Stage 1: Tighten to 30 Nm (22 lb-ft).
- Stage 2: Tighten an additional 90 degrees.

  Fig 11: Identifying Tightening Sequence Of Side Bolts
  Courtesy of FORD MOTOR CO.

CAUTION: Do not scratch the cylinder walls or crankshaft journals with the connecting rod.

NOTE: The next three steps are for all eight connecting rods, rod caps and pistons. Only one connecting rod, rod cap and piston is shown in Fig 12.

NOTE: Make sure the identification marks on the piston and connecting rod face toward the front of the engine.

Fig 12: Installing Piston And Connecting Rod

Courtesy of FORD MOTOR CO.

Using the special tools, install the piston and connecting rod with the upper connecting rod bearing in place.

CAUTION: Do not scratch the cylinder walls or crankshaft journals with the connecting rod.

Fig 13: Removing Special Tool

Courtesy of FORD MOTOR CO.

Once the connecting rod is seated on the crankshaft journal, remove the special tool.

CAUTION: The rod cap installation must keep the same orientation as marked during disassembly.

NOTE: The connecting rod caps are of the "cracked" design and must mate with the connecting rod ends. Excessive bearing clearance will result if not mated correctly.

Position the lower bearing and connecting rod, and install the new bolts loosely.

NOTE: Main bearing caps are removed for clarity.

NOTE: Rotate the crankshaft after each connecting rod is installed and tightened to check for assembly binding.

Tighten the bolts in two stages, using the sequence shown in Fig 14.
- Stage 1: Tighten to 43 Nm (32 lb-ft).
- Stage 2: Tighten an additional 105 degrees.

  Fig 14: Identifying Tightening Sequence Of Main Bearing Cap Bolts
  Courtesy of FORD MOTOR CO.
Position the oil pump and install the bolts loosely. Tighten the bolts in the sequence shown in Fig 15.

Fig 15: Identifying Tightening Sequence Of Oil Pump Bolts
Courtesy of FORD MOTOR CO.

CAUTION: The gasket sealing surfaces on the cylinder head and cylinder block must be clean. For additional information, refer to CYLINDER HEADS - 5.4L .

CAUTION: The use of sealing aids (aviation cement, copper spray and glue) is not permitted. The gasket must be installed dry.

CAUTION: The new gasket has a film coating which is crucial to the gasket's ability to seal correctly. Do not scratch the gasket.

NOTE: RH head gasket shown; LH head gasket similar.

Fig 16: Installing Head Gasket Over Dowel Pins

Courtesy of FORD MOTOR CO.

Install the head gasket over the dowel pins.

CAUTION: Cylinder head machining or milling is not authorized by the Ford Motor Company. Cylinder head flatness must be within 0.0254 mm (0.001 in) across a 38.1 mm (1.5 in) square area.

CAUTION: The gasket sealing surfaces on the cylinder head and cylinder block must be clean. For additional information, refer to CYLINDER HEADS - 5.4L .

CAUTION: The use of sealing aids (aviation cement, copper spray and glue) is not permitted. The gasket must be installed dry.

CAUTION: Do not allow the dowels to scratch the sealing surface of the cylinder head during cylinder head installation.

NOTE: The new cylinder head bolts must be lightly oiled with a rag, and allowed to drain for a few minutes prior to installation.

NOTE: RH cylinder head shown; LH cylinder head similar.

Fig 17: Installing Cylinder Head On Dowels

Courtesy of FORD MOTOR CO.

Install the cylinder head on the dowels and the head gasket. Loosely install new bolts.

NOTE: Make sure to tighten the bolts in following three stages.

Tighten the LH bolts in the sequence shown in Fig 18.
- Stage 1: Tighten to 40 Nm (30 lb-ft).
- Stage 2: Tighten an additional 90 degrees.
- Stage 3: Tighten an additional 90 degrees.

  Fig 18: Identifying Tightening Sequence Of Cylinder Head Bolts (LH)
  Courtesy of FORD MOTOR CO.

NOTE: Make sure to tighten the bolts in the following three stages.

Tighten the RH bolts in the sequence shown in Fig 19.
- Stage 1: Tighten to 40 Nm (30 lb-ft).
- Stage 2: Tighten an additional 90 degrees.
- Stage 3: Tighten an additional 90 degrees.

  Fig 19: Identifying Tightening Sequence Of Cylinder Head Bolts (RH)
  Courtesy of FORD MOTOR CO.
Remove the special tools from both ends of the cylinder head.

Fig 20: Installing/Removing Special Tools On Both Ends Of Cylinder Head
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the hydraulic lash adjusters with clean engine oil.

Fig 21: Identifying Hydraulic Lash Adjusters

Courtesy of FORD MOTOR CO.

Install the hydraulic lash adjusters in their original locations.
Install the RH exhaust manifold gaskets and the exhaust manifold. Tighten the nuts in the sequence shown in Fig 22.

Fig 22: Identifying Tightening Sequence Of RH Exhaust Manifold Bolts
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the O-ring seal with clean engine oil.

Install the oil level indicator tube.
- Install a new O-ring seal on the oil level indicator tube.
- Install the oil level indicator tube.
- Install the bolt.

  Fig 23: Installing Oil Level Indicator Tube
  Courtesy of FORD MOTOR CO.
Install the LH exhaust manifold and the exhaust manifold gaskets. Tighten the nuts in the sequence shown in Fig 24.

Fig 24: Identifying Tightening Sequence Of LH Exhaust Manifold Bolts
Courtesy of FORD MOTOR CO.

CAUTION: Timing chain procedures must be followed exactly or damage to valves and pistons will result.

CAUTION: Prior to installation, inspect the tensioner-sealing bead for seal integrity. If cracks, tears, separation from the tensioner body or permanent compression of the seal bead is observed, install a new tensioner.

Fig 25: Compressing Tensioner Plunger Using Edge Of Vise

Courtesy of FORD MOTOR CO.

Using a vise, compress the tensioner plunger.
Install a retaining clip on the tensioner to hold the plunger in during installation.

Fig 26: Installing Retaining Clip On Tensioner
Courtesy of FORD MOTOR CO.
Remove the tensioner from the vise.
If the copper links are not visible, mark two links on one end and one link on the other end, and use as timing marks.

Fig 27: Marking Links When Copper Link Is Not Visible
Courtesy of FORD MOTOR CO.
Install the timing chain guides.

Fig 28: View Of Timing Chain Guides With Torque Specifications
Courtesy of FORD MOTOR CO.
Pre-position the camshafts.
1. Rotate the LH camshaft until the timing mark is approximately at 12 o'clock.
2. Rotate the RH camshaft until the timing mark is approximately at 11 o'clock.

  Fig 29: Identifying Camshaft Timing Marks
  Courtesy of FORD MOTOR CO.

CAUTION: Rotate the crankshaft counterclockwise only. Do not rotate past position shown or severe piston and valve damage can occur. See Fig 30.

NOTE: The number one piston is at top dead center (TDC) when the stud on the engine block fits into the slot in the handle of the special tool.

Fig 30: Positioning Crankshaft

Courtesy of FORD MOTOR CO.

Position the crankshaft so the number one cylinder is at TDC with the special tool.
Remove the special tool.
Install the crankshaft sprocket, making sure the flange faces forward.

Fig 31: Identifying Crankshaft Sprocket Flange
Courtesy of FORD MOTOR CO.
Position the lower end of the LH (inner) timing chain on the crankshaft sprocket, aligning the timing mark on the outer flange of the crankshaft sprocket with the single copper (marked) link on the chain.

Fig 32: Aligning Timing Mark On Outer Flange Of Crankshaft Sprocket With Single Copper Link On Chain
Courtesy of FORD MOTOR CO.

NOTE: Make sure the upper half of the timing chain is below the tensioner arm dowel.

Fig 33: Positioning Timing Chain On Camshaft Sprocket

Courtesy of FORD MOTOR CO.

Position the timing chain on the camshaft sprocket with the camshaft sprocket timing mark positioned between the two copper (marked) chain links.

NOTE: The LH timing chain tensioner arm has a bump near the dowel hole for identification.

Fig 34: Installing LH Timing Chain Tensioner

Courtesy of FORD MOTOR CO.

Position the LH timing chain tensioner arm on the dowel pin and install the LH timing chain tensioner.
Remove the retaining clip from the LH timing chain tensioner.

Fig 35: Timing Chain Tensioner Retaining Clip
Courtesy of FORD MOTOR CO.
Position the lower end of the RH (outer) timing chain on the crankshaft sprocket, aligning the timing mark on the sprocket with the single copper (marked) chain link.

Fig 36: Aligning Timing Mark On Crankshaft Sprocket With Single Copper Chain Link
Courtesy of FORD MOTOR CO.
Install the RH timing chain on the camshaft sprocket. Make sure the camshaft sprocket timing mark is positioned between the two copper (marked) chain links.

Fig 37: Aligning Copper-Colored (Marked) Links With Camshaft Sprocket Timing Mark
Courtesy of FORD MOTOR CO.
Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner.

Fig 38: View Of RH Timing Chain Tensioner - With Torque Specification
Courtesy of FORD MOTOR CO.
Remove the retaining clip from the RH timing chain tensioner.

Fig 39: Timing Chain Tensioner Retaining Clip
Courtesy of FORD MOTOR CO.
As a post-check, verify correct alignment of all timing marks.

Fig 40: Identifying Correct Alignment Of All Timing Marks
Courtesy of FORD MOTOR CO.
Install the special tool between the valve spring coils to prevent valve stem seal damage.

Fig 41: Installing Special Tool Between Valve Spring Coils
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the camshaft roller followers using clean engine oil.

NOTE: Position the cam lobe away from the camshaft roller follower location prior to installing each camshaft roller follower.

Install the camshaft roller followers.
1. Install the special tool.
2. Compress the valve spring.
3. Install the camshaft roller followers in their original locations.

  Fig 42: Installing Camshaft Roller Followers
  Courtesy of FORD MOTOR CO.

CAUTION: When installing the spark plugs, use care not to exceed the recommended torque.

Install the eight spark plugs.
- Tighten to 18 Nm (13 lb-ft).
Install the crankshaft sensor ring on the crankshaft.

Fig 43: Crankshaft Sensor Ring
Courtesy of FORD MOTOR CO.

NOTE: If the front cover is not secured within four minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Follow the directions on the packaging. Failure to follow this procedure can cause future oil leakage.

Fig 44: Locating Sealant Application Areas

Courtesy of FORD MOTOR CO.

Apply a bead of silicone gasket and sealant along the cylinder head-to-cylinder block surface and the oil pan-to-cylinder block surface, at the locations shown in Fig 44.

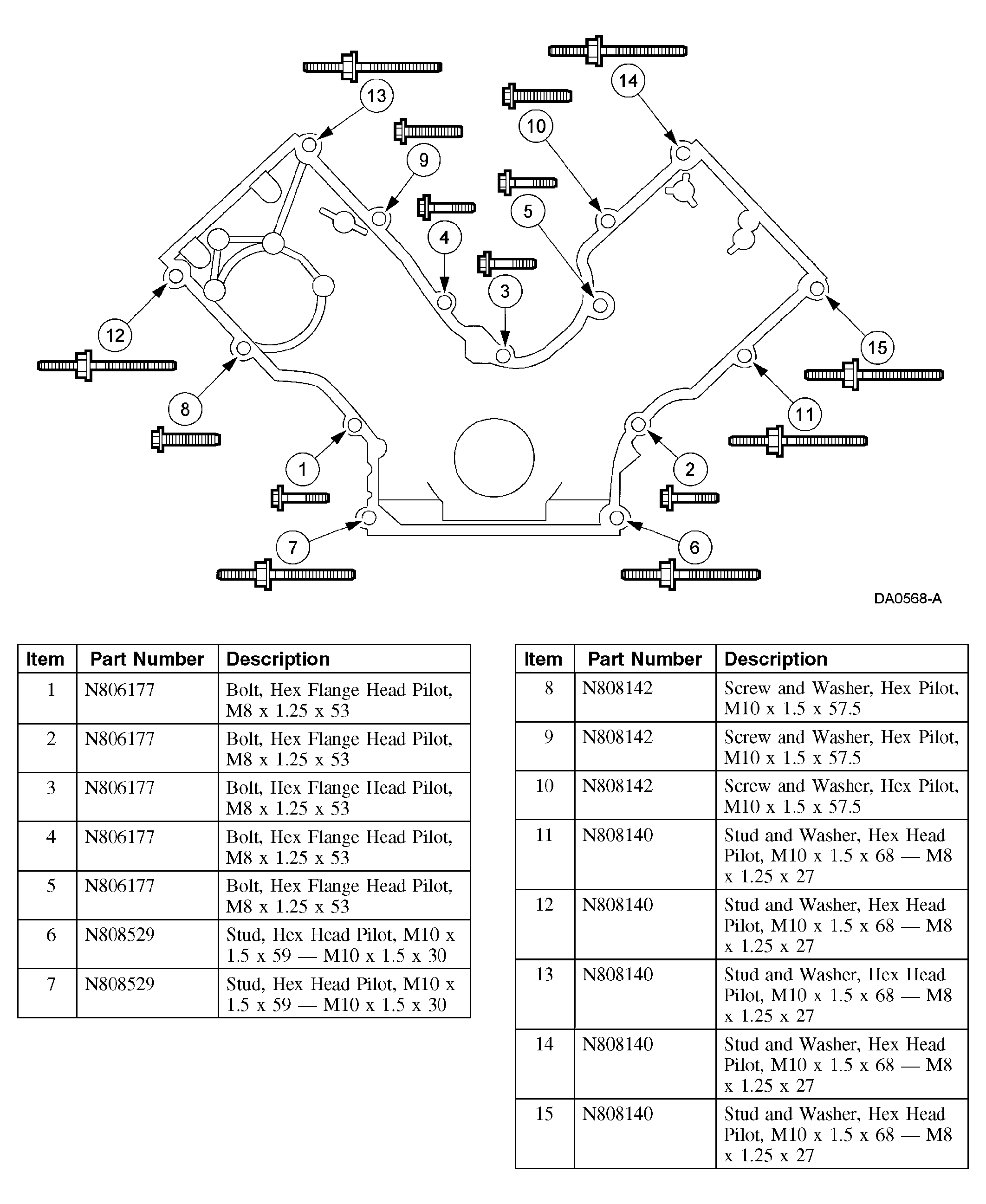

Install a new engine front cover gasket on the engine front cover. Position the engine front cover. Install the fasteners finger-tight.

Fig 45: Installing Engine Front Cover
Courtesy of FORD MOTOR CO.
Tighten the engine front cover fasteners in sequence in three stages.
Stage 1: Tighten fasteners 1 through 5 to 25 Nm (18 lb-ft).

Stage 2: Tighten fasteners 6 and 7 to 48 Nm (35 lb-ft).

Stage 3: Tighten fasteners 8 through 15 to 48 Nm (35 lb-ft).

Fig 46: Identifying Tightening Sequence Of Engine Front Cover Bolts
Courtesy of FORD MOTOR CO.
Position the belt idler pulley and install the bolt.

Fig 47: Installing Belt Idler Pulley
Courtesy of FORD MOTOR CO.
Lubricate the engine front cover and the crankshaft front seal inner lip with clean engine oil.

Fig 48: Installing Crankshaft Front Seal
Courtesy of FORD MOTOR CO.
Using the special tools, install the crankshaft front seal into the engine front cover.

Fig 49: Installing Crankshaft Front Seal Into Engine Front Cover Using Special Tool
Courtesy of FORD MOTOR CO.

NOTE: If not secured within four minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Follow the directions on the packaging. Failure to follow this procedure can cause future oil leakage.

Fig 50: Applying Silicone Gasket And Sealant To Woodruff Key Slot On Crankshaft Pulley

Courtesy of FORD MOTOR CO.

Apply silicone gasket and sealant to the woodruff key slot on the crankshaft pulley.
Using the special tool, install the crankshaft pulley.

Fig 51: Installing Crankshaft Pulley Using Special Tool
Courtesy of FORD MOTOR CO.

NOTE: Use a suitable strap wrench (303-D055) to hold the pulley while tightening the bolt.

Tighten the new crankshaft pulley bolt in four stages.
- Stage 1: Tighten to 90 Nm (66 lb-ft).
- Stage 2: Loosen 360 degrees.
- Stage 3: Tighten to 50 Nm (37 lb-ft).
- Stage 4: Tighten an additional 90 degrees.

  Fig 52: Installing Crankshaft Pulley Bolt & Washer
  Courtesy of FORD MOTOR CO.

NOTE: The front lower hole in the power steering pump is not used.

Fig 53: Identifying Tightening Torque Of Power Steering Pump Bolts

Courtesy of FORD MOTOR CO.

Position the power steering pump and install the bolts.
If a new gasket is being installed, apply instant gel adhesive completely around the gasket groove in the LH valve cover. Install the new valve cover gasket.

Fig 54: Identifying Proper Valve Cover Gasket Sealant Application
Courtesy of FORD MOTOR CO.

Fig 55: Applying Silicone Gasket And Sealant To Engine Front Cover

Courtesy of FORD MOTOR CO.

Apply silicone gasket and sealant in two places where the engine front cover meets the cylinder head.
Position the LH valve cover and gasket on the cylinder head and install the bolts loosely.

Fig 56: Installing LH Valve Cover And Gasket On Cylinder Head
Courtesy of FORD MOTOR CO.
Tighten the bolts in the sequence shown in Fig 57.

Fig 57: Identifying Tightening Sequence Of LH Valve Cover Bolts
Courtesy of FORD MOTOR CO.
If a new gasket is being installed, apply instant gel adhesive completely around the gasket groove in the RH valve cover. Install the new valve cover gasket.

Fig 58: Applying Instant Adhesive Around Gasket Groove In Valve Cover
Courtesy of FORD MOTOR CO.

Fig 59: Applying Silicone Gasket And Sealant To Engine Front Cover

Courtesy of FORD MOTOR CO.

Apply silicone gasket and sealant in two places where the engine front cover meets the cylinder head.
Position the RH valve cover and gasket on the cylinder head and install the bolts loosely.

Fig 60: Identifying RH Valve Cover
Courtesy of FORD MOTOR CO.
Tighten the bolts in the sequence shown in Fig 61.

Fig 61: Identifying Tightening Sequence Of RH Valve Cover Bolts
Courtesy of FORD MOTOR CO.
Install the crankcase ventilation tube on the LH valve cover.

Fig 62: Locating Crankcase Ventilation Tube On LH Valve Cover
Courtesy of FORD MOTOR CO.

NOTE: RH shown; LH similar.

Fig 63: Installing Radio Frequency Interference Capacitor

Courtesy of FORD MOTOR CO.

Install the radio frequency interference capacitors.
Roughly position the engine control sensor wiring harness and mount it on the valve cover studs.
Connect the CKP sensor electrical connector.

Fig 64: Locating CKP Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the oil pressure switch electrical connector.

Fig 65: Locating Oil Pressure Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the KS electrical connector.

Fig 66: Locating KS Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the RH radio frequency interference capacitor electrical connector.

Fig 67: Locating Radio Frequency Interference Capacitor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the CMP sensor electrical connector.

Fig 68: Identifying Camshaft Position (CMP) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the LH radio frequency interference capacitor and CHT sensor electrical connectors.

Fig 69: Locating Radio Frequency Interference Capacitor And Cylinder Head Temperature Sensor Electrical Connectors
Courtesy of FORD MOTOR CO.

NOTE: LH shown; RH similar.

Fig 70: Installing Cylinder Block Drain Plugs

Courtesy of FORD MOTOR CO.

Install the cylinder block drain plugs.
Position a new gasket and the oil filter adapter. Install the bolts and nut.

Fig 71: Installing New Gasket And Oil Filter Adapter
Courtesy of FORD MOTOR CO.
Position the LH and RH engine mounts to the cylinder block and install the six bolts.

Fig 72: Installing LH And RH Engine Mounts To Cylinder Block
Courtesy of FORD MOTOR CO.
If equipped, install the A/C compressor and the bolts.

Fig 73: Installing A/C Compressor
Courtesy of FORD MOTOR CO.

CAUTION: Do not rotate the coolant pump housing once the coolant pump has been positioned in the cylinder block. Damage to the O-ring seal will occur.

Install the coolant pump.
1. Lubricate the new O-ring seal using engine coolant and install the O-ring seal onto the coolant pump.
2. Position the coolant pump into the engine block.
3. Install the bolts.

  Fig 74: Installing Coolant Pump Retaining Bolts
  Courtesy of FORD MOTOR CO.
Position the coolant pump pulley on the coolant pump and install the bolts.

Fig 75: Installing Coolant Pump Pulley On Coolant Pump
Courtesy of FORD MOTOR CO.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the aluminum retainer plate. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to clean sealing surfaces.

Inspect the rear seal retainer plate. Clean the mating surface for the rear seal retainer plate with silicone gasket remover and metal surface prep. Follow the directions on the packaging.

Fig 76: Applying Bead Of Silicone Gasket And Sealant Around Crankshaft Rear Seal Retainer Sealing Surface

Courtesy of FORD MOTOR CO.

Apply a 4-mm (0.16-in) bead of silicone gasket and sealant around the crankshaft rear seal retainer sealing surface.
Install the crankshaft rear seal retainer plate and loosely install the six bolts.

Fig 77: Identifying Crankshaft Rear Oil Seal Retainer
Courtesy of FORD MOTOR CO.
Tighten the bolts in the sequence shown in Fig 78.

Fig 78: Identifying Tightening Sequence Of Rear Oil Seal Retainer Bolts
Courtesy of FORD MOTOR CO.
Install the oil drain plug before installing the oil pan.

Fig 79: Installing Oil Drain Plug With Torque Specification
Courtesy of FORD MOTOR CO.
Install the oil pump screen and pickup tube spacer.

Fig 80: Installing Oil Pump Screen And Pickup Tube Spacer
Courtesy of FORD MOTOR CO.

CAUTION: Make sure the O-ring is in place and not damaged. A missing or damaged O-ring can cause foam in the lubrication system, low oil pressure and severe engine damage.

NOTE: Clean and inspect the mating surfaces and install a new O-ring. Lubricate the O-ring with clean engine oil.

Fig 81: Installing Oil Pump Screen And Pickup Tube

Courtesy of FORD MOTOR CO.

Position the oil pump screen and pickup tube and install the bolts.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to clean sealing surfaces.

Inspect the oil pan. Clean the mating surface for the oil pan with silicone gasket remover and metal surface prep. Follow the directions on the packaging.

NOTE: If the oil pan is not secured within four minutes, the sealant must be removed and the sealing areas cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Follow the directions on the packaging. Failure to follow this procedure can cause future oil leakage.

Fig 82: Area For Applying Bead Of Silicone Gasket And Sealant

Courtesy of FORD MOTOR CO.

Apply silicone gasket and sealant at the rear oil seal retainer-to-cylinder block sealing surface.
Apply silicone gasket and sealant at the engine front cover-to-cylinder block sealing surface.

Fig 83: Applying Silicone Gasket And Sealant At Engine Front Cover-To-Cylinder Block Sealing Surface
Courtesy of FORD MOTOR CO.
Install the oil pan gasket and the oil pan and loosely install the bolts.

Fig 84: Identifying Oil Pan And Gasket
Courtesy of FORD MOTOR CO.
Tighten the bolts in two stages, in the sequence shown in Fig 85.
- Stage 1: Tighten to 20 Nm (15 lb-ft).
- Stage 2: Tighten an additional 90 degrees.

  Fig 85: Identifying Tightening Sequence Of Oil Pan Bolts
  Courtesy of FORD MOTOR CO.
Install the special tool.

Fig 86: Identifying Special Tool
Courtesy of FORD MOTOR CO.

NOTE: The oil level indicator and tube are removed for clarity.

Fig 87: Identifying Special Tool

Courtesy of FORD MOTOR CO.

Install the special tool.
Install the special tool and remove the engine from the work stand.

Fig 88: Installing Special Tool
Courtesy of FORD MOTOR CO.
Lower the engine onto wooden blocks.
Install the special tool and raise the engine.

Fig 89: Identifying Special Tool
Courtesy of FORD MOTOR CO.
Install the oil level indicator tube nut and insert the oil level indicator.

Fig 90: Installing Oil Level Indicator Tube Nut
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the inner lip of the crankshaft rear seal with clean engine oil.

Fig 91: Installing Crankshaft Rear Seal Using Special Tool

Courtesy of FORD MOTOR CO.

Using the special tools, install a new crankshaft rear seal.
Using the special tools, install the crankshaft rear oil slinger.

Fig 92: Installing Crankshaft Rear Oil Slinger Using Special Tool
Courtesy of FORD MOTOR CO.
Install the flexplate and bolts. Tighten the bolts in the sequence shown in Fig 93.

Fig 93: Identifying Flexplate Bolt Tightening Sequence
Courtesy of FORD MOTOR CO.
Install the engine. For additional information, refer to ENGINE .
