Special Tool(s)

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G03904008
Pitman Arm Puller T65P-3590-F
    NOTE: The engine should not be running.
    Fig 1: Centering Steering Wheel
    G03883158Courtesy of FORD MOTOR CO.
  1. Turn the steering wheel from right lock to left lock at least once.
  2. Remove the driver air bag; for additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
  3. Raise and support the vehicle; for additional information, refer to JACKING & LIFTING .
  4. Remove the castellated nut.
    1. Remove the cotter pin.
    2. Remove the castellated nut.

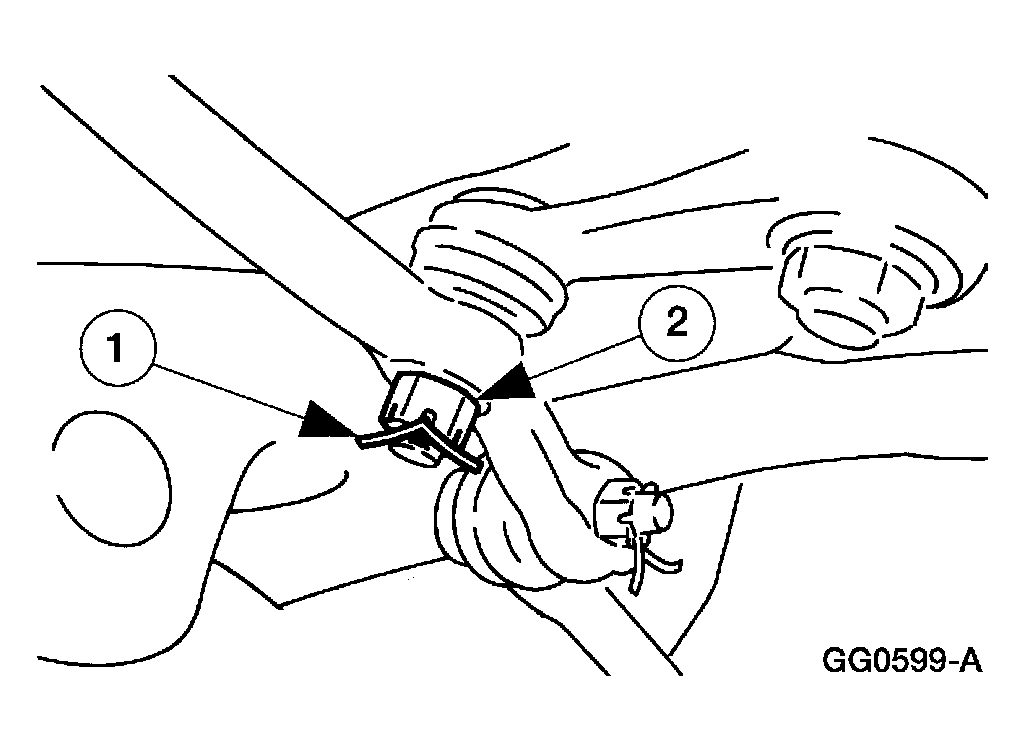

      Fig 2: Removing Cotter Pin And Castellated Nut
      G03884763Courtesy of FORD MOTOR CO.
  5. Separate the steering sector shaft arm drag link.
    • Use the Pitman Arm Puller to separate the steering sector shaft arm drag link.

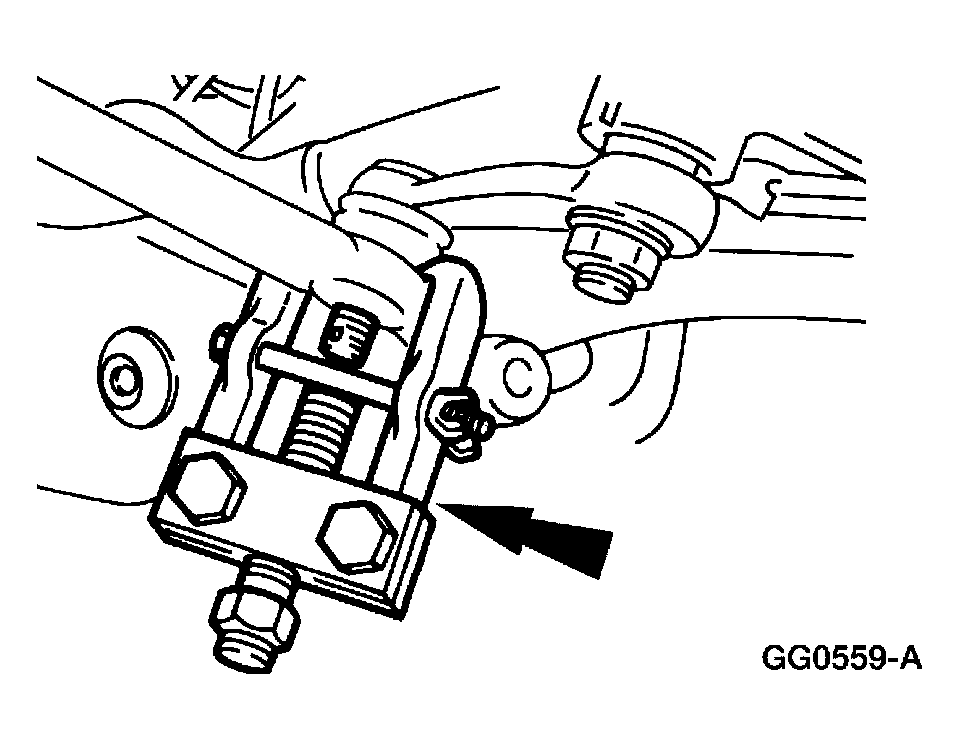

      Fig 3: Separating Steering Sector Shaft Arm Drag Link
      G03884764Courtesy of FORD MOTOR CO.
  6. NOTE: The front wheels should not touch the ground.
  7. Lower and support the front of the vehicle; for additional information, refer to JACKING & LIFTING .
  8. NOTE: Reset the steering gear meshload only if the measured rotating torque for total on-center load is less than specification.

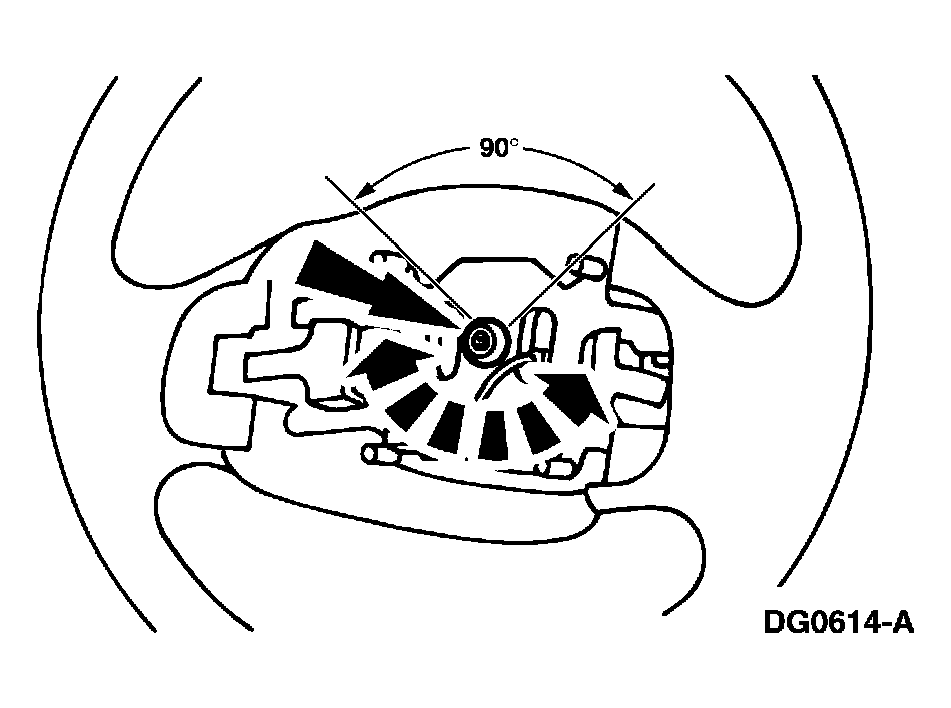

    Fig 4: Attaching Torque Wrench To Bolt And Measuring Steering Gear Meshload From Center
    G03884765Courtesy of FORD MOTOR CO.
  9. Attach a lb/in torque wrench to the bolt and measure the steering gear meshload from center.
  10. Adjust if not within specification.

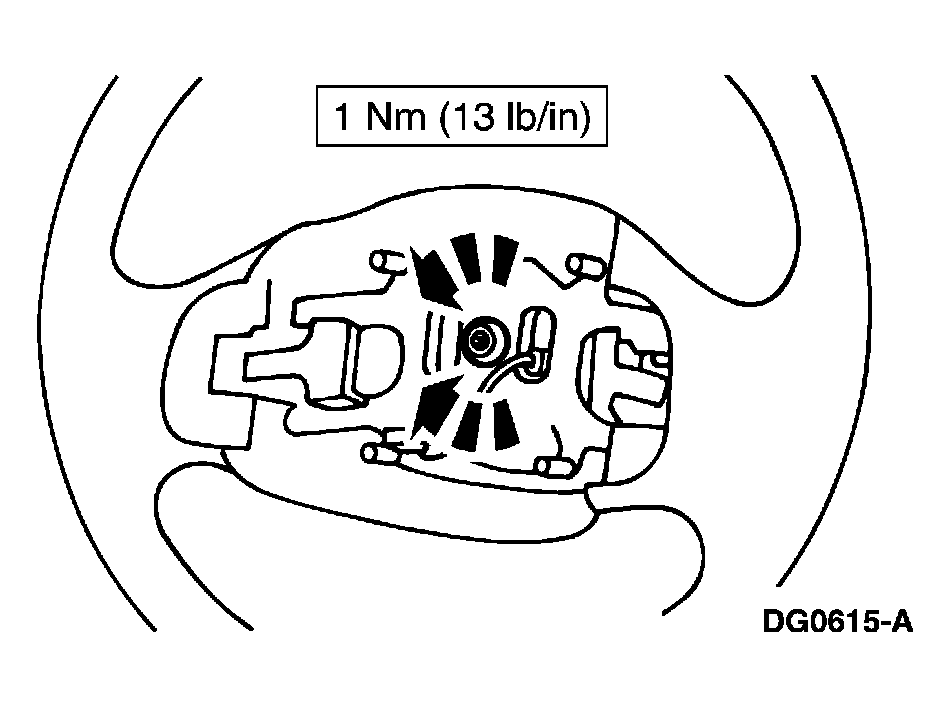

    Fig 5: Adjusting Bolt
    G03884766Courtesy of FORD MOTOR CO.
  11. Adjust the sector shaft to proper rotating torque.
    1. Hold the sector shaft and loosen the lock nut.
    2. Adjust the sector shaft.
      Fig 6: Adjusting Sector Shaft
      G03884767Courtesy of FORD MOTOR CO.
  12. Verify that the rotating torque is to specification.
    • Reset if necessary.

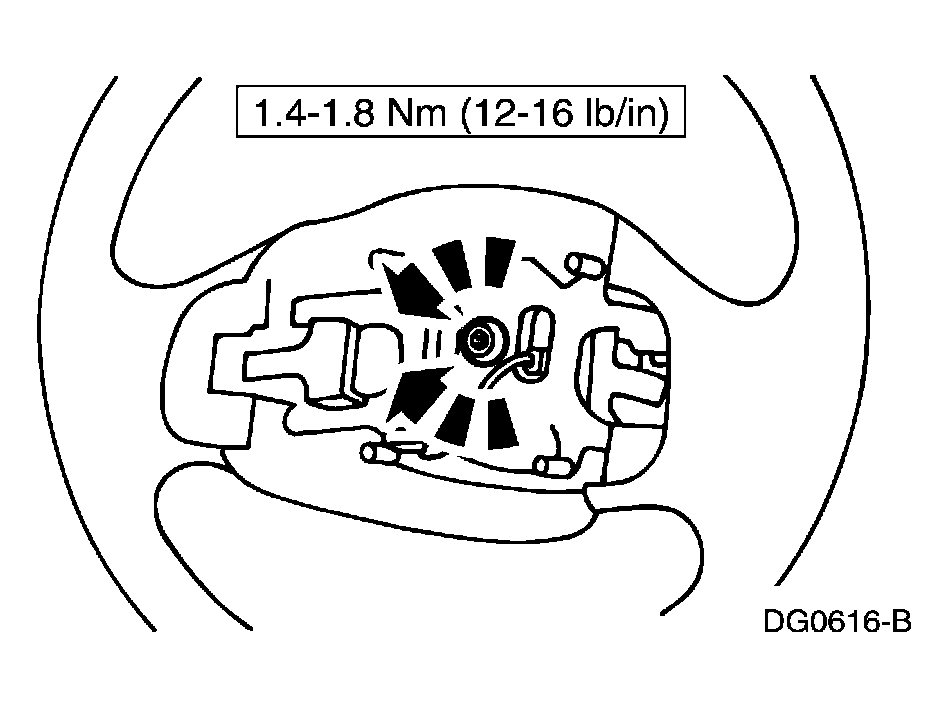

      Fig 7: Verifying Rotating Torque
      G03884768Courtesy of FORD MOTOR CO.
  13. Tighten the lock nut.
    1. Hold the sector shaft.
    2. Tighten the lock nut.

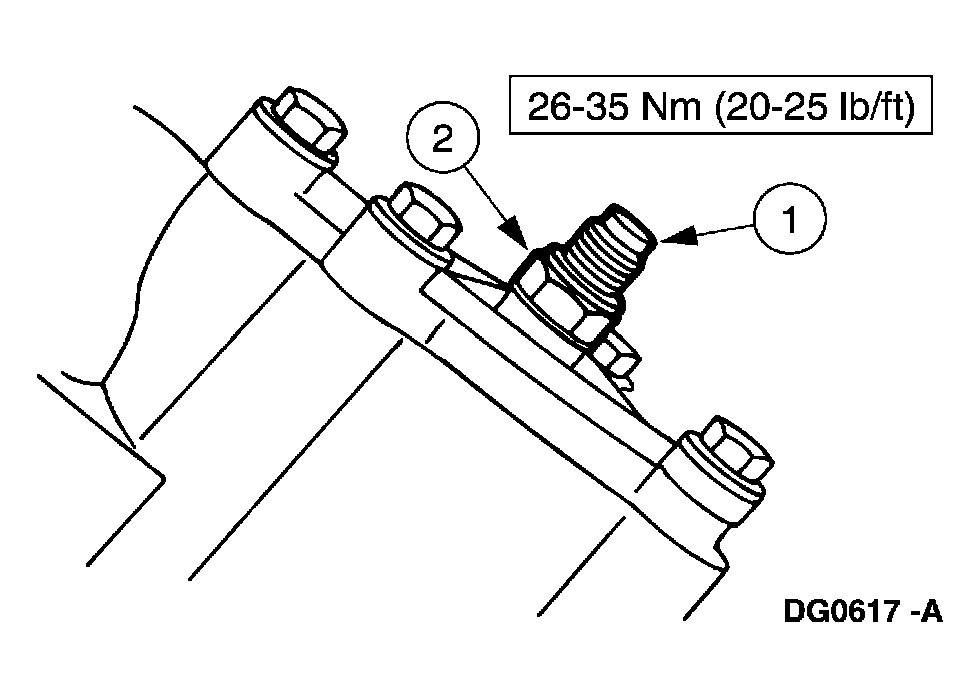

      Fig 8: Tightening Lock Nut
      G03884769Courtesy of FORD MOTOR CO.
  14. Install the steering sector shaft arm drag link, castellated nut and cotter pin.
    Fig 9: Installing Steering Sector Shaft Arm Drag Link, Castellated Nut And Cotter Pin
    G03884770Courtesy of FORD MOTOR CO.
  15. Lower the vehicle; for additional information, refer to JACKING & LIFTING .
  16. Install the driver air bag; for additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
