Disconnect - Vehicles with 6.0L engine

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

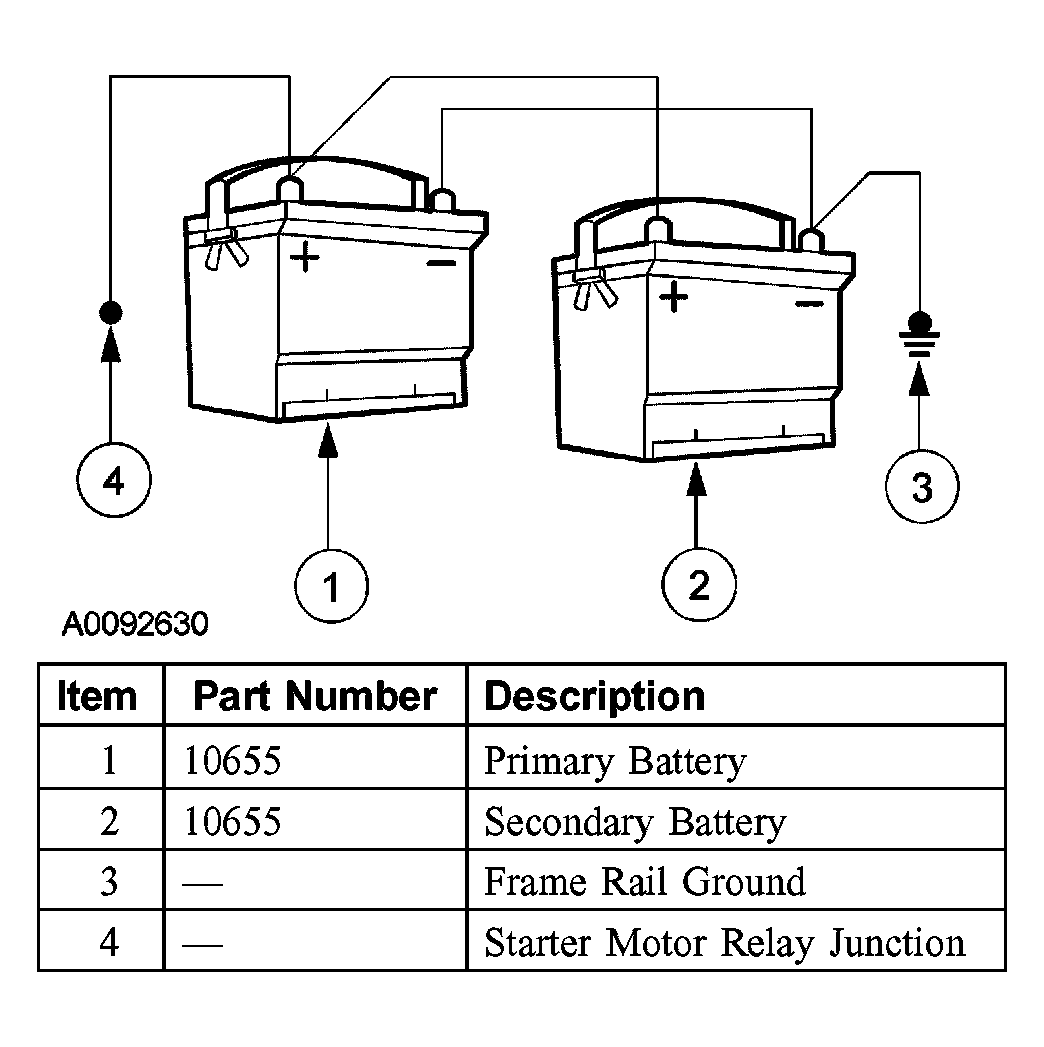

Fig 1: Identifying Simplified Battery Configuration - 6.0L
G03890352Courtesy of FORD MOTOR CO.
CAUTION: If equipped with the CD6 audio unit, precautions must be taken when the battery has been disconnected. When reconnecting the battery, make sure no interruption of power occurs for 30 seconds. If power is interrupted during the first 30 seconds, permanent damage to the CD6 audio unit will result.
    CAUTION: Make sure to cover the ground cable terminal end with electrical tape or with a suitable insulating device.

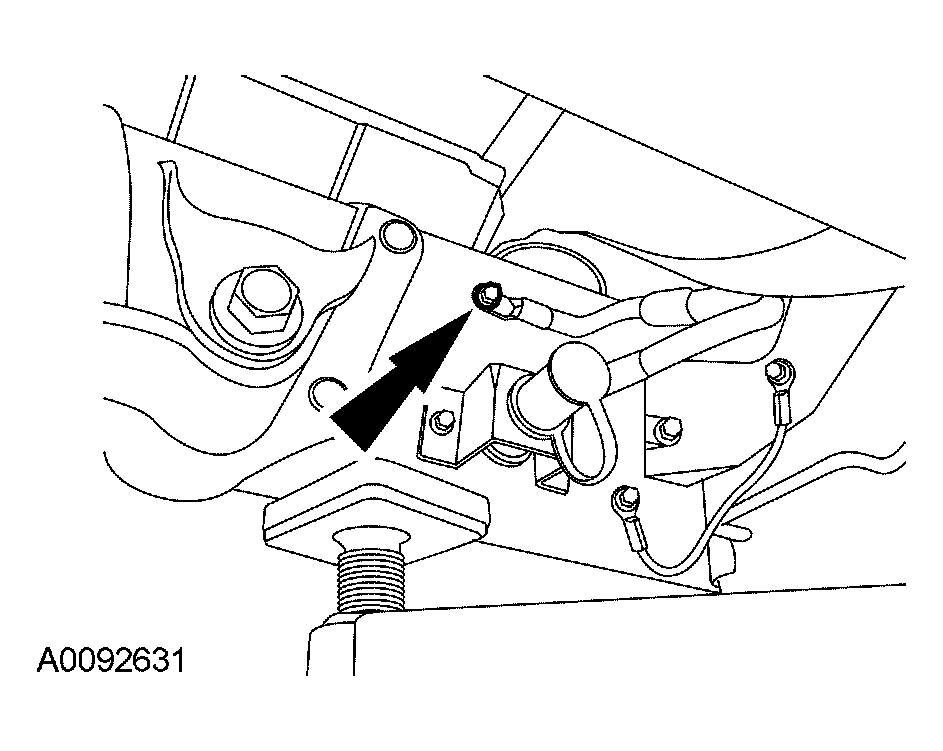

    Fig 2: Disconnecting Secondary Battery Ground Cable
    G03890353Courtesy of FORD MOTOR CO.
  1. Disconnect the secondary battery ground cable.
