Connect - Vehicles with 4.6L, 5.4L and 6.8L engine

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reconnect the auxiliary battery frame ground.
    Fig 1: Connecting Auxiliary Battery Frame Ground
    G03890350Courtesy of FORD MOTOR CO.
  2. Reconnect the primary battery ground cable.

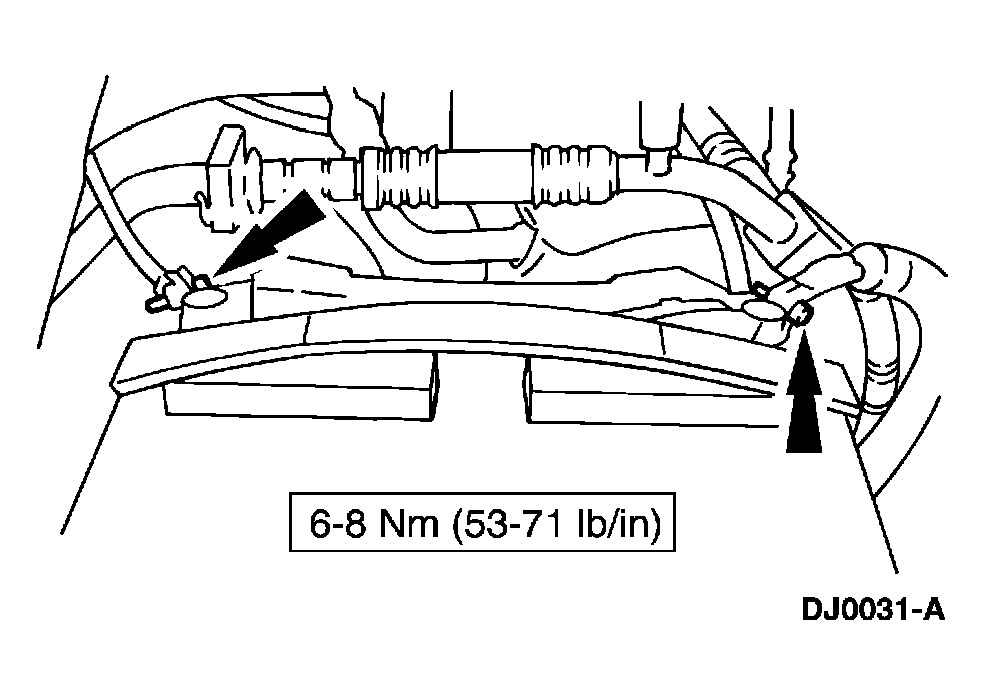

    Fig 2: Connecting Primary Battery Ground Cable
    G03890351Courtesy of FORD MOTOR CO.
