Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, and 2005 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument cluster. For additional information, refer to INSTRUMENT CLUSTER .

NOTE: Remove the desired miniature bulb by turning it a quarter turn counterclockwise.

Remove the instrument cluster bulbs.
1. Remove the warning indicator bulbs.
2. Remove the illumination bulbs.

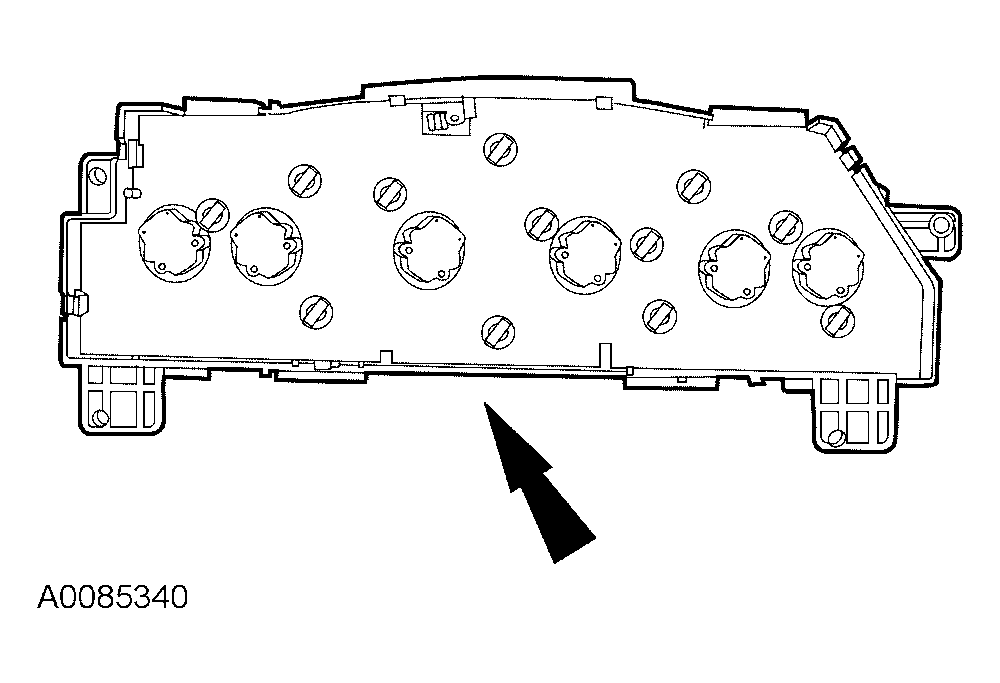

  Fig 1: Removing Instrument Cluster Bulbs
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
