Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, and 2005 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster. For additional information, refer to INSTRUMENT CLUSTER .
  2. Disengage the 4 locking tabs and remove the instrument cluster lens.

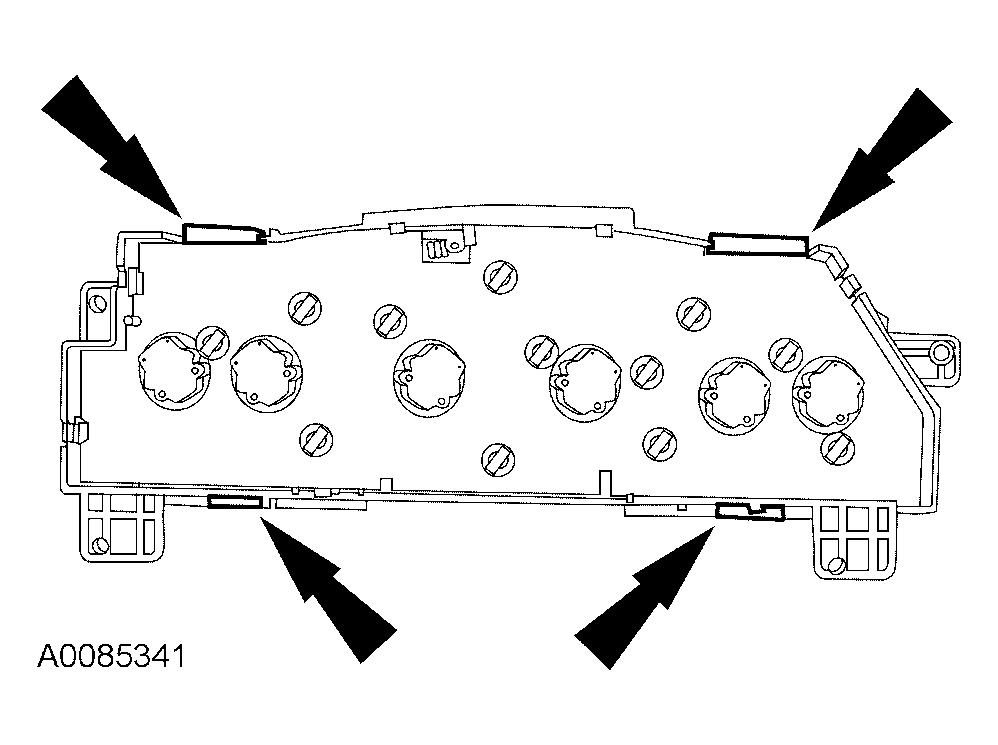

    Fig 1: Disengaging Locking Tabs
    G03890264Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
