Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support vehicle. For additional information, refer to JACKING & LIFTING .

NOTE: Clean off dirt and debris that may have collected around the rear wheel speed sensor before removal.

Remove the rear wheel speed sensor.
1. Disconnect the electrical connector.
2. Remove the bolt.

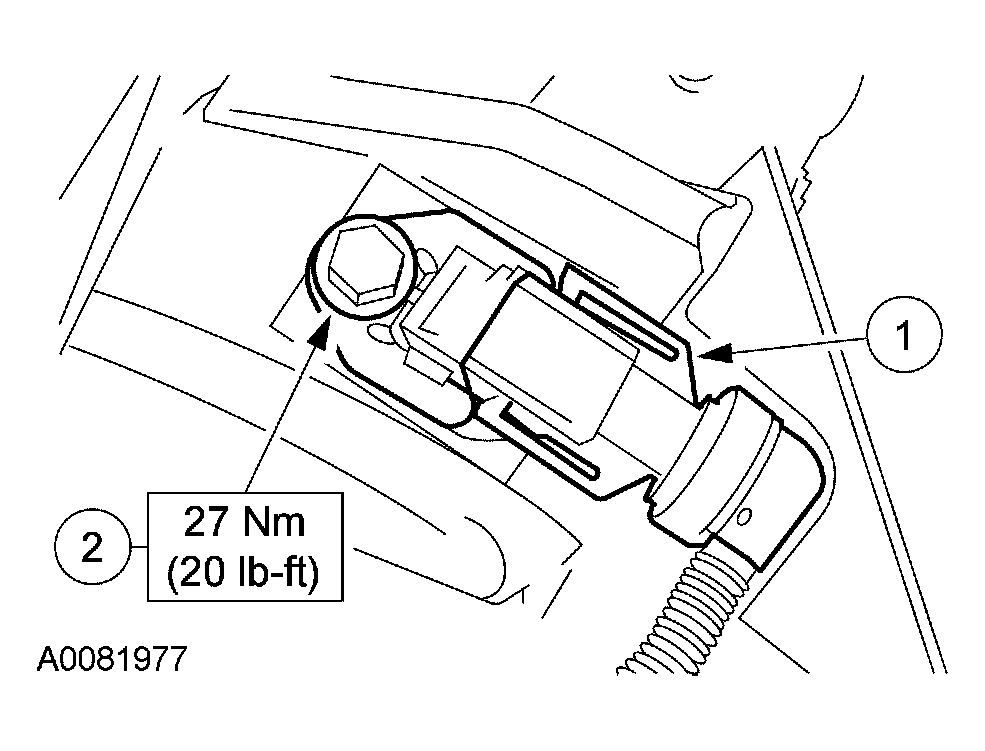

  Fig 1: Disconnecting Electrical Connector
  Courtesy of FORD MOTOR CO.

NOTE: Thoroughly clean the mounting surface.

NOTE: Inspect the wheel speed sensor O-ring for damage. Lightly lubricate the O-ring with SAE-75W-140 High Performance Rear Axle Lubricant FITZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A.

To install, reverse the removal procedure.
