Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Detach the front anti-lock brake system (ABS) sensor wire from the front brake hose.
1. Disconnect the electrical connector.
2. Detach the sensor wire from the retainers.

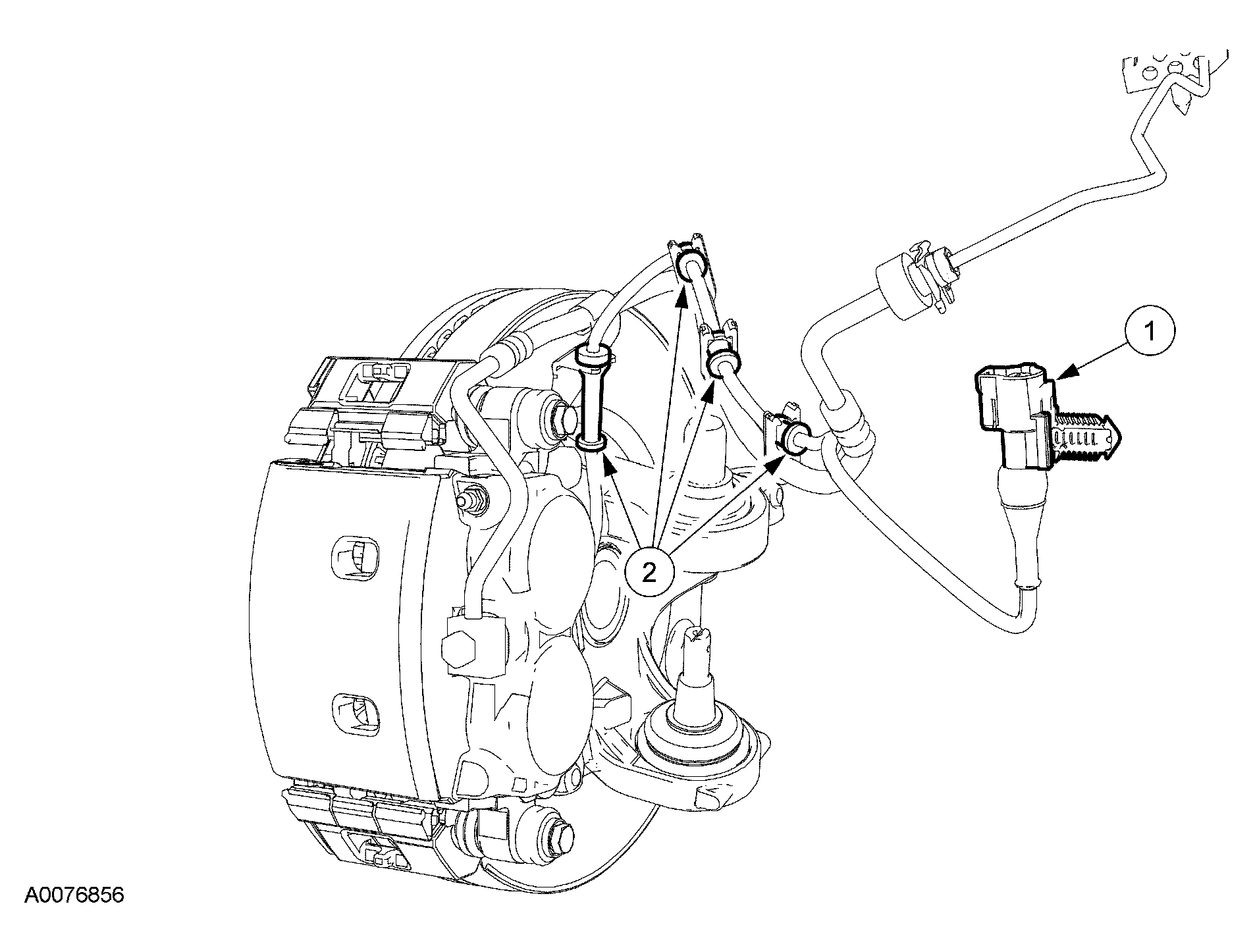

  Fig 1: Detaching Sensor Wire From Retainers
  Courtesy of FORD MOTOR CO.
Remove the front disc brake rotor. For additional information, refer to FRONT DISC BRAKE .
Remove the front ABS sensor.
1. Remove the bolt

  Fig 2: Removing Front ABS Sensor
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
