Brake Vacuum Pump

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

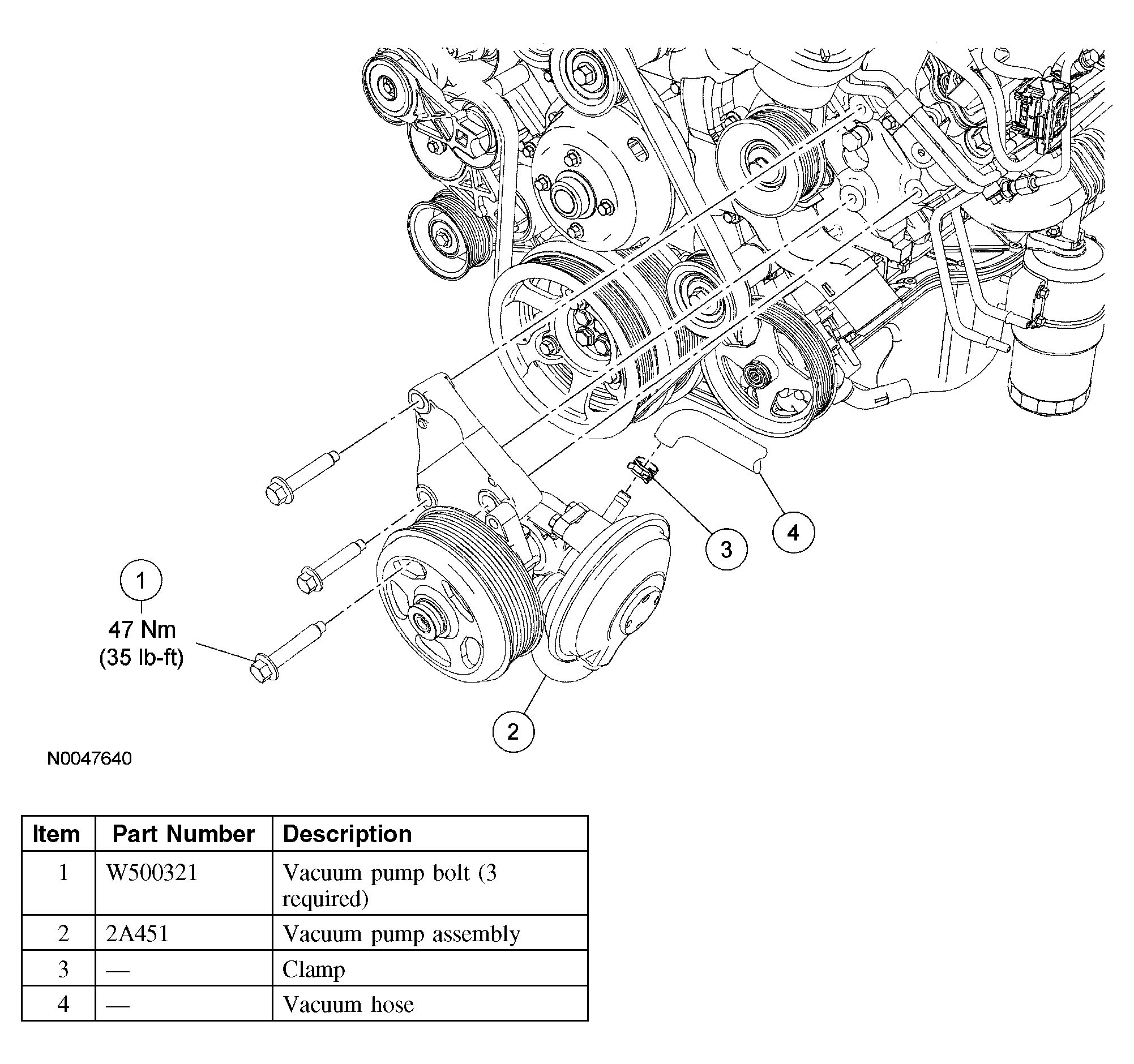

Fig 1: Removing Brake Vacuum Pump

Courtesy of FORD MOTOR CO.

Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
Release the clamp and disconnect the vacuum hose.

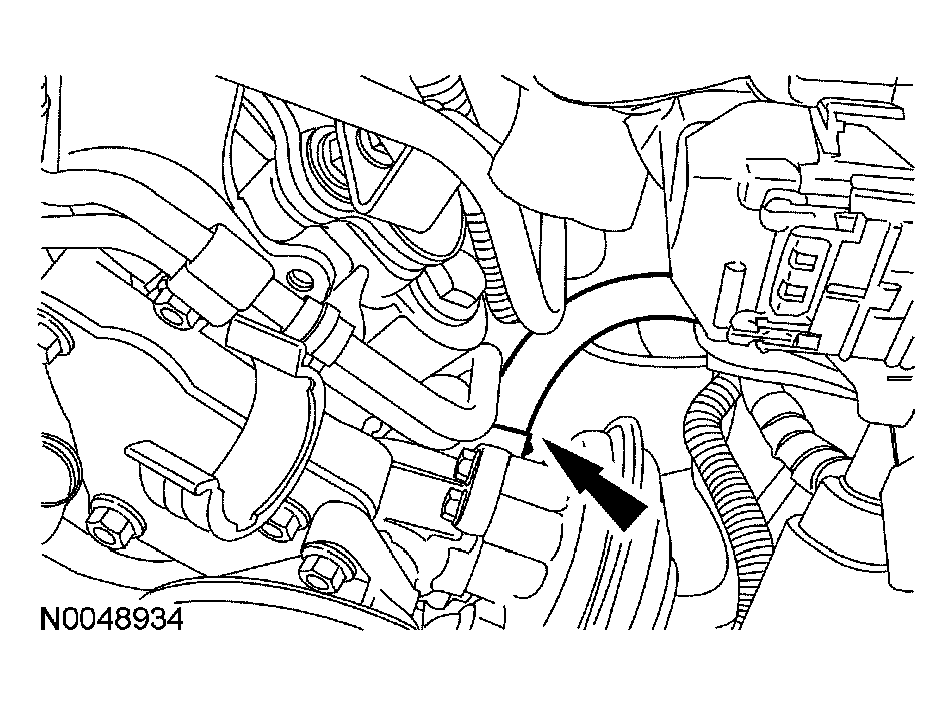

Fig 2: Disconnecting Vacuum Hose
Courtesy of FORD MOTOR CO.

NOTE: The bolt behind the pulley is accessed through the pulley with an extension and a short socket.

Remove the 3 bolts and the vacuum pump.
- To install, tighten to 47 Nm (35 lb-ft).

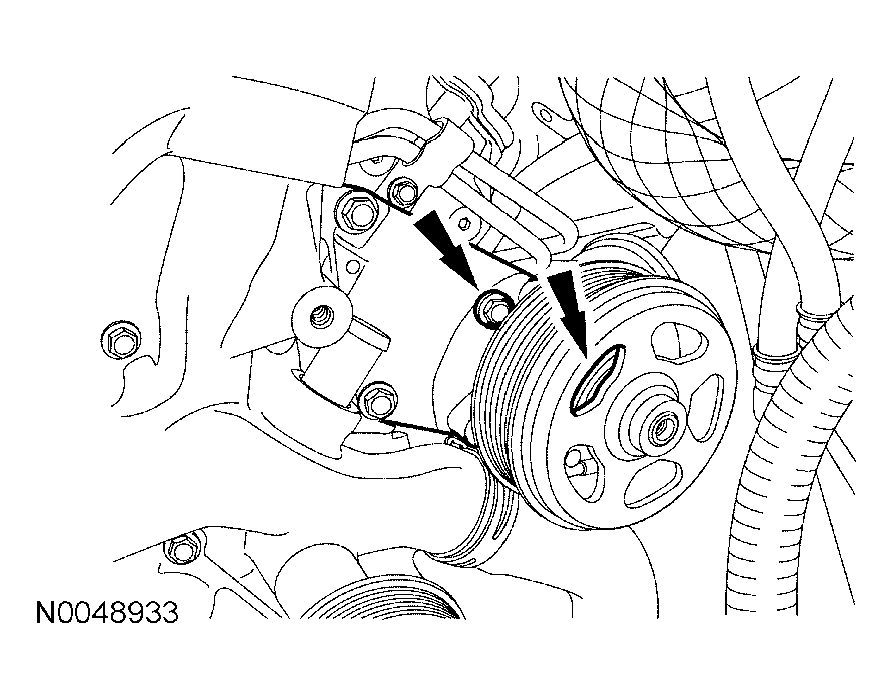

  Fig 3: Removing Bolts Of Vacuum Pump
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
