Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Release the fuse block assembly from the brake pedal bracket and position aside.

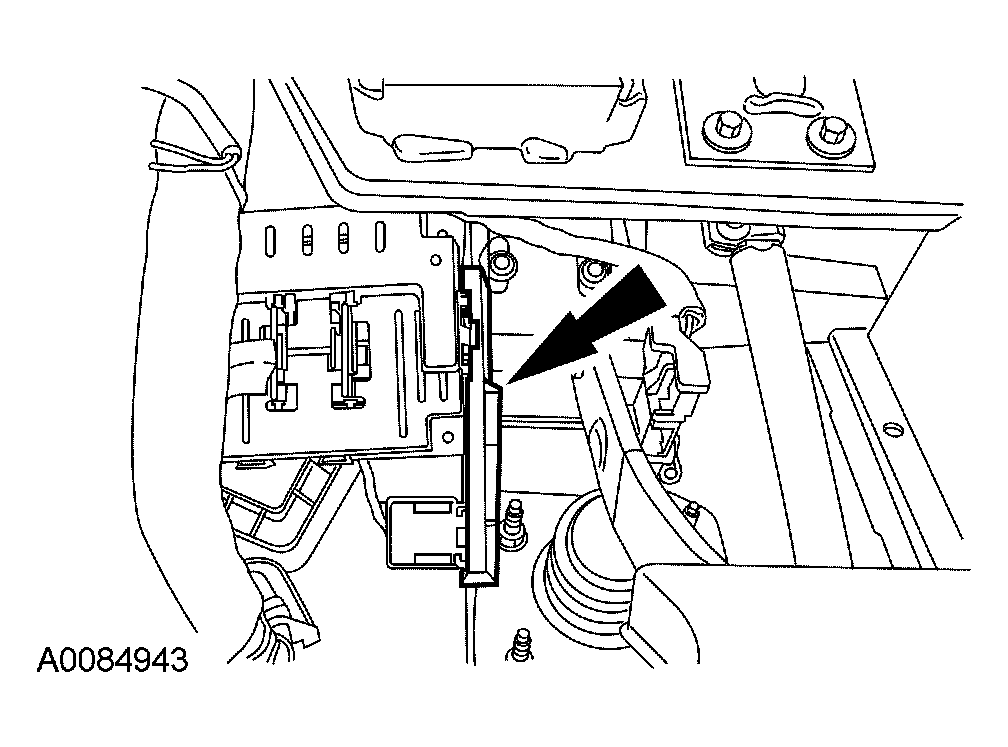

Fig 1: Releasing Fuse Block Assembly From Brake Pedal Bracket
Courtesy of FORD MOTOR CO.
Disconnect the brake booster push rod.
1. Remove the stoplamp switch self-locking clip.
2. Remove the stoplamp switch.
3. Remove the brake booster push rod bushing.
4. Disconnect the brake booster push rod from the brake pedal pin.

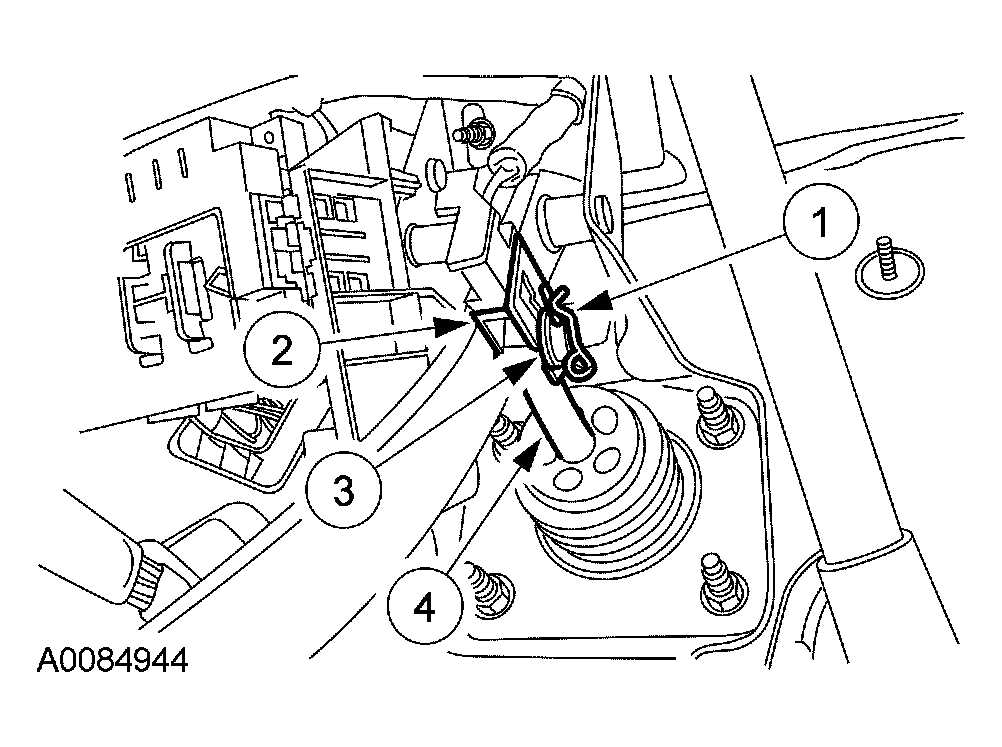

  Fig 2: Disconnecting Brake Booster Push Rod
  Courtesy of FORD MOTOR CO.
Remove the brake pedal bracket upper mounting nuts.

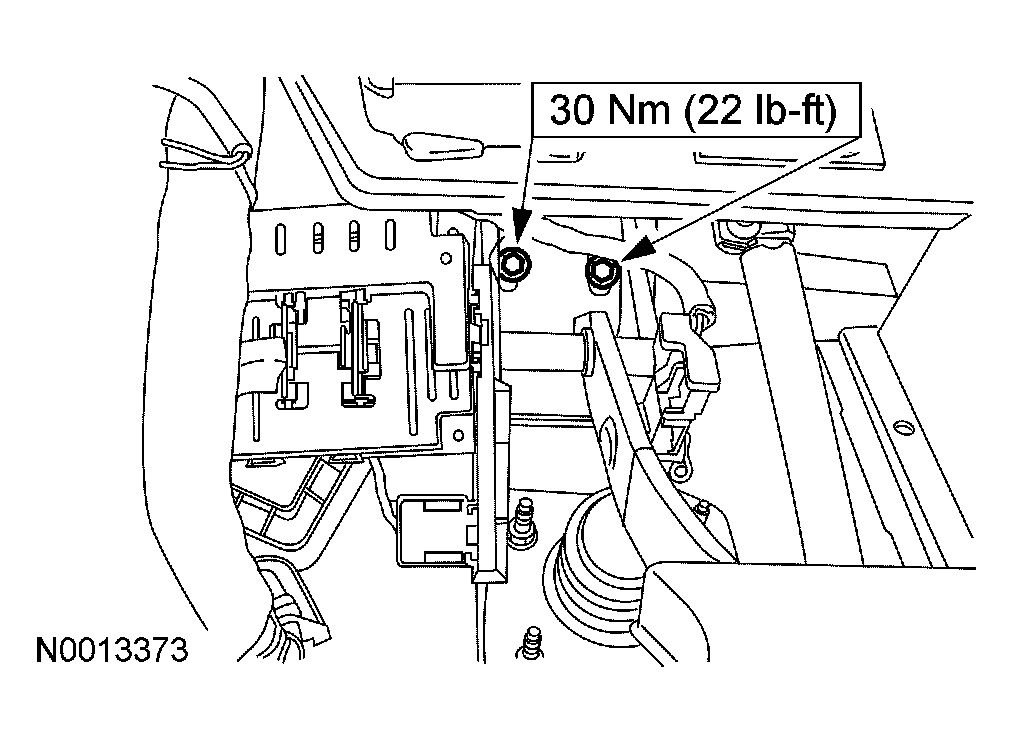

Fig 3: Removing Brake Pedal Bracket Upper Mounting Nuts
Courtesy of FORD MOTOR CO.
Remove the brake booster nuts.

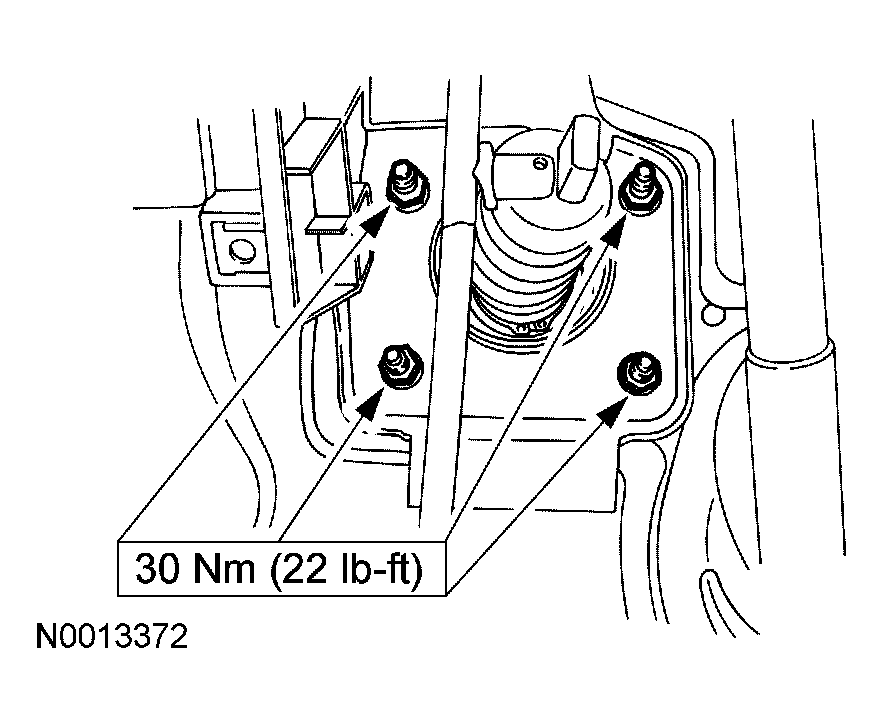

Fig 4: Removing Brake Booster Nuts
Courtesy of FORD MOTOR CO.
Remove the brake pedal and bracket assembly.
To install, reverse the removal procedure.
