Brake Warning System

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The brake warning indicator:

is located in the instrument cluster.
illuminates to signal the driver that the parking brake is applied or to signal a low brake fluid condition.
remains lit to indicate a brake system concern has occurred.

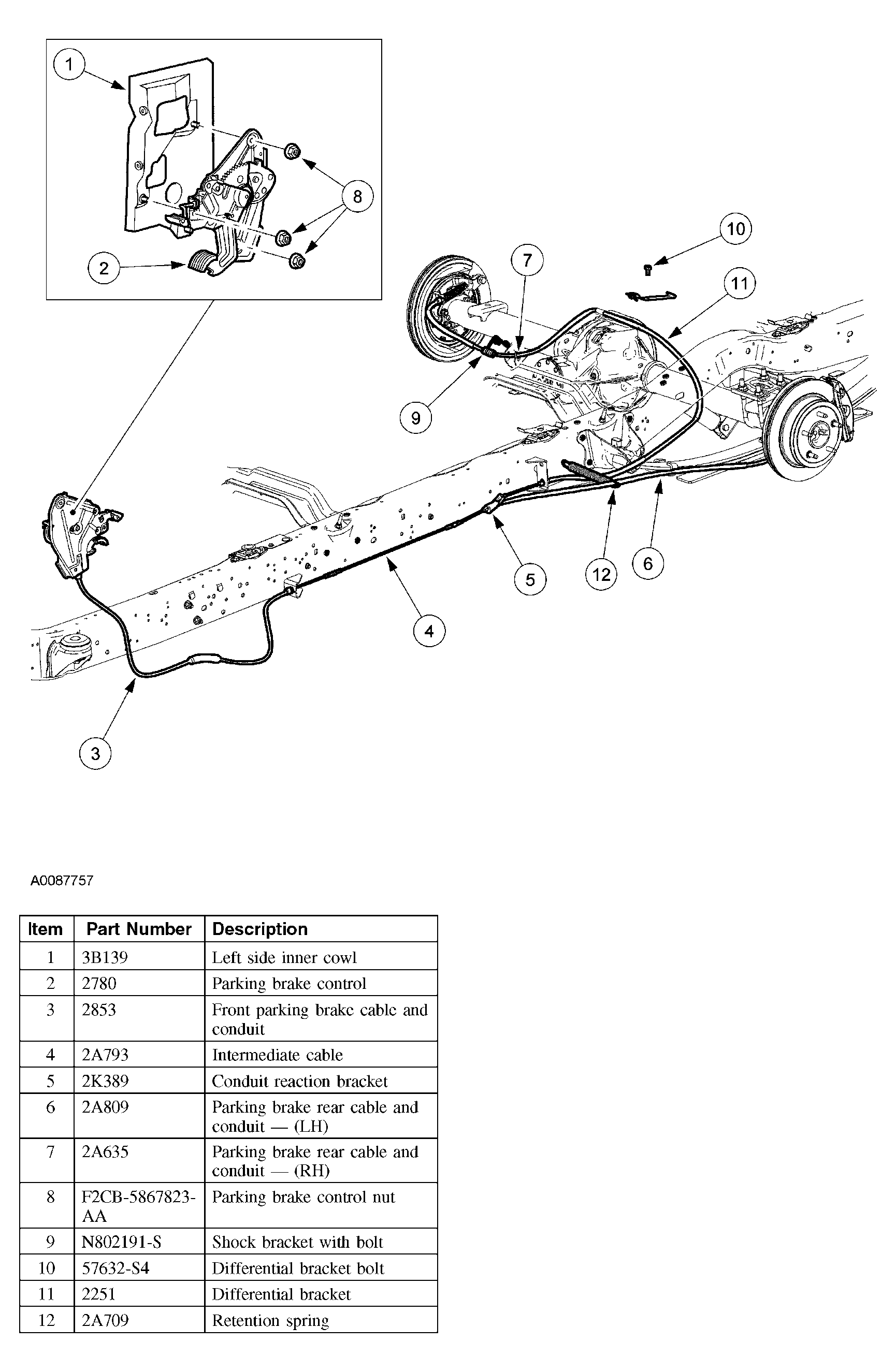

Fig 1: Identifying Parking Brake System - E-150, E-250, E-350 Components

Courtesy of FORD MOTOR CO.

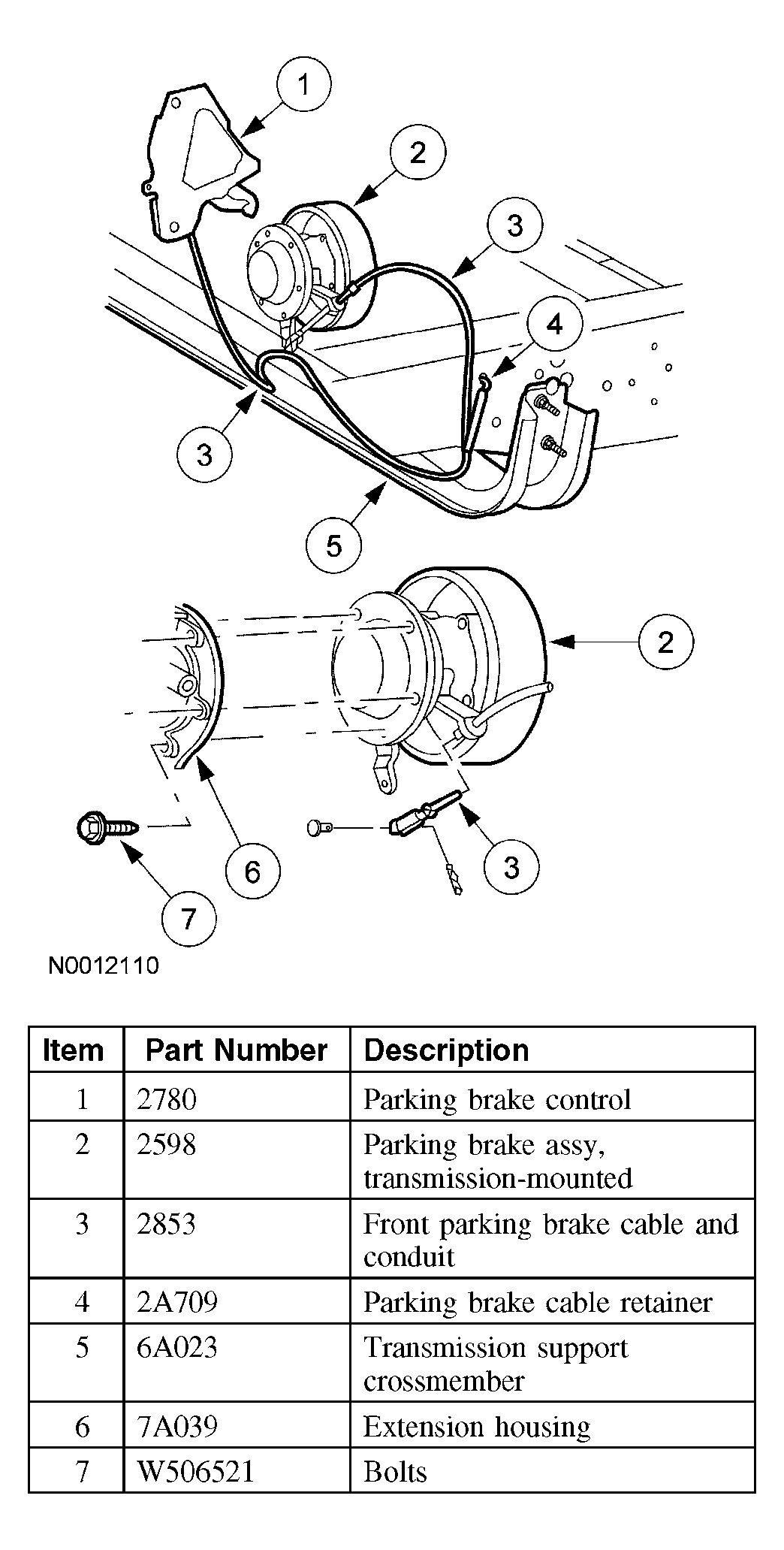

Fig 2: Identifying Parking Brake - E-150, E-350 Components

Courtesy of FORD MOTOR CO.

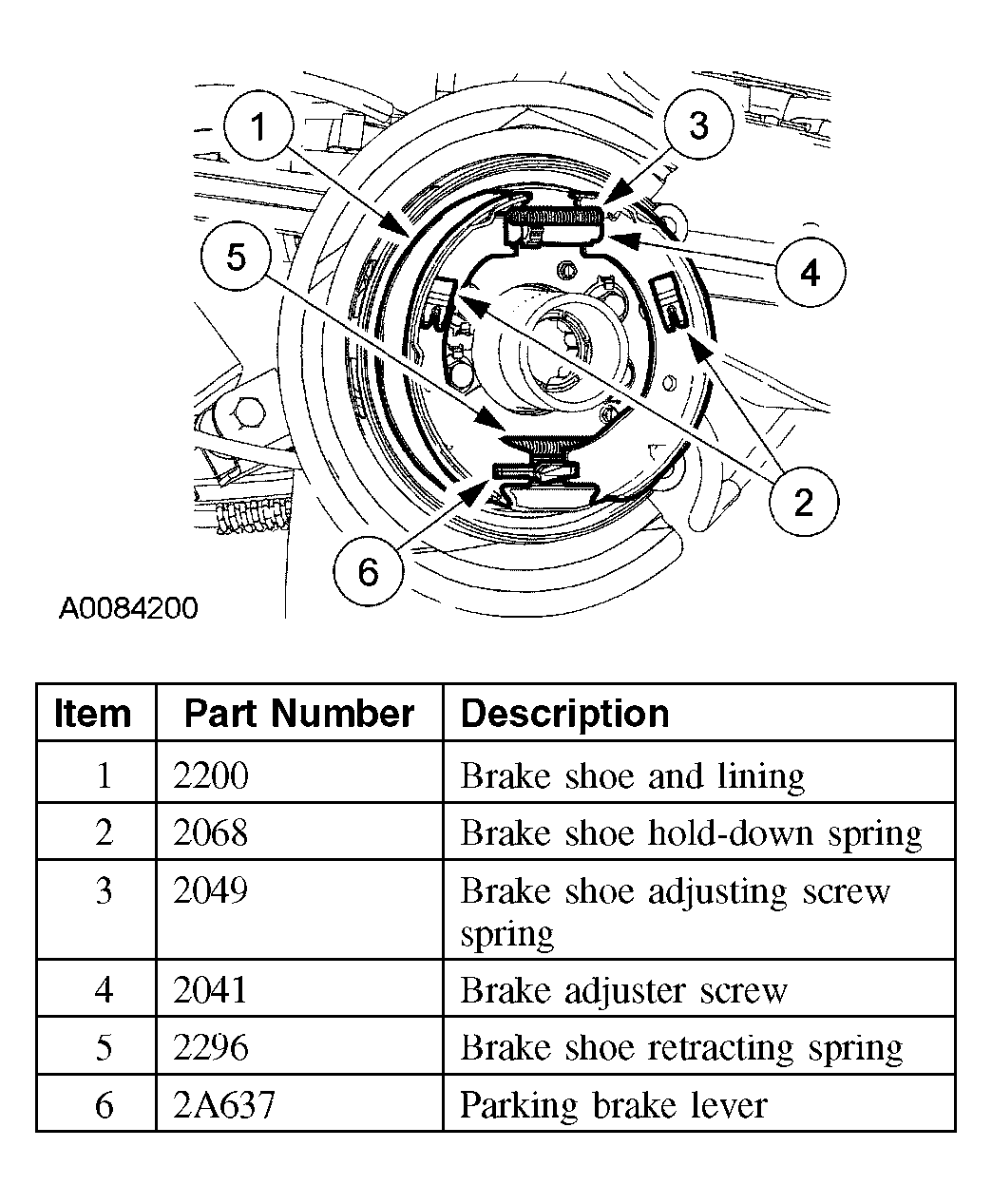

Fig 3: Identifying Parking Brake Components - E-450 Components

Courtesy of FORD MOTOR CO.
