Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tire and wheel assembly. For additional information, refer to WHEELS & TIRES .
  2. Remove the brake disc shield bolts.
    Fig 1: Removing Brake Disc Shield Bolts
    G03884735Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.

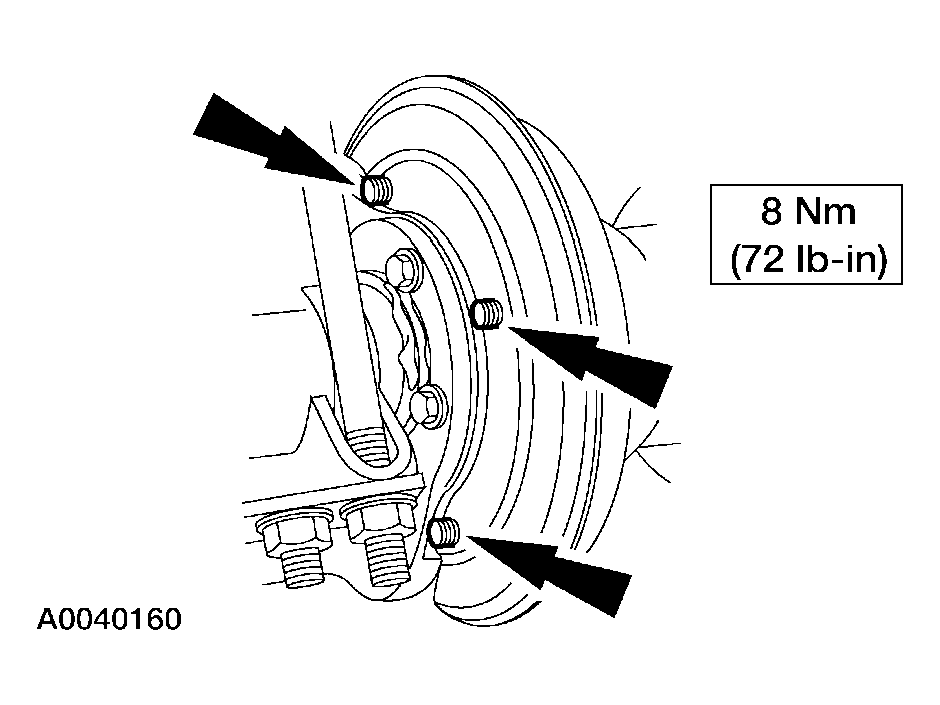

    Fig 2: Locating Nut
    G03884738Courtesy of FORD MOTOR CO.
