Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the anchor plate. For additional information, refer to BRAKE CALIPER ANCHOR PLATE - E-250, E-350 .
  2. Mark the brake disc.
    Fig 1: Marking Brake Disc
    G03884723Courtesy of FORD MOTOR CO.
  3. Remove the brake disc.

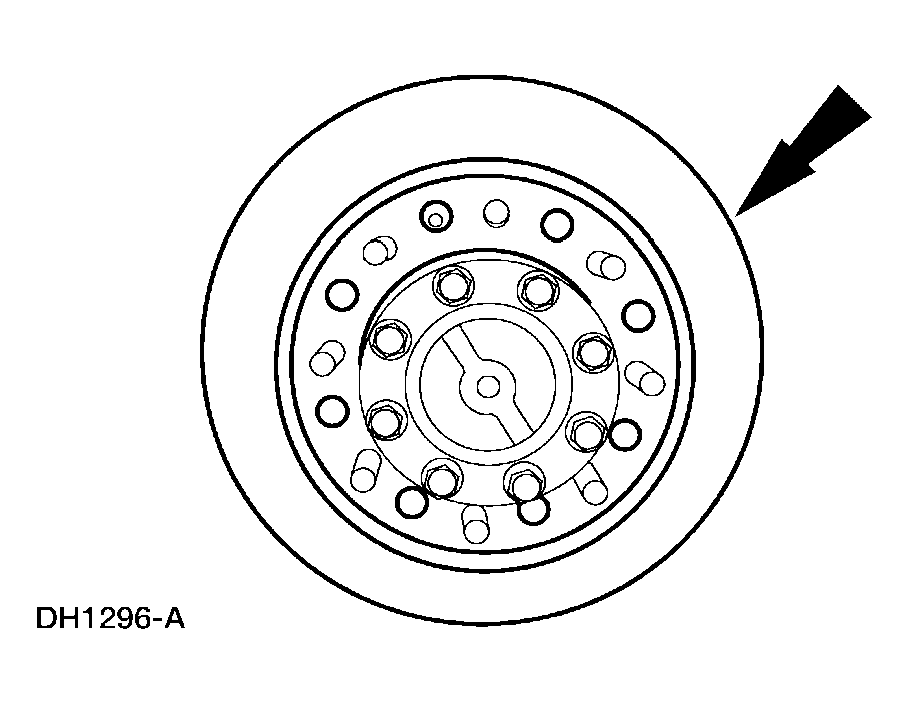

    Fig 2: Removing Brake Disc
    G03884724Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
