Rear Brake Pads - E-450: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Press the caliper pistons to the bottom of the caliper bores.

Fig 1: Pressing Caliper Pistons To Bottom Of Caliper Bores
Courtesy of FORD MOTOR CO.
Install the brake pads.
1. Position the outboard brake pad anti-rattle spring, and slide the brake pad down until the retaining lugs are seated in the notch.

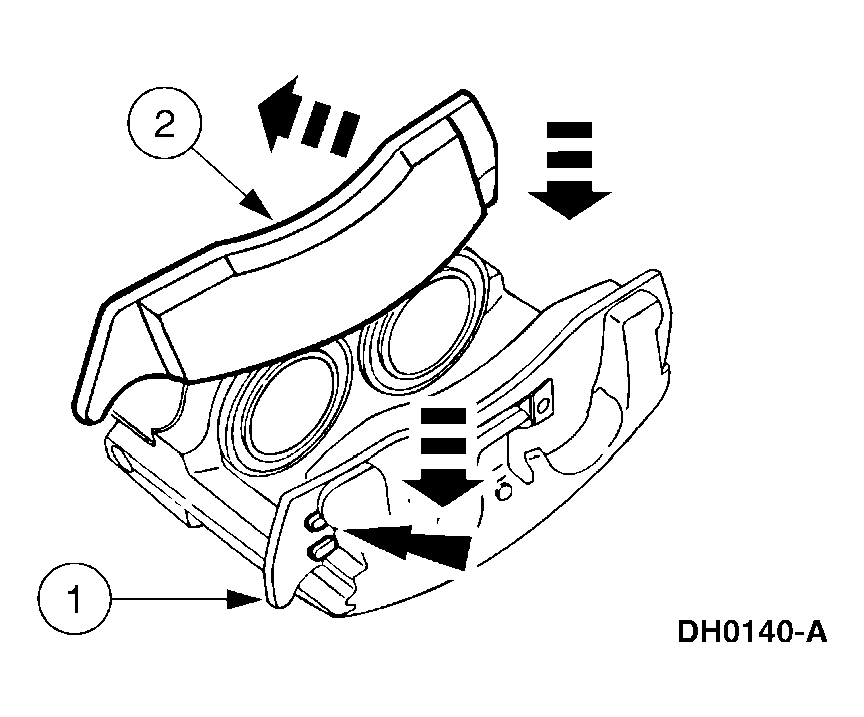

2. Position the inboard brake pad and seat the anti-rattle springs in the caliper pistons.

  Fig 2: Positioning Inboard Brake Pad And Seat Anti-Rattle Springs In Caliper Pistons
  Courtesy of FORD MOTOR CO.
Coat the caliper locking keys and the caliper locking grooves with silicone brake caliper grease.

Fig 3: Locking Keys And Caliper Locking Grooves With Silicone Brake Caliper Grease
Courtesy of FORD MOTOR CO.
Tilt the rear disc brake caliper into the support bracket.

Fig 4: Tilting Rear Disc Brake Caliper Into Support Bracket
Courtesy of FORD MOTOR CO.
Start the caliper locking pin in the caliper locking groove.

Fig 5: Starting Caliper Locking Pin In Caliper Locking Groove
Courtesy of FORD MOTOR CO.
Using the Brake Caliper Pin Remover, drive the caliper locking pin into the caliper locking groove until the retention tabs emerge.

Fig 6: Removing Brake Caliper Pin
Courtesy of FORD MOTOR CO.
Repeat for the other caliper locking pin.
Install the tire and wheel assembly. For additional information, refer to WHEELS & TIRES .
Lower the vehicle.
Check and, if necessary, fill the brake master cylinder reservoir.
