Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Brake fluid contains polyglycolethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.
CAUTION: Brake fluid is harmful to painted or plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.
  1. Remove the brake master cylinder filler cap. Check the brake fluid level in the brake master cylinder reservoir. Remove fluid until the brake master cylinder reservoir is half full.
  2. Remove the wheel and tire assembly. For additional information, refer to WHEELS & TIRES .
  3. Inspect the brake pads for wear or contamination. If worn, damaged or past specification, install new components.
  4. Remove the caliper pin bolts.

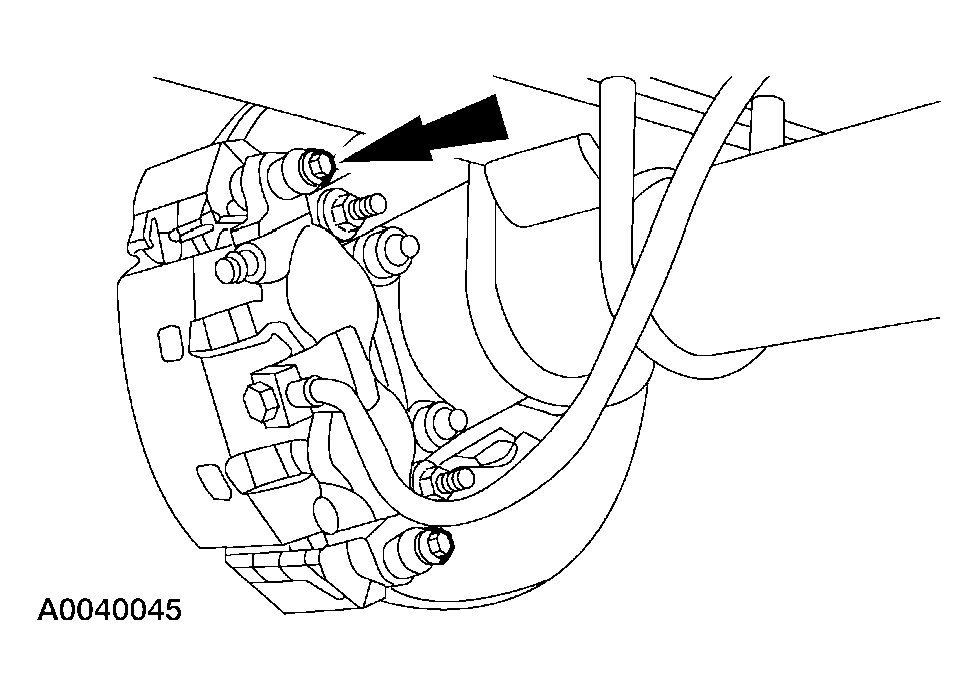

    Fig 1: Removing Caliper Pin Bolts
    G03884706Courtesy of FORD MOTOR CO.
    5. CAUTION: Never allow the rear disc brake caliper to hang from the brake hose. Provide suitable support.

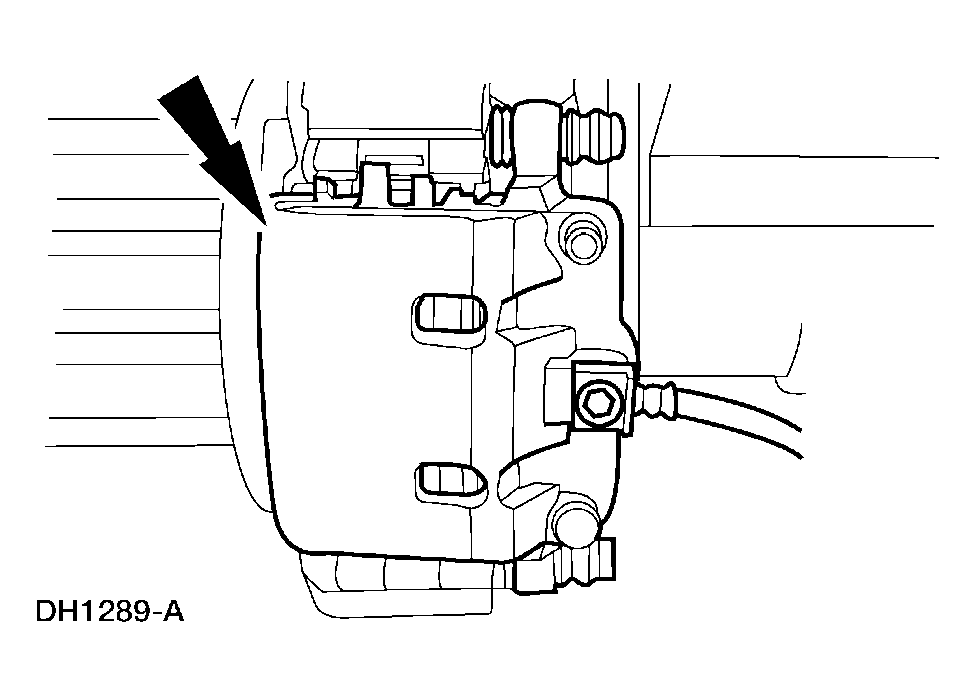

    Fig 2: Removing Rear Disc Brake Caliper
    G03884707Courtesy of FORD MOTOR CO.
  5. Remove the rear disc brake caliper.
  6. Remove the brake pads and rail clips.

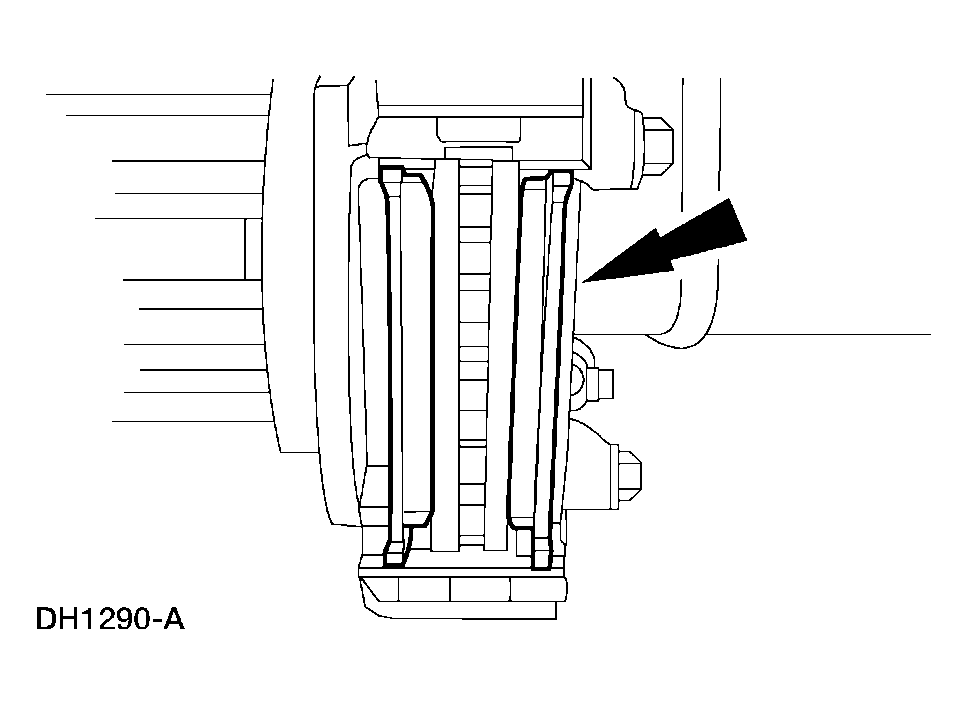

    Fig 3: Removing Brake Pads And Rail Clips
    G03884708Courtesy of FORD MOTOR CO.
  7. Measure the rear brake disc thickness.
    • Install a new rear brake disc if not within specification.
      Fig 4: Installing New Rear Brake Disc
      G03884709Courtesy of FORD MOTOR CO.
  8. Inspect the rear disc brake caliper for leaks.
    • If leaks are found, disassembly is required. For additional information, refer to BRAKE CALIPER .
      Fig 5: Inspecting Rear Disc Brake Caliper For Leaks
      G03878795Courtesy of FORD MOTOR CO.
  9. To install, reverse the removal procedure.
    Fig 6: Locating Bolts
    G03884688Courtesy of FORD MOTOR CO.
