Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the brake disc. For additional information, refer to WHEEL HUBS AND BEARINGS - FULL FLOATING AXLE - DANA .
Remove the brake disc shield bolts.

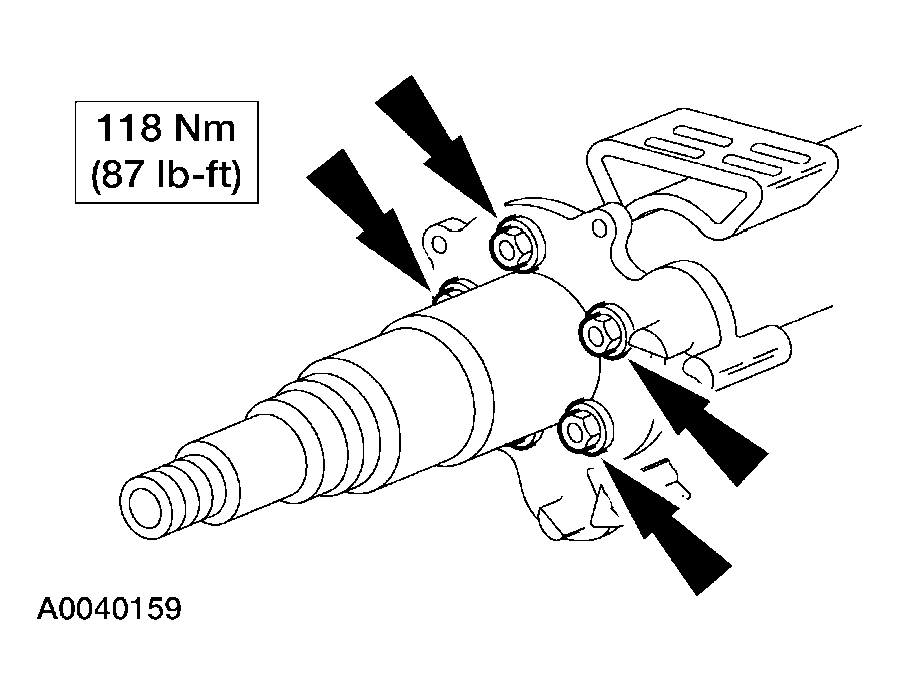

Fig 1: Removing Brake Disc Shield Bolts
Courtesy of FORD MOTOR CO.
Remove the support bracket nuts, and remove the bracket.

Fig 2: Removing Support Bracket Nuts, And Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Fig 3: Locating Bolt
Courtesy of FORD MOTOR CO.

Fig 4: Locating Bolt
Courtesy of FORD MOTOR CO.
