Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear disc brake caliper anchor plate. For additional information, refer to BRAKE CALIPER .
  2. Remove the brake disc and hub. For additional information, refer to WHEEL HUBS AND BEARINGS - FULL FLOATING AXLE - DANA .
  3. Remove the parking brake shoes. For additional information, refer to PARKING BRAKE & ACTUATION .
  4. Disconnect the parking brake cable and conduit.

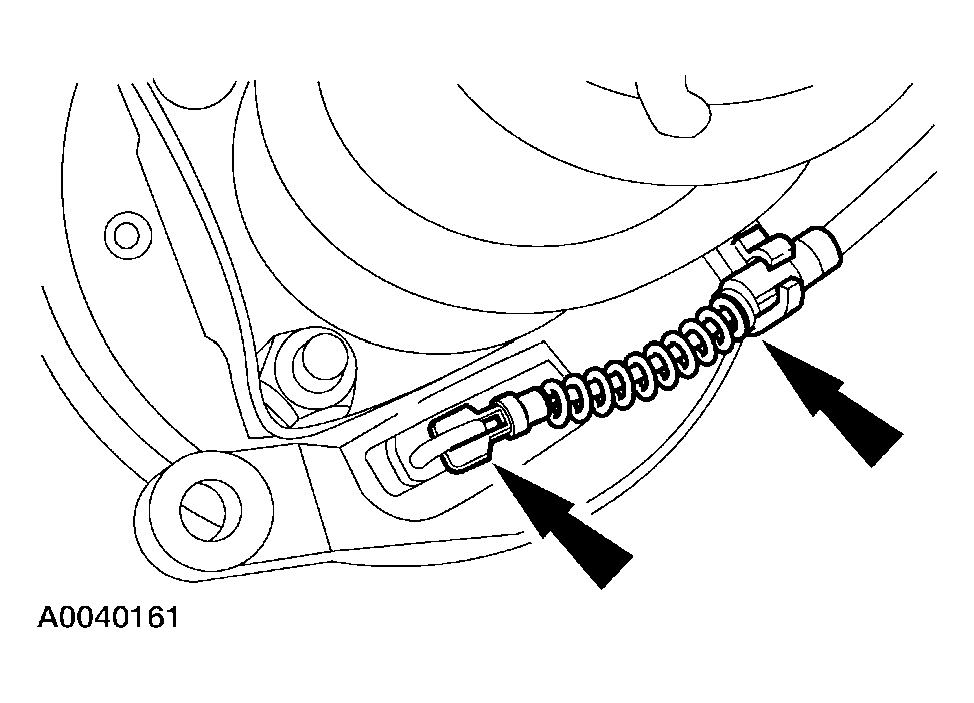

    Fig 1: Disconnecting Parking Brake Cable And Conduit
    G03884732Courtesy of FORD MOTOR CO.
  5. Remove the adapter nuts.
    Fig 2: Removing Adapter Nuts
    G03884733Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
    Fig 3: Locating Bolt
    G03884734Courtesy of FORD MOTOR CO.
