Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear disc brake caliper anchor plate. For additional information, refer to BRAKE CALIPER ANCHOR PLATE - E-150 .
Index and remove the rear disc.

Fig 1: Identifying Index-Mark
Courtesy of FORD MOTOR CO.
Remove the parking brake shoes. For additional information, refer to PARKING BRAKE & ACTUATION .
Remove the rear axle shaft. For 8.8-inch ring gear, refer to REAR DRIVE AXLE/DIFFERENTIAL - DANA 60 AND 70 . For 9.75-inch ring gear, refer to REAR DRIVE AXLE/DIFFERENTIAL - FORD 9.75-INCH RING GEAR .
Disconnect the parking brake cable and conduit.

Fig 2: Disconnecting Parking Brake Cable And Conduit
Courtesy of FORD MOTOR CO.

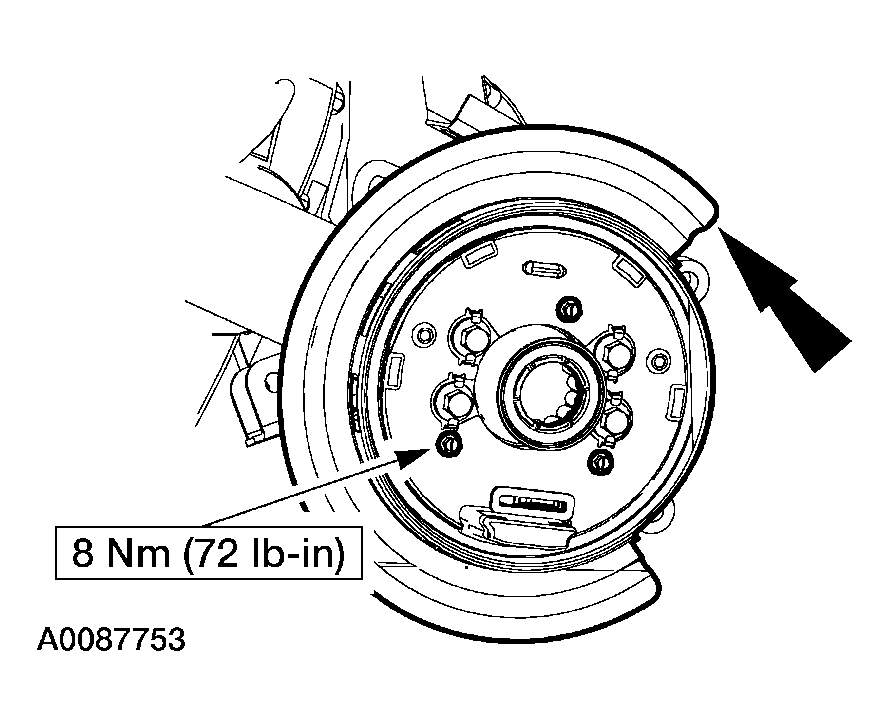

Remove the three screws and the rear brake disc shield.

Fig 3: Removing Three Screws And Rear Brake Disc Shield
Courtesy of FORD MOTOR CO.

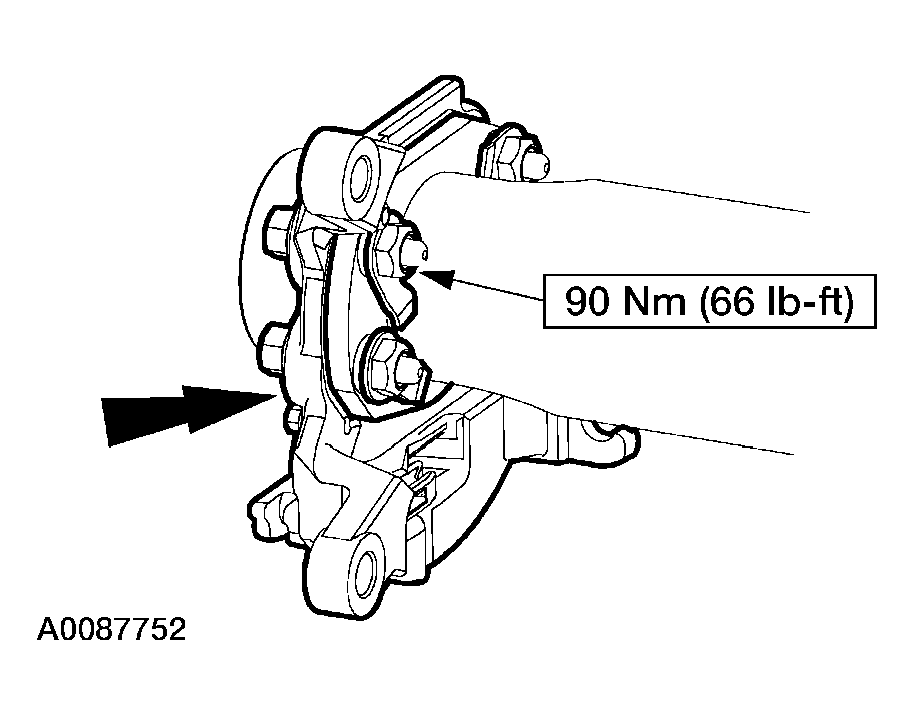

Remove the four nuts and remove the brake caliper support bracket.

Fig 4: Removing Four Nuts And Brake Caliper Support Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
