Rear Brake Caliper - E-450: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Coat the caliper locking keys and the caliper locking grooves with silicone brake caliper grease.

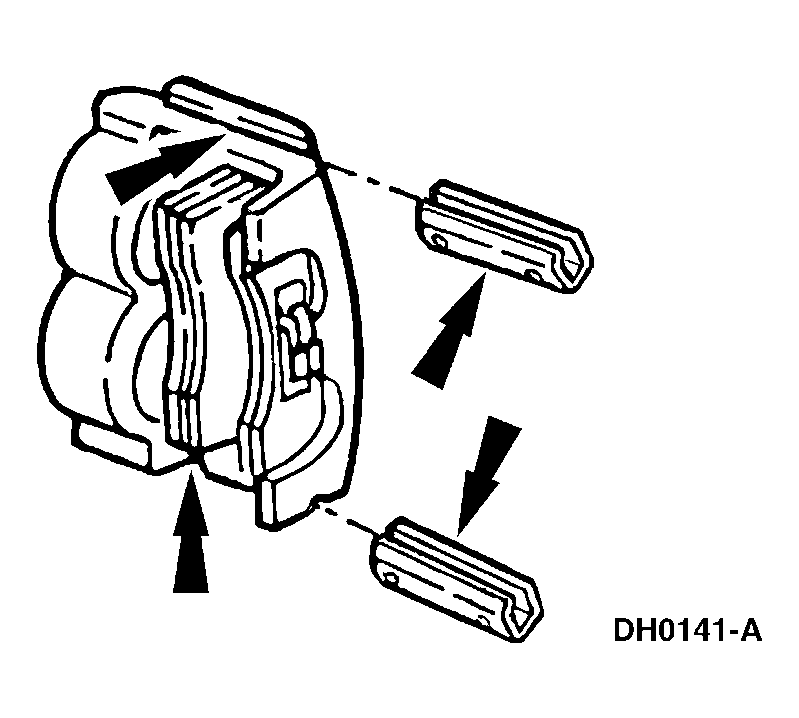

Fig 1: Coating Caliper Locking Keys And Caliper Locking Grooves With Silicone Brake Caliper Grease
Courtesy of FORD MOTOR CO.
Tilt the rear disc brake caliper into the support bracket.

Fig 2: Tilting Rear Disc Brake Caliper Into Support Bracket
Courtesy of FORD MOTOR CO.
Start the caliper locking pin in the caliper locking groove.

Fig 3: Starting Caliper Locking Pin In Caliper Locking Groove
Courtesy of FORD MOTOR CO.
Using the Brake Caliper Pin Remover, drive the caliper locking pin into the caliper locking groove until the retention tabs emerge.

Fig 4: Removing Brake Caliper Pin
Courtesy of FORD MOTOR CO.
Repeat for the other caliper locking pin.
Using new copper washers, install the brake hose flow bolt.

Fig 5: Installing Brake Hose Flow Bolt
Courtesy of FORD MOTOR CO.
Install the tire and wheel assembly. For additional information, refer to WHEELS & TIRES .
Lower the vehicle.
Check and, if necessary, fill the brake master cylinder reservoir.
Bleed the brake system. For additional information, refer to BRAKE SYSTEM-GENERAL INFORMATION .
