Rear Disc Brake: Notes

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The rear brake disc has the following characteristics:

A single piston rear disc brake caliper (E-150)
A two-piston rear disc brake caliper (E-250-450)
A vented-cast, drum-in-hat type rear brake disc
A rear disc brake caliper anchor holds the brake pads
A rear wheel brake disc adapter holds the rear disc brake caliper anchor and the rear wheel disc brake shield

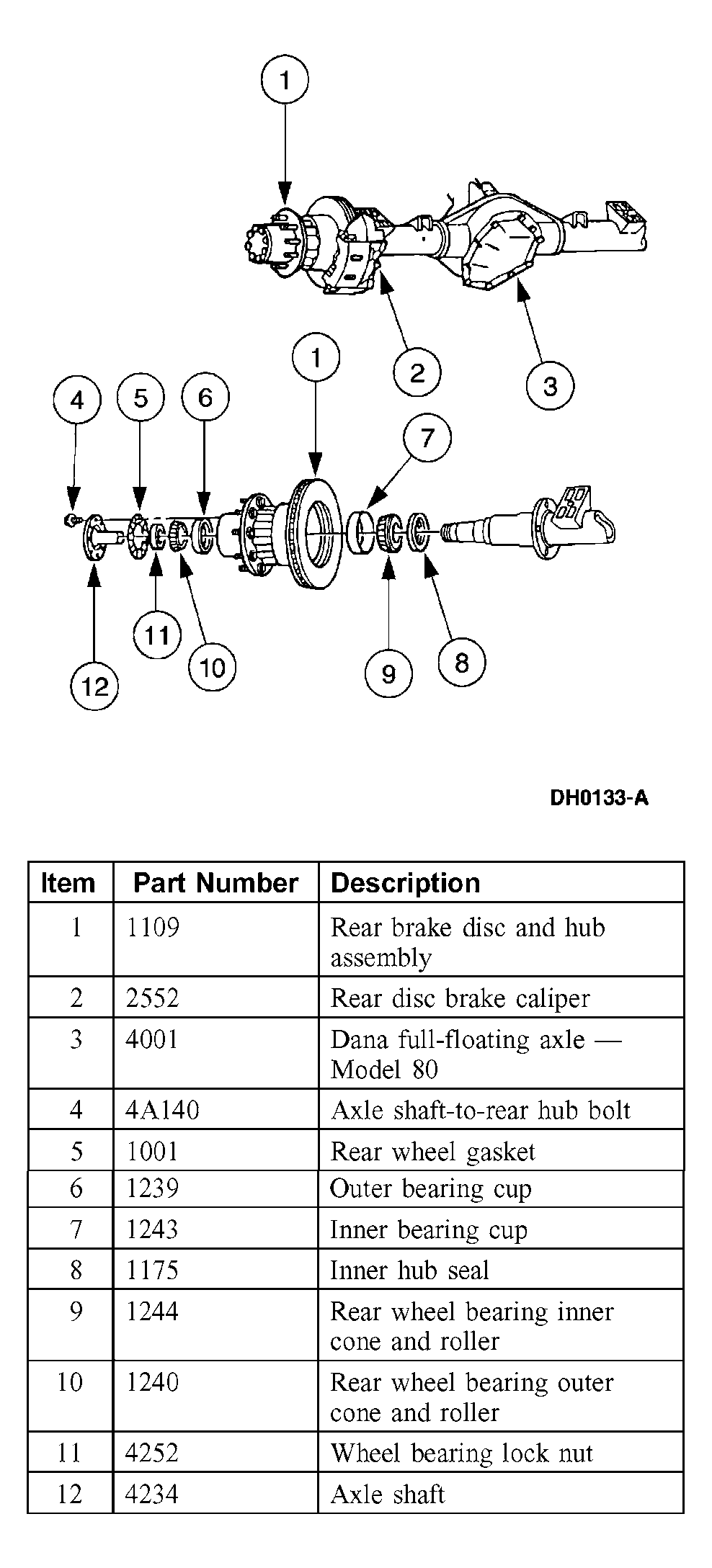

Fig 1: Identifying Rear Disc Brake System Components - Dual Rear Wheel (1 Of 2)

Courtesy of FORD MOTOR CO.

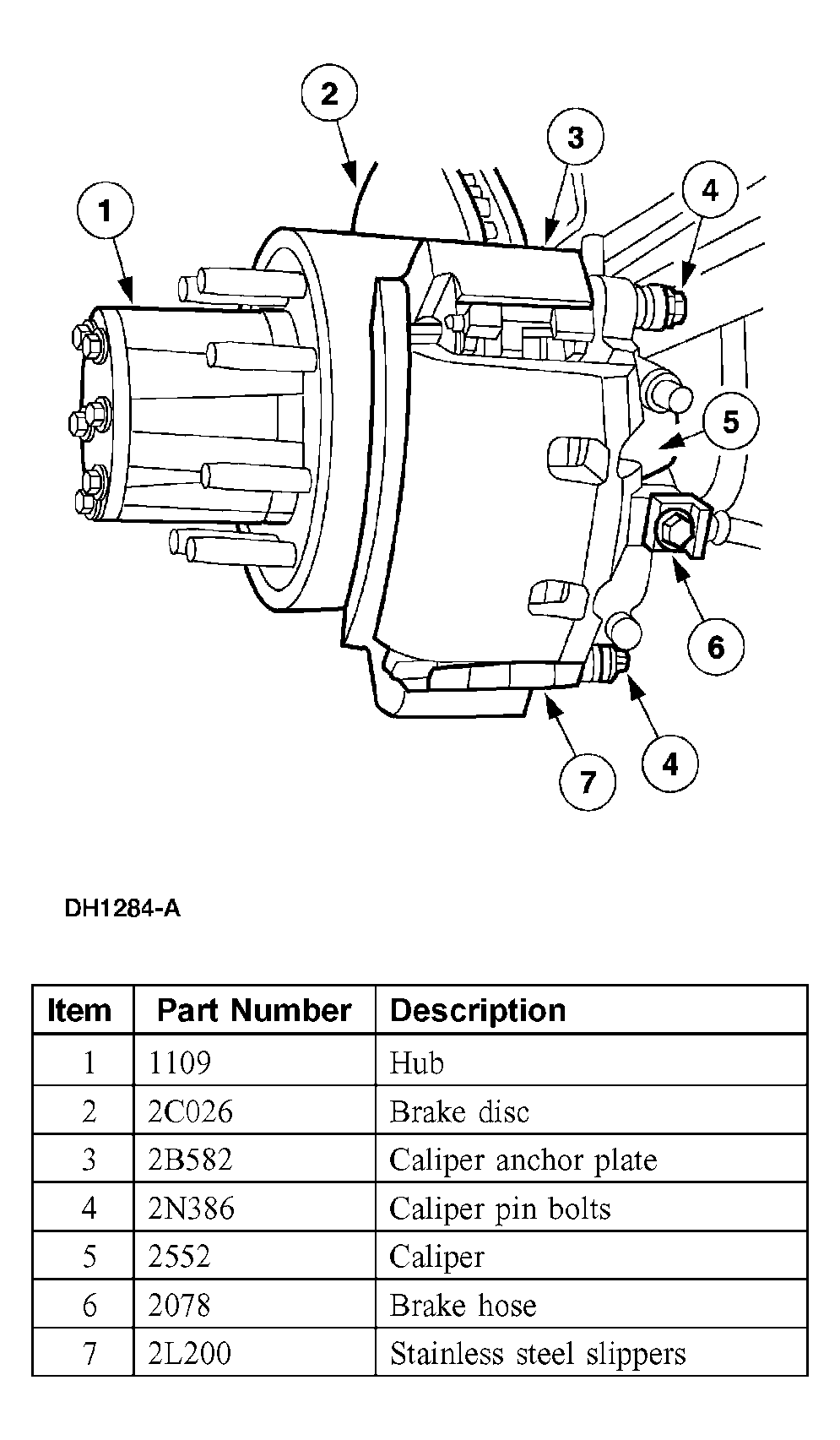

Fig 2: Identifying Rear Disc Brake System Components - Dual Rear Wheel (2 Of 2)

Courtesy of FORD MOTOR CO.
