Front Disc Brake - E-150: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake caliper anchor plate. For additional information, refer to BRAKE CALIPER ANCHOR PLATE .
  2. Remove the brake disc and hub as follows:
    1. Remove the hub grease cap.
    2. Remove the cotter pin.
    3. Remove the nut retainer.
    4. Remove the spindle nut.
    5. Remove the front wheel outer bearing retainer washer.
    6. Remove the outer front wheel bearing.
    7. Remove the brake disc and hub.

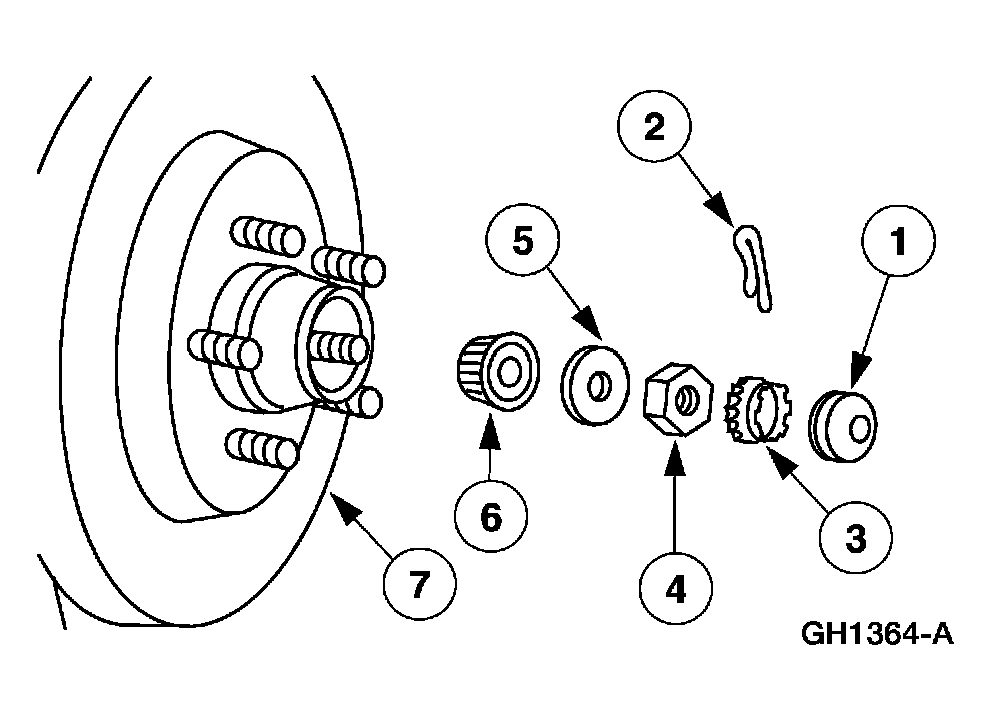

      Fig 1: Removing Brake Disc And Hub
      G03884653Courtesy of FORD MOTOR CO.
  3. If necessary, resurface the brake disc and hub. Ford recommends on-vehicle brake disc machining. Follow the lathe manufacturer's instructions.
    1. Remove the wheel hub grease seal.
    2. Remove the inner front wheel bearing.

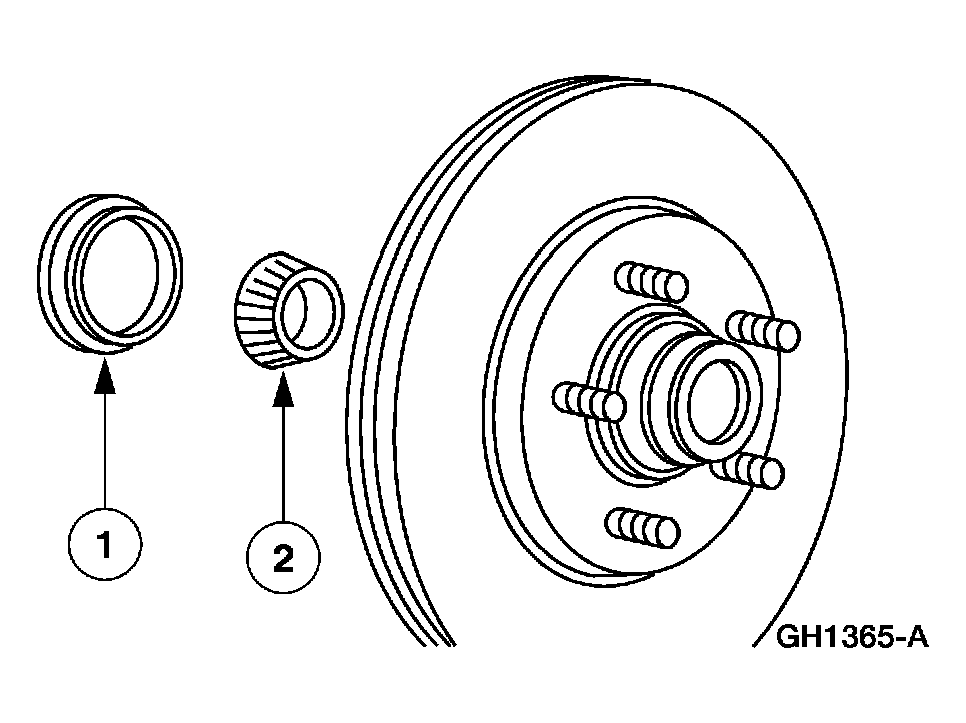

      Fig 2: Removing Inner Front Wheel Bearing
      G03884654Courtesy of FORD MOTOR CO.
