Front Brake Pads: Removal
WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.
- If new pads are to be installed, provide space for the brake fluid displaced from the disc brake caliper.
- Remove and discard enough brake fluid from the brake master cylinder to allow room for the brake fluid displaced when the caliper piston is pressed to the bottom of the caliper bore.
- Remove the tire and wheel assembly. For additional information, refer to WHEELS & TIRES .
- Release the speed sensor wiring from the front brake hose.
- Remove the two disc brake caliper bolts.
- Remove and support the disc brake caliper.
- Inspect:
- the disc brake caliper for brake fluid leakage. If the disc brake caliper is leaking, it must be rebuilt or installed new.

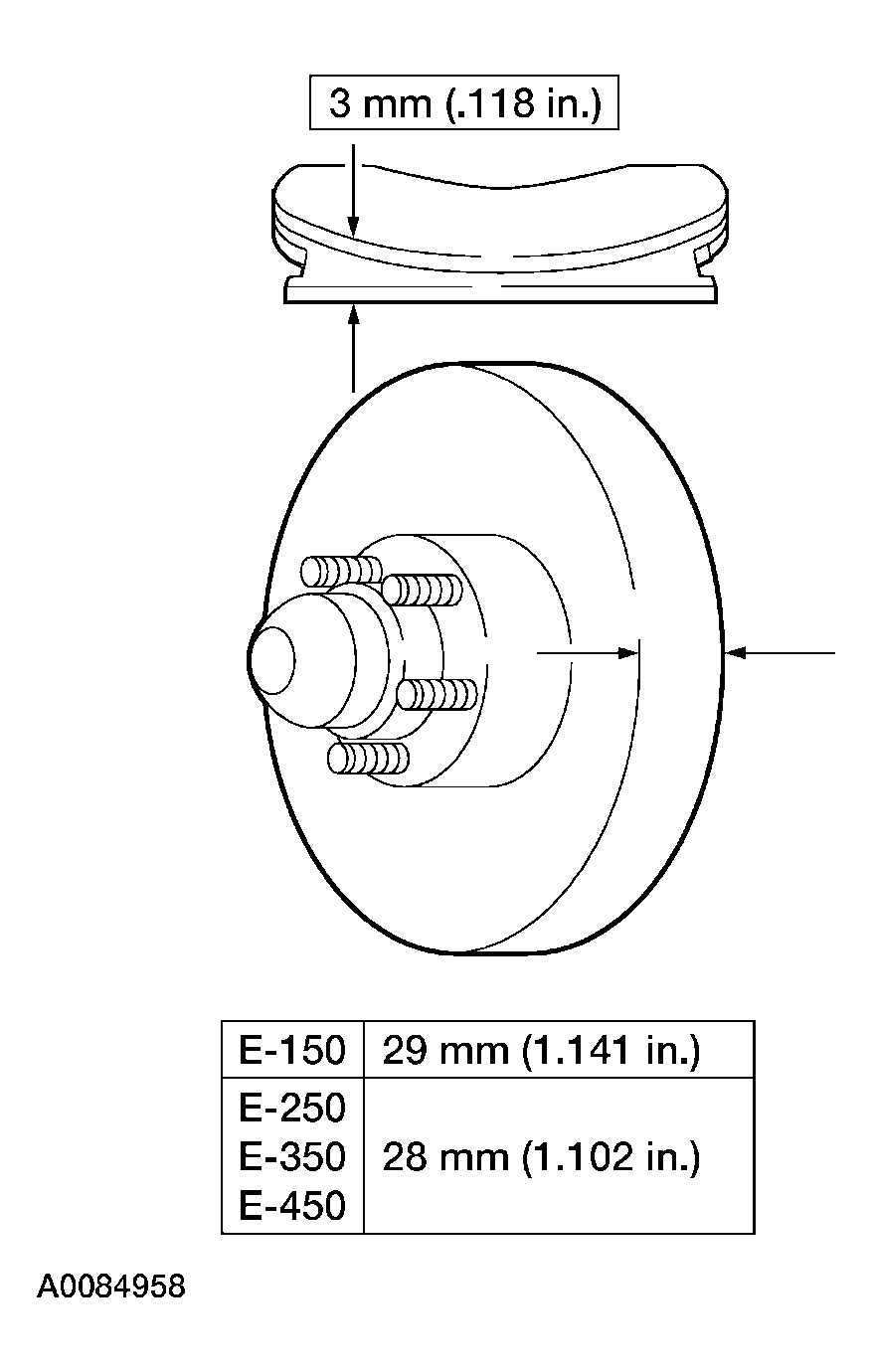

- the pad thickness. Do not install pads worn to or past the specified thickness above the metal backing plate or rivets.
- the pads for contamination. Do not put oil-or grease-contaminated pads on vehicle.
- the brake disc and hub for minimum thickness. Install a new brake disc and hub if worn to or below minimum thickness.

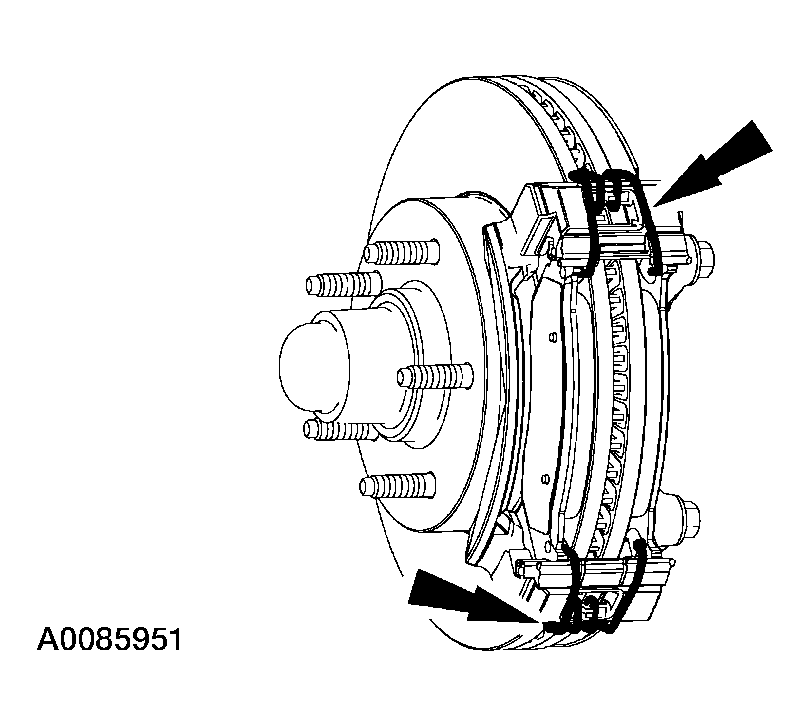

- On E-150, remove the brake pad retaining springs.
- Remove the brake pads from the brake caliper anchor bracket.
CAUTION:
Do not allow the disc brake caliper to hang from the front brake hose. Use wire to support the disc brake caliper from a convenient underbody component.
