Front Brake Caliper: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.
  1. Remove the tire and wheel assembly. For additional information, refer to WHEELS & TIRES .
  2. Release the speed sensor wiring from the front brake hose.
    Fig 1: Locating Speed Sensor Wiring Clips
    G03884638Courtesy of FORD MOTOR CO.
    3. CAUTION: To prevent contamination and reduce air entry, always plug a disconnected front brake hose.
  3. Disconnect the front brake hose from the disc brake caliper.
    1. Remove the flow bolt.
    2. Disconnect the front brake hose.
    3. Remove and discard the copper washers.
      Fig 2: Removing And Discard Copper Washers
      G03884647Courtesy of FORD MOTOR CO.
  4. Remove the two disc brake caliper bolts.

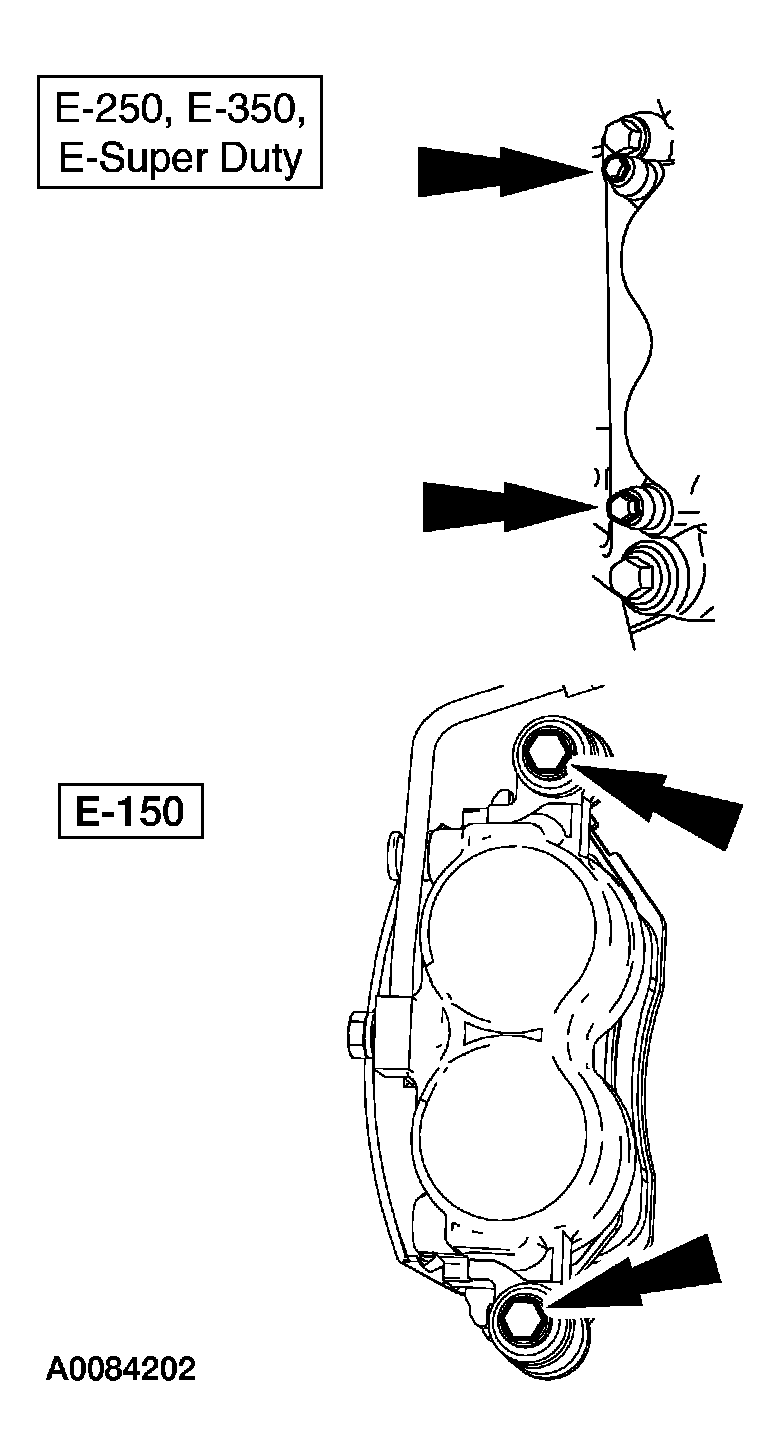

    Fig 3: Removing Two Disc Brake Caliper Bolts
    G03884639Courtesy of FORD MOTOR CO.
  5. Remove the disc brake caliper from the front disc brake caliper anchor plate.
  6. Inspect the disc brake caliper for brake fluid leakage. If the disc brake caliper is leaking, it must be rebuilt or installed new.
