Rear Wheel Bearing and Axle Shaft Oil Seal: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the axle shaft. For additional information, refer to AXLE SHAFT .
    2. NOTE: If the wheel bearing oil seal is leaking, the axle housing vent may be plugged.

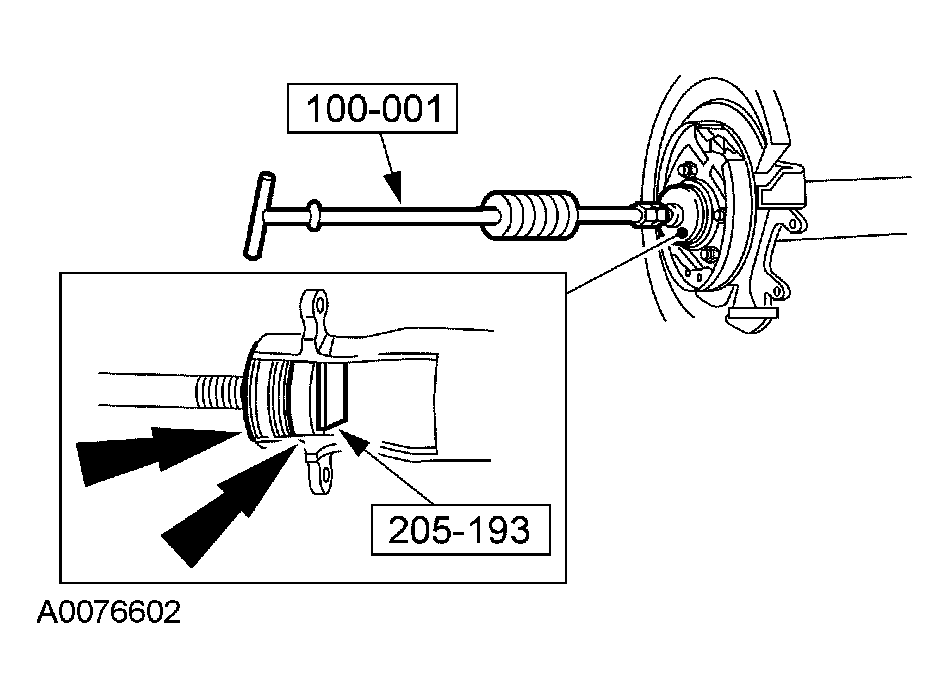

    Fig 1: Removing Rear Wheel Bearing And Wheel Bearing Oil Seal
    G03883959Courtesy of FORD MOTOR CO.
  2. Using the special tools, remove the rear wheel bearing and wheel bearing oil seal.
