Drive Pinion Flange: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the pinion flange splines with rear axle lubricant.
  2. NOTE: Disregard the scribe marks if a new pinion flange is being installed.
    Fig 1: Identifying Index-Mark Pinion Flange In Relation To Drive Pinion
    G03884294Courtesy of FORD MOTOR CO.
  3. Align the pinion flange with the drive pinion shaft.
  4. Using the special tool, install the pinion flange.

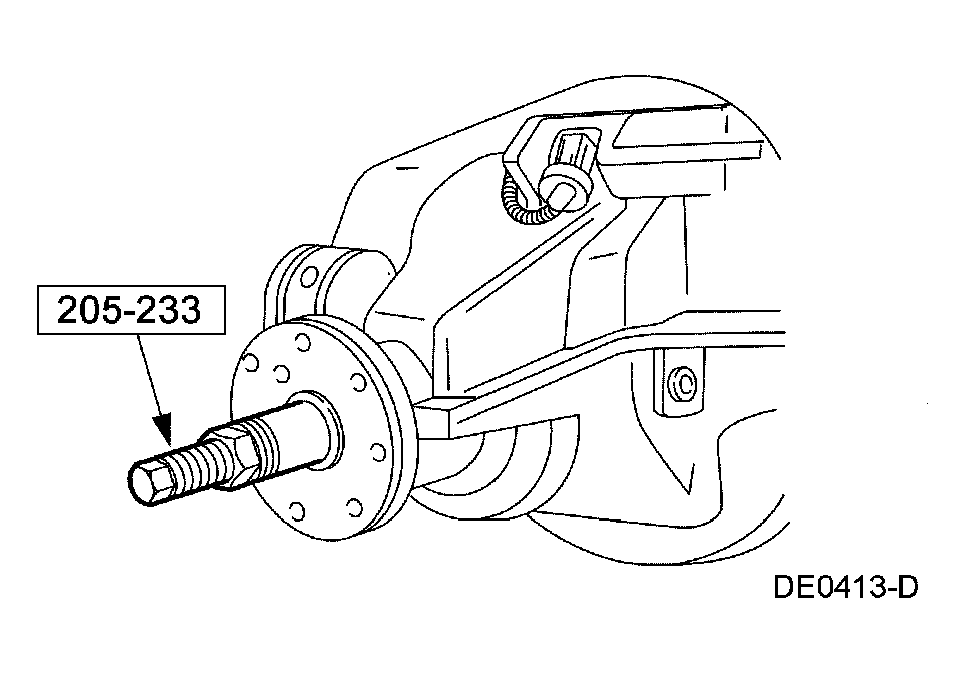

    Fig 2: Installing Pinion Flange
    G03884297Courtesy of FORD MOTOR CO.
  5. Position the new pinion nut.
    Fig 3: Positioning Pinion Nut
    G03884298Courtesy of FORD MOTOR CO.
  6. CAUTION: Under no circumstances is the pinion nut to be backed off to reduce preload. If reduced preload is required, a new collapsible spacer and pinion nut must be installed.
    CAUTION: Remove the special tool while taking readings with the Nm (inch-pound) torque wrench.
  7. Using the special tool to hold the pinion flange, tighten the pinion nut.
    • Rotate the pinion occasionally to make sure the bearings are seating correctly.
    • Install a Nm (inch-pound) torque wrench on the pinion nut.
    • Rotating the pinion through several revolutions, take frequent bearing torque preload readings until the original recorded preload reading is obtained.
    • If the original recorded preload is less than specification, tighten to the appropriate specification for used bearings. If the preload is greater than specification, tighten the nut to the original reading as recorded. For additional information, refer to TORQUE SPECIFICATIONS .
      Fig 4: Holding Pinion Flange
      G03884293Courtesy of FORD MOTOR CO.
  8. Position the driveshaft, and align the marks on the pinion flange.
    Fig 5: Positioning Driveshaft And Align Marks On Pinion Flange
    G03878625Courtesy of FORD MOTOR CO.
  9. CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle pinion flange pilot. To ensure that the yoke seats squarely on the flange, tighten the bolts evenly in a cross pattern as shown in Fig 6.
    Fig 6: Bolt Tightening Pattern - With Torque Specification
    G03878528Courtesy of FORD MOTOR CO.
  10. Install the new bolts.
  11. Install the rear disc brake calipers. For additional information, refer to REAR DISC BRAKE .
