Differential Housing Cover: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to IDENTIFICATION CODES .
  2. Remove the differential housing cover.
    1. Remove the 12 bolts, and drain the lubricant from the rear axle housing.
    2. Remove the differential housing cover.

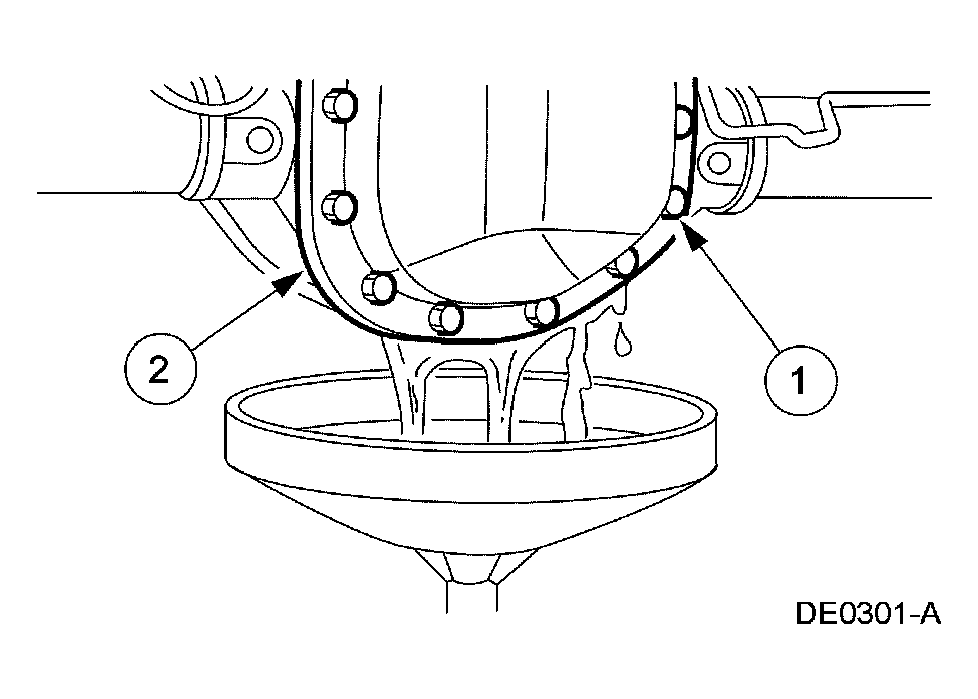

      Fig 1: Removing Differential Housing Cover
      G03884305Courtesy of FORD MOTOR CO.
