Axle Shaft: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the lip of the wheel bearing oil seal with grease.

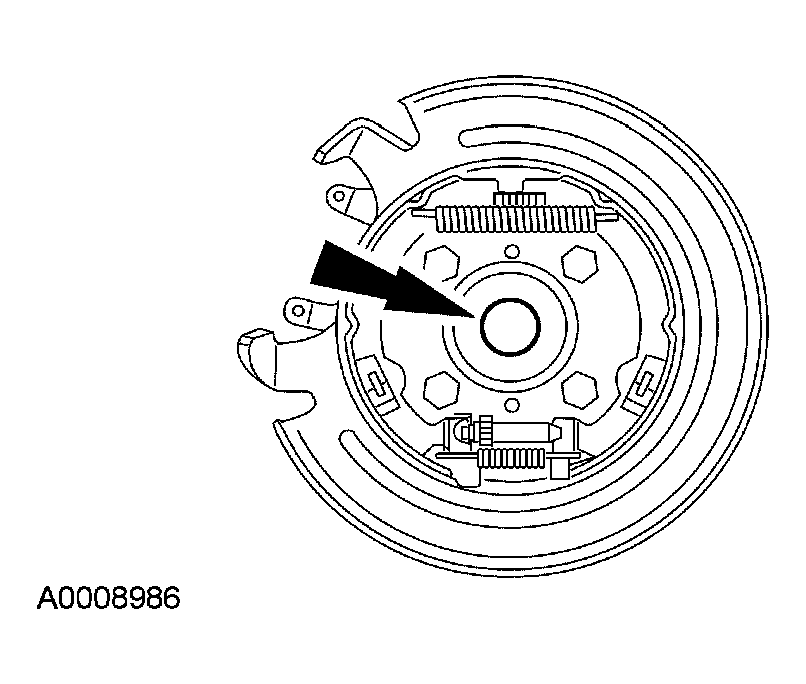

    Fig 1: Lubricating Lip Of Wheel Bearing Oil Seal With Grease
    G03878495Courtesy of FORD MOTOR CO.
    2. CAUTION: Do not damage the wheel bearing oil seal.

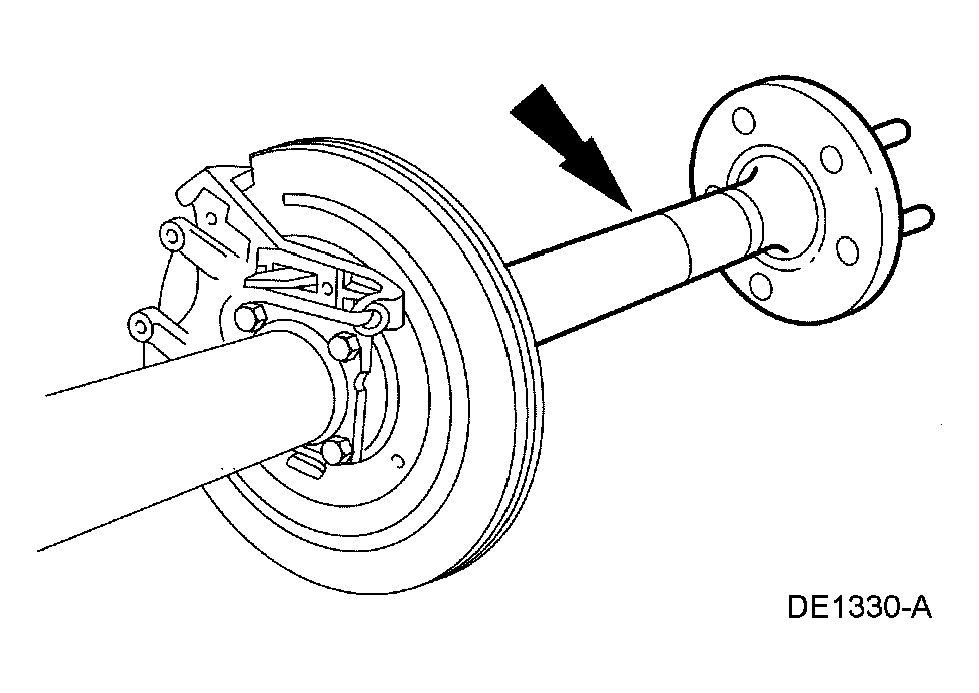

    Fig 2: Identifying Axle Shaft
    G03883950Courtesy of FORD MOTOR CO.
  2. Install the two axle shafts.
    3. CAUTION: Do not damage the rubber O-rings in the U-washer grooves.
  3. Install the U-washers.
    1. Position the two U-washer on the button ends of the axle shafts.
    2. Pull the axle shafts outward.

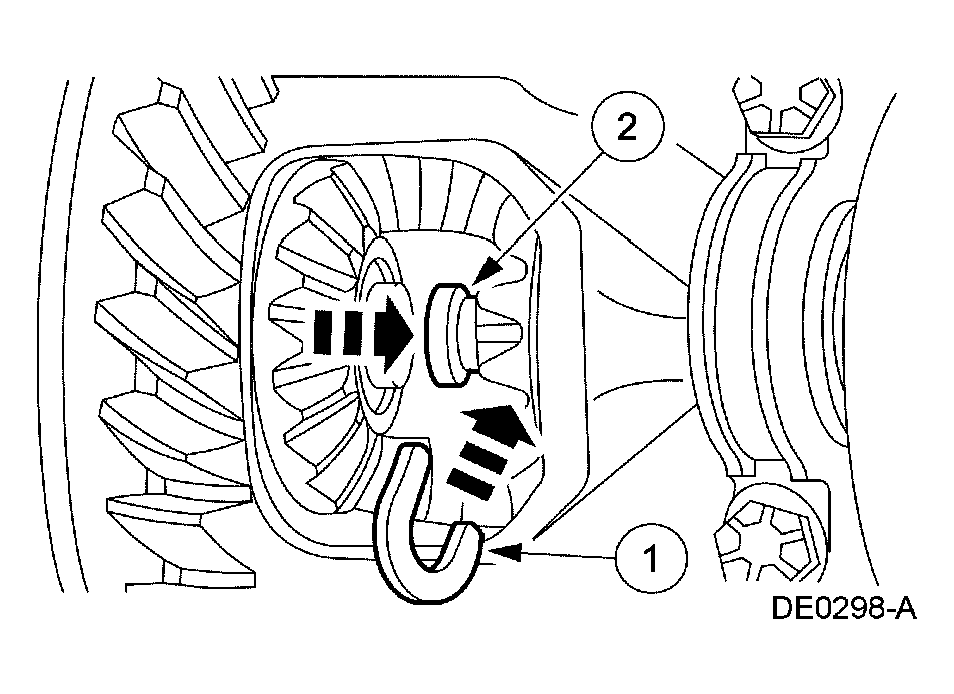

      Fig 3: Installing U-Washers
      G03884276Courtesy of FORD MOTOR CO.
  4. Install the differential pinion shaft.
    1. Align the hole in the differential pinion shaft with the case lock bolt hole.
    2. Install a new lock bolt.

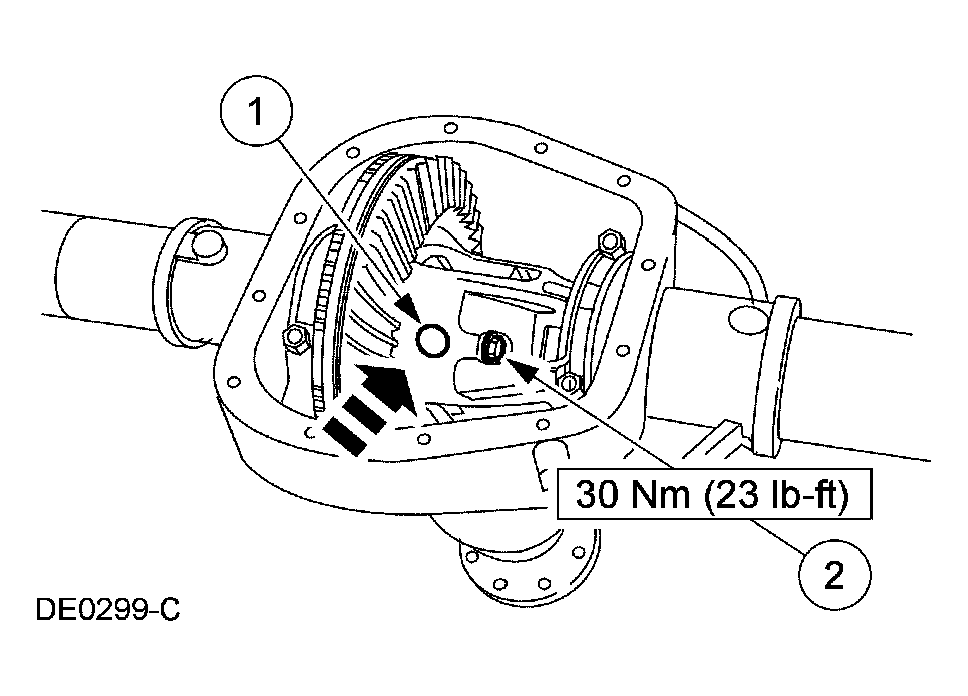

      Fig 4: Installing Differential Pinion Shaft
      G03884277Courtesy of FORD MOTOR CO.
  5. Install the brake discs and anchor pins. For additional information, refer to REAR DISC BRAKE .
  6. Install the rear brake calipers. For additional information, refer to REAR DISC BRAKE .
  7. Install the differential housing cover and fill the rear axle housing with the specified lubricant.
  8. Install the tire and wheel assembly. For additional information, refer to WHEELS & TIRES .
