Differential Bearings: Material

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION

Item Specification
Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XL-75W140-QL (US); CXL-75W140-1L (Canada) WSL-M2C192-A
Additive Friction Modifier XL-3 (US); CXL-3 (Canada) EST-M2C118-A

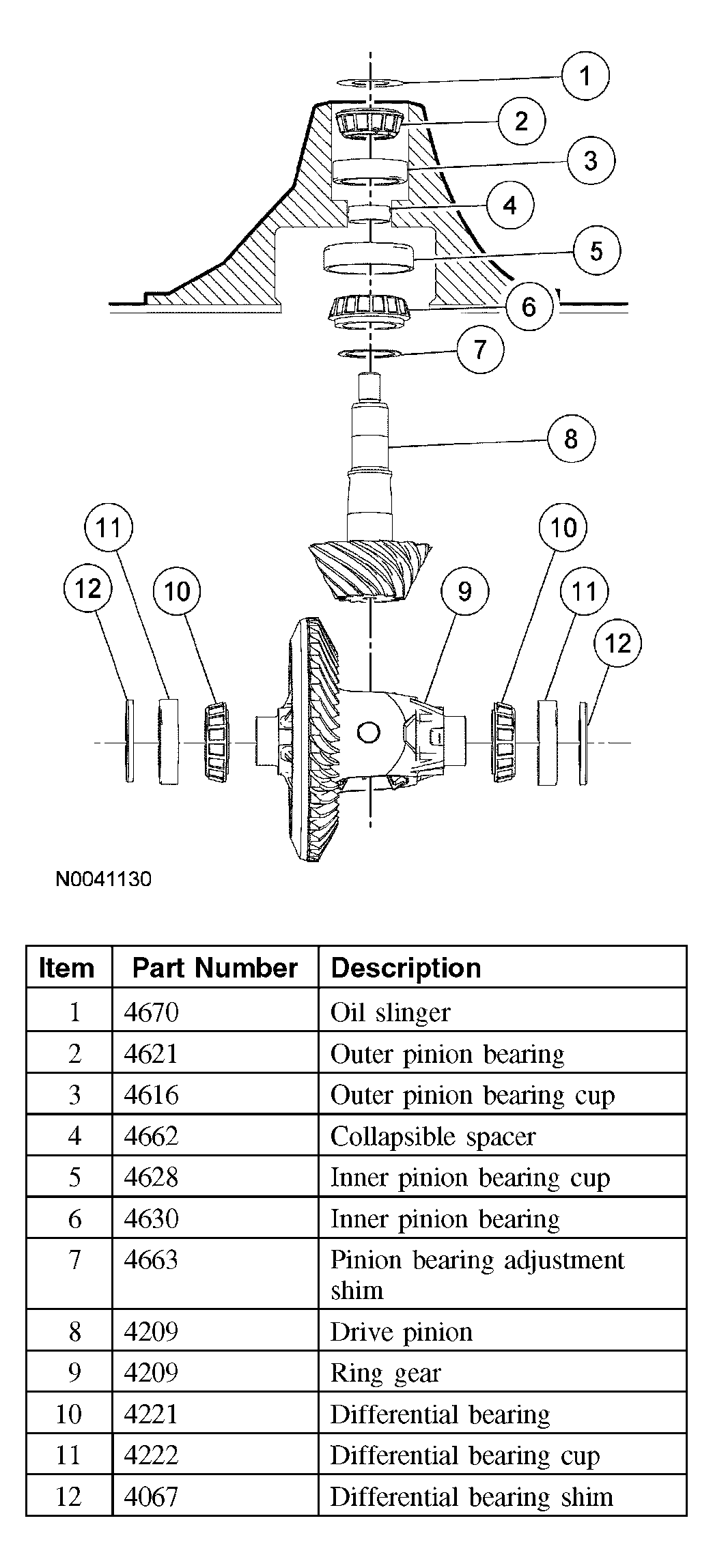

Fig 1: Identifying Differential Bearings Components
G03884148Courtesy of FORD MOTOR CO.
