Axle Shaft: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the rear wheel and tire assembly. For additional information, refer to WHEELS & TIRES .
  3. Remove the differential housing cover and drain the lubricant. For additional information, refer to DIFFERENTIAL HOUSING COVER .
    4. CAUTION: Never allow the rear disc brake caliper to hang from the brake hose. Provide suitable support.
  4. Remove the brake caliper. For additional information, refer to REAR DISC BRAKE
  5. Remove the rear disc anchor plate and disc. For additional information, refer to REAR DISC BRAKE .
  6. Remove the differential pinion shaft.
    1. Remove and discard the differential pinion shaft lock bolt.
    2. Remove the differential pinion shaft.

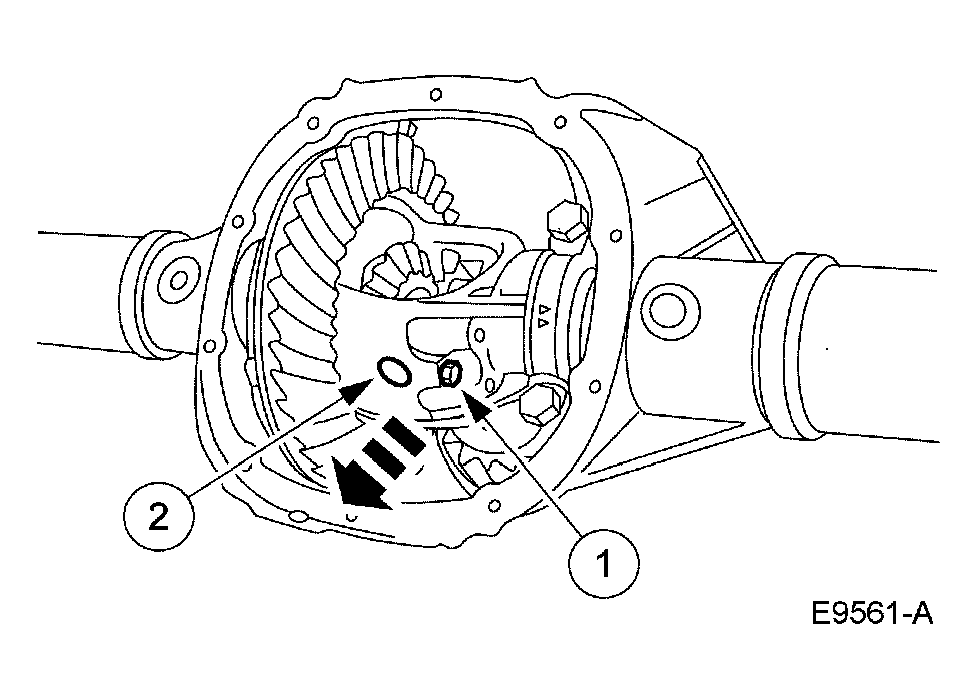

      Fig 1: Removing Differential Pinion Shaft
      G03883948Courtesy of FORD MOTOR CO.
    7. CAUTION: Do not damage the rubber O-ring in the axle shaft groove.
  7. Remove the U-washer.
    1. Push the axle shaft inward.
    2. Remove the U-washer.

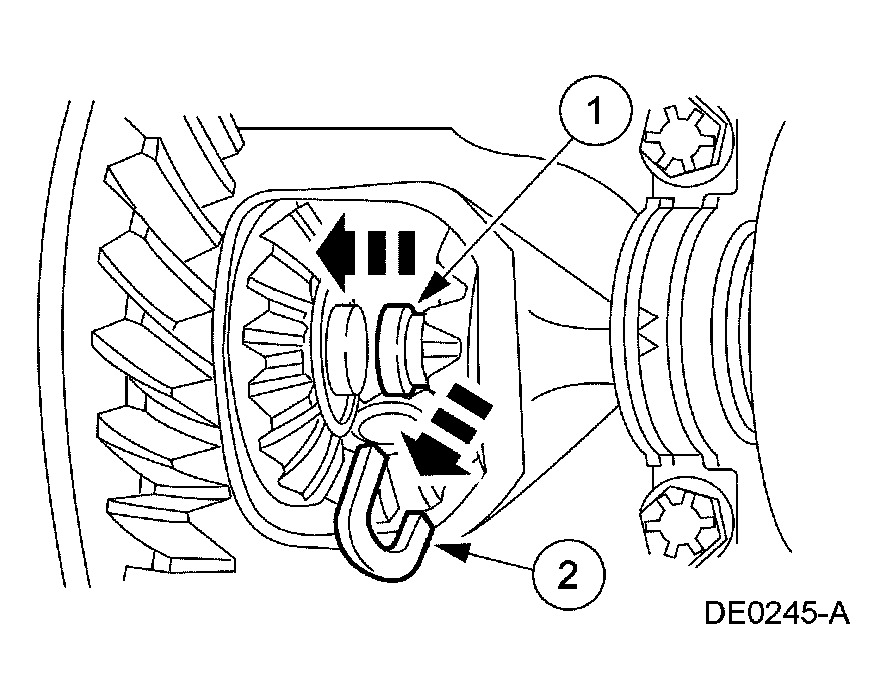

      Fig 2: Removing U-Washer
      G03883949Courtesy of FORD MOTOR CO.
    8. CAUTION: Do not damage the wheel bearing oil seal.
    Fig 3: Identifying Axle Shaft
    G03883950Courtesy of FORD MOTOR CO.
  8. Remove the axle shaft.
