Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the axle shaft bolts.
- Place a drain pan under the rear hub.

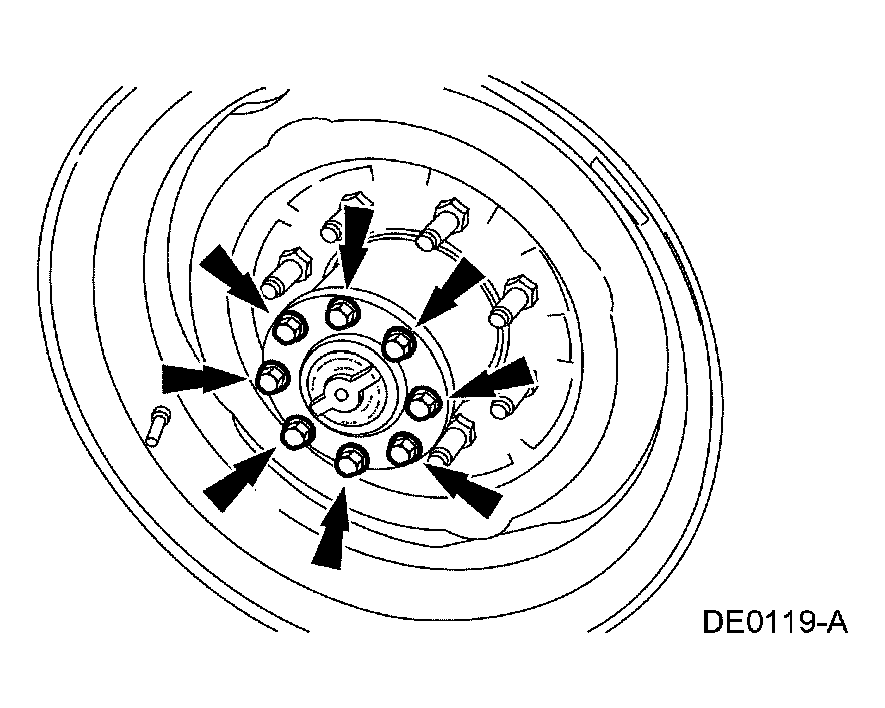

  Fig 1: Removing Axle Shaft Bolts
  Courtesy of FORD MOTOR CO.
Remove the axle shaft.

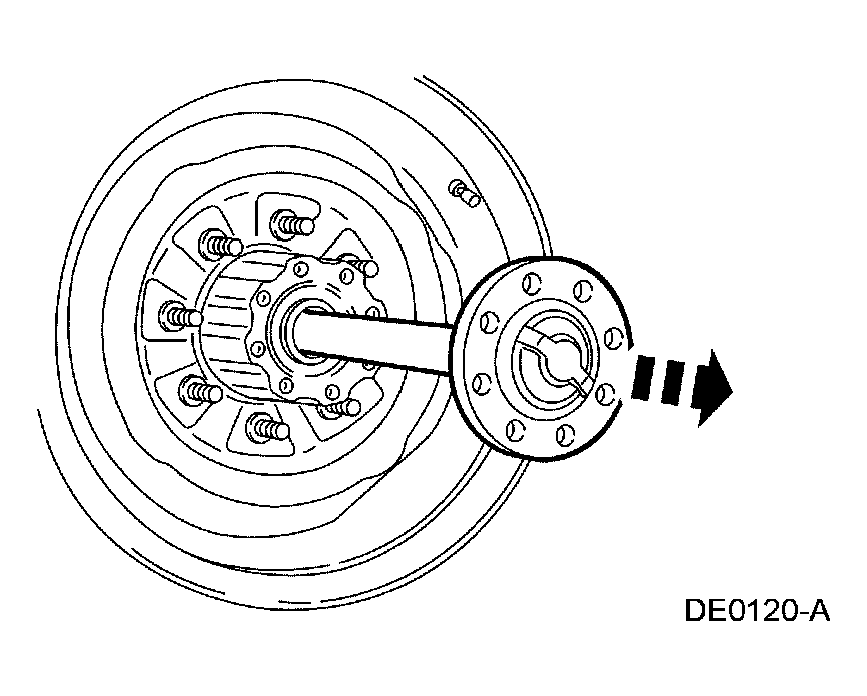

Fig 2: Removing Axle Shaft
Courtesy of FORD MOTOR CO.
Inspect the following components:
- The rear axle shaft gasket for damage, install new gasket as necessary.
- The axle shaft for cracks around the bolt holes.

  Fig 3: Inspecting Rear Axle Shaft Gasket
  Courtesy of FORD MOTOR CO.

NOTE: If the original bolts are being reused, apply a suitable thread adhesive to the bolts.

NOTE: Torque specifications are the same for SRW or DRW vehicles.

To install, reverse the removal procedure.
- Tighten to 133 Nm (98 lb-ft).

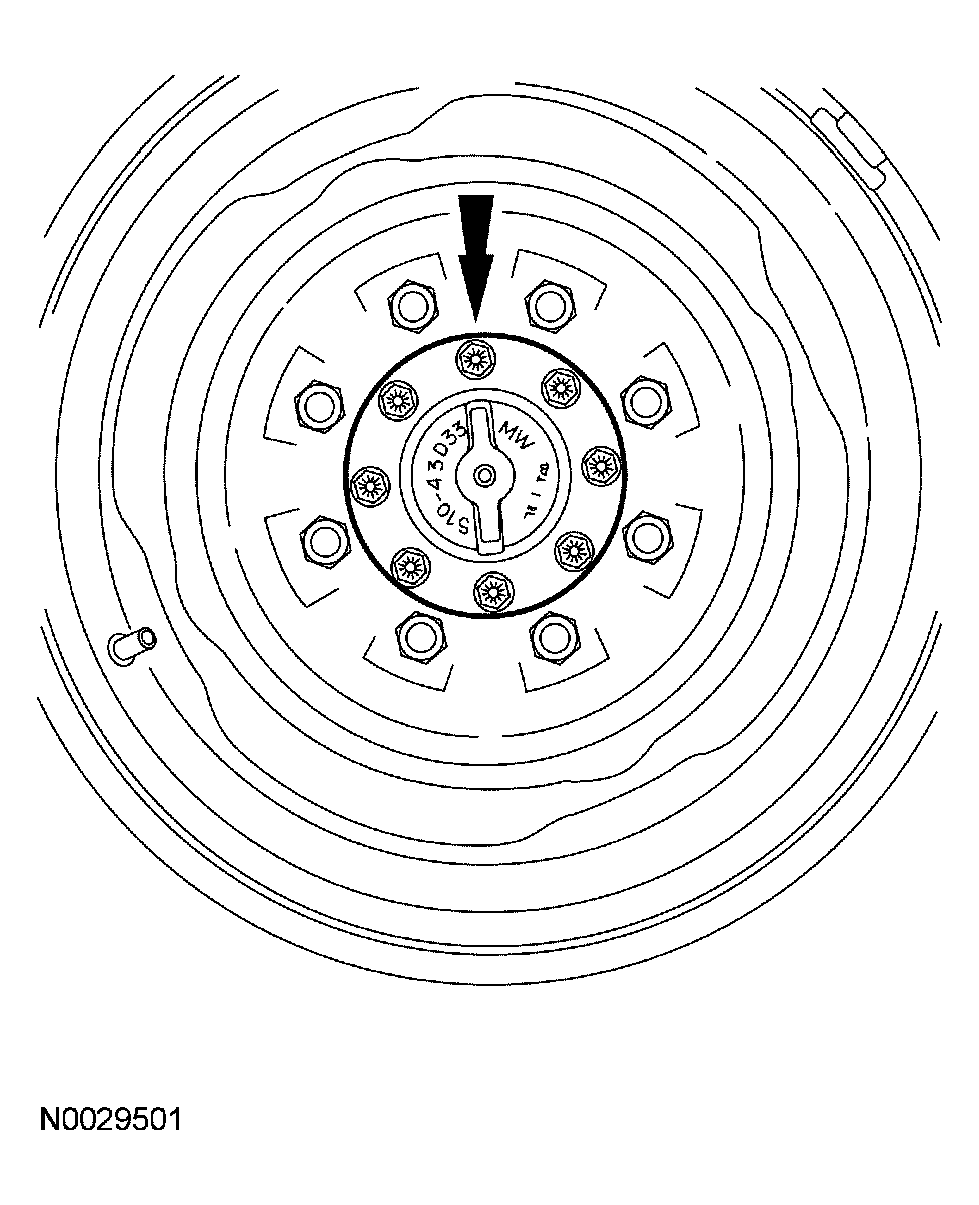

  Fig 4: Installing Axle Shaft Bolts
  Courtesy of FORD MOTOR CO.
