Driveshaft Universal Joint - Single Cardan, Slip Yoke: Disassembly

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL

G03904312
 Installer/Remover, C-Frame and Screw 205-086 (T74P-4635-C)

    Initial disassembly

    CAUTION: Do not, under any circumstance, clamp the shaft in the jaws of a vise or similar holding fixture. Denting or localizing fracture can result, causing shaft failure during vehicle operation.
  1. Place the shaft on a suitable workbench. Do not damage the tube.
  2. Remove and discard the 2 snap rings.
    Fig 1: Locating Snap Ring
    G03883359Courtesy of FORD MOTOR CO.
  3. Clamp the special tool in a vise.
    Fig 2: Clamping Special Tool In Vise
    G03883356Courtesy of FORD MOTOR CO.

    4. Bearing cup removal

    NOTE: If necessary, use a pair of pliers to remove a bearing cup that fails to press out all the way.
  4. Remove the bearing cups and the slip-yoke.
    1. Position the slip-yoke in the special tool.
    2. Press out a bearing cup.
    3. Rotate the driveshaft slip-yoke 180 degrees.
    4. Press on the spider to remove the remaining bearing cup and the U-joint.

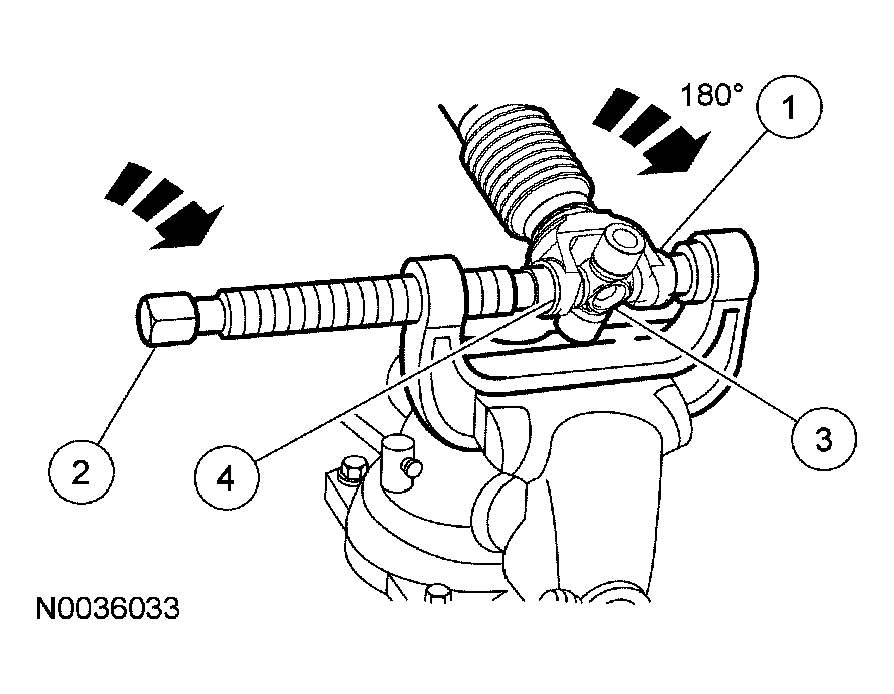

      Fig 3: Removing Remaining Bearing Cup And U-Joint
      G03883357Courtesy of FORD MOTOR CO.
  5. Clean the driveshaft slip-yoke.
    • Inspect the driveshaft slip-yoke.
    • Install a new yoke as necessary.
